Item #1336889 Model #Vizi Hex Wash 7

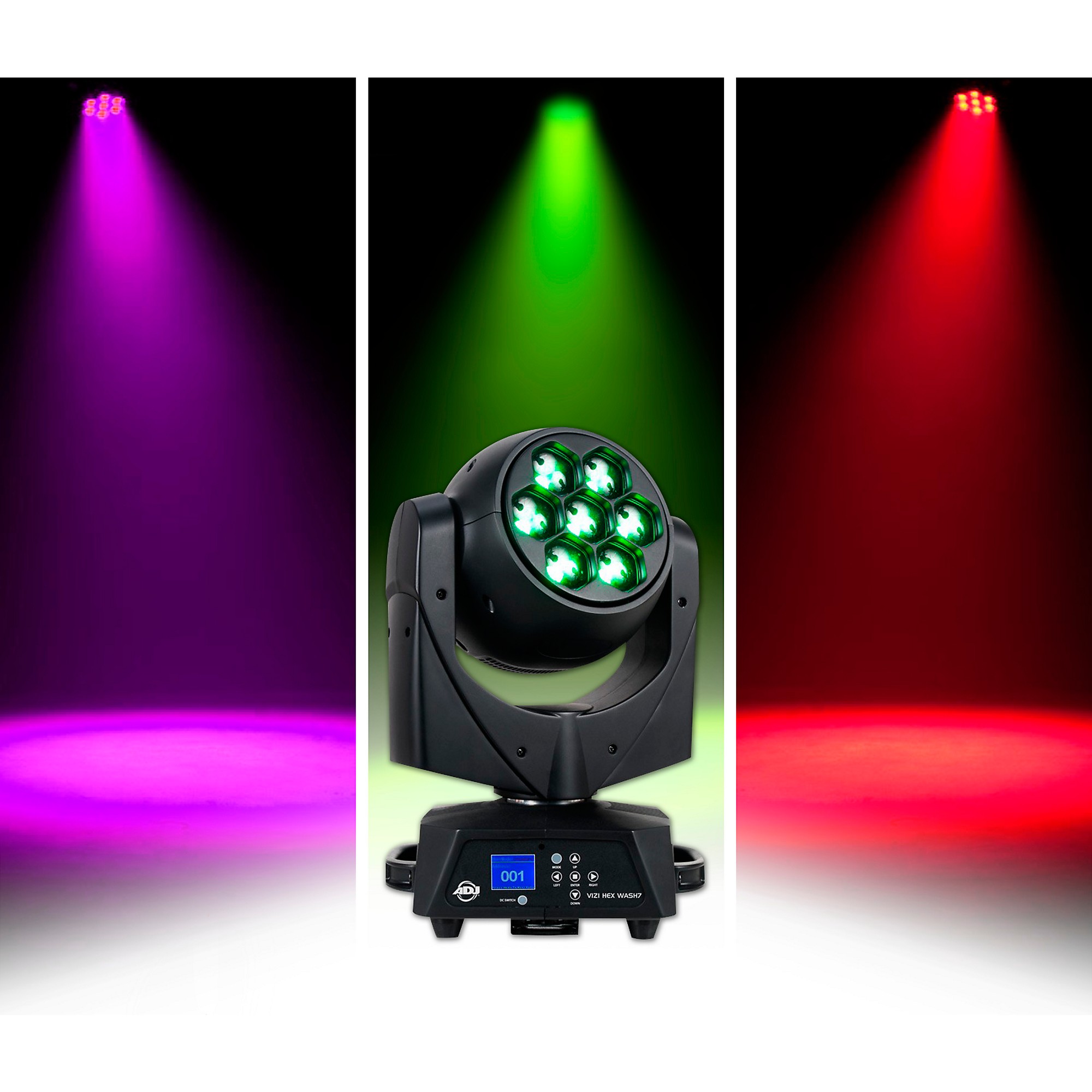

American DJ Vizi Hex Wash7 RGBAW+UV LED Moving Head Wash Beam with Zoom Standard

Sorry, this item is not available.

Built-in WiFLY for wireless DMX operation.

Fitted with seven 15W HEX LEDs, the Vizi Hex Wash7 from American DJ is a powerful fixture offering a total output of 105W. Its 6-in-1 LEDs combine red, green, blue, white, amber and UV light sources to offer unrivaled color mixing potential. It also features 64 built-in Color Macros to allow easy selection of popular hues either via DMX or directly from its LCD menu.

The fixture’s motorized zoom function allows its beam angle to be changed remotely to anything between 5-degrees and 55-degrees. At its narrowest setting the unit is ideal for mid-air beam effects, with its richly colored output focused tightly into a shaft of light that looks very impressive in a hazy atmosphere. Meanwhile, at its widest zoom setting, the fixture generates a broad wash that is ideal for illuminating large areas of a stage or venue.

Offering a 270° tilt range and a huge 630° of pan movement, the Vizi Hex Wash7’s beam has a very wide field of movement. Its speedy stepper motors allow for very fast sweeps, while 16-bit fine pan and tilt control facilitate smooth slow movements and precise positioning. Both pan and tilt can also be inverted, to create contrasting movements when fixtures are linked together or to synchronize the movement of multiple units when some are floor standing while others are hanging downwards.

0–100% digital dimming means that the unit’s light output can be reduced when necessary and also allows for smooth transitions between lighting scenes. A choice of 5 different dimmer curves is offered, allowing for use in a variety of diverse situations. Adding to its versatility, the fixture also features electronic strobe and pulse effects, which can be set to any speed.

A professional-caliber fixture, the Vizi Hex Wash7 is fitted with locking powerCON mains input and output sockets. Thanks to its efficient LED light-source, the Vizi Hex Wash7 has a maximum power draw of just 137W, meaning that the power supply for multiple fixtures can be linked together to minimize cable runs. To offer maximum flexibility, the unit is also fitted with both 3-pin and 5-pin DMX XLR sockets, meaning that it can easily be incorporated into any existing lighting setup. Plus, the Vizi Hex Wash7 is equiped with ADJ's on-board WiFLY EXR Wireless DMX that can transmit a wireless DMX signal up to 2,500 ft.

The Vizi Hex Wash7 features a user-friendly LCD display with push buttons, making mode selection and DMX addressing a snap. The LCD menu can also be inverted to allow for easy use when the fixture is installed hanging downwards from a lighting rig. A choice of 3 different DMX channel modes is offered, while the Program Mode allows simple Scenes to be created and recalled directly from the LCD screen.

Fitted with large rubber feat, the Vizi Hex Wash7 can be placed directly onto a stage or riser for upwards projection. It is also supplied with an Omega bracket to allow truss mounting in any orientation. The unit’s base is fitted with large robust handles that can be used to conveniently carry and lift the fixture for rigging purposes.

  • Type: Wash
  • Light source: LED
  • Color: RGBAW+UV
  • Beam angle: 5–55°
  • Moving head: Yes
  • Power source: AC
  • Battery type: Not applicable
  • DMX channels: Not specified
  • DMX connector: 3- and 5-pin XLR
  • Wi-Fi: Yes
Onboard Features
  • Sound activated: Not specified
  • AC Power: Yes
  • Wireless control: Yes
  • Dimming: Yes
  • App control: No
  • Gobos included: No
  • Automatic programs: Yes
  • Width: 8 in.
  • Height: 15.75 in.
  • Depth: 11.75
  • Weight: 19 lb.
  • Remote included: No
  • Carrying case: No
  • Stand included: No


  • Moving-head LED wash fixture for worldwide professional touring use
  • Zooming optics with adjustable beam angle from 5–55°
  • Built-in WiFLY transceiver for wireless DMX operation
  • Built-in automatic program operation modes
  • Powered by seven 15W RGBAW+UV LEDs
