4 in/6 out MIDI interface with sync.

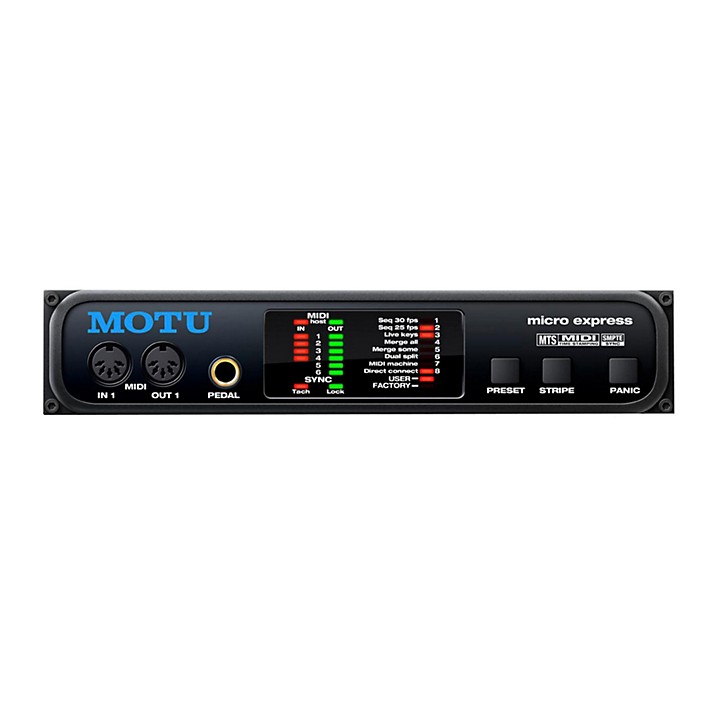

The MOTU Micro Express is a mini version of the MIDI Express XT with many of the same features in a smaller, even more affordable half-rack unit with 4 inputs and 6 outputs.
Features
- MIDI interface for Macintosh and Windows
- Can connect both a Mac and a PC at the same time
- Standalone MIDI patchbay/merger/processor
- SMPTE tape sync in all formats
- 4 x 6 MIDI merge matrix - connects any device to any other
- Front panel presets for plug-and-play convenience
- 4 independent MIDI IN
- 6 independent MIDI OUT (9 actual MIDI OUT ports)
- 96 MIDI channels
- Supports MIDI Machine Control transport messages
- Pedal input for momentary foot switch
- Audio click input - converts audio click into MIDI data
- 16 presets with 8 programmable, battery-backed memories
- Recalls setups via MIDI patch change
- Includes software for Macintosh and Windows
- Internal power supply
- MIDI processing:
- Merge any inputs to any outputs
- Route any inputs to any outputs
- Mute any MIDI data on any cable
- Re-channelize on input and output
- Synchronization:
- SMPTE time code (LTC) generator and reader
- Converts LTC to MIDI Time Code (MTC) to sync a Mac, PC or any other devices to SMPTE time code
- Converts all SMPTE frame rates (24, 25, 29.97 drop, 29.97 non-drop, 30)
- Stripes SMPTE time code in all frame rates (24, 25, 29.97 drop, 29.97 non-drop, 30)
- Converts MIDI Time Code to SMPTE time code
- SMPTE "Jam Sync" with adjustable freewheeling for dropout-free sync
- Supports MIDI Machine Control - serves as either an MMC master or slave, distributes MMC transport commands to all other MMC devices
