48V microphone preamps and line inputs, and Bluetooth stereo audio input with dual speaker pairing.

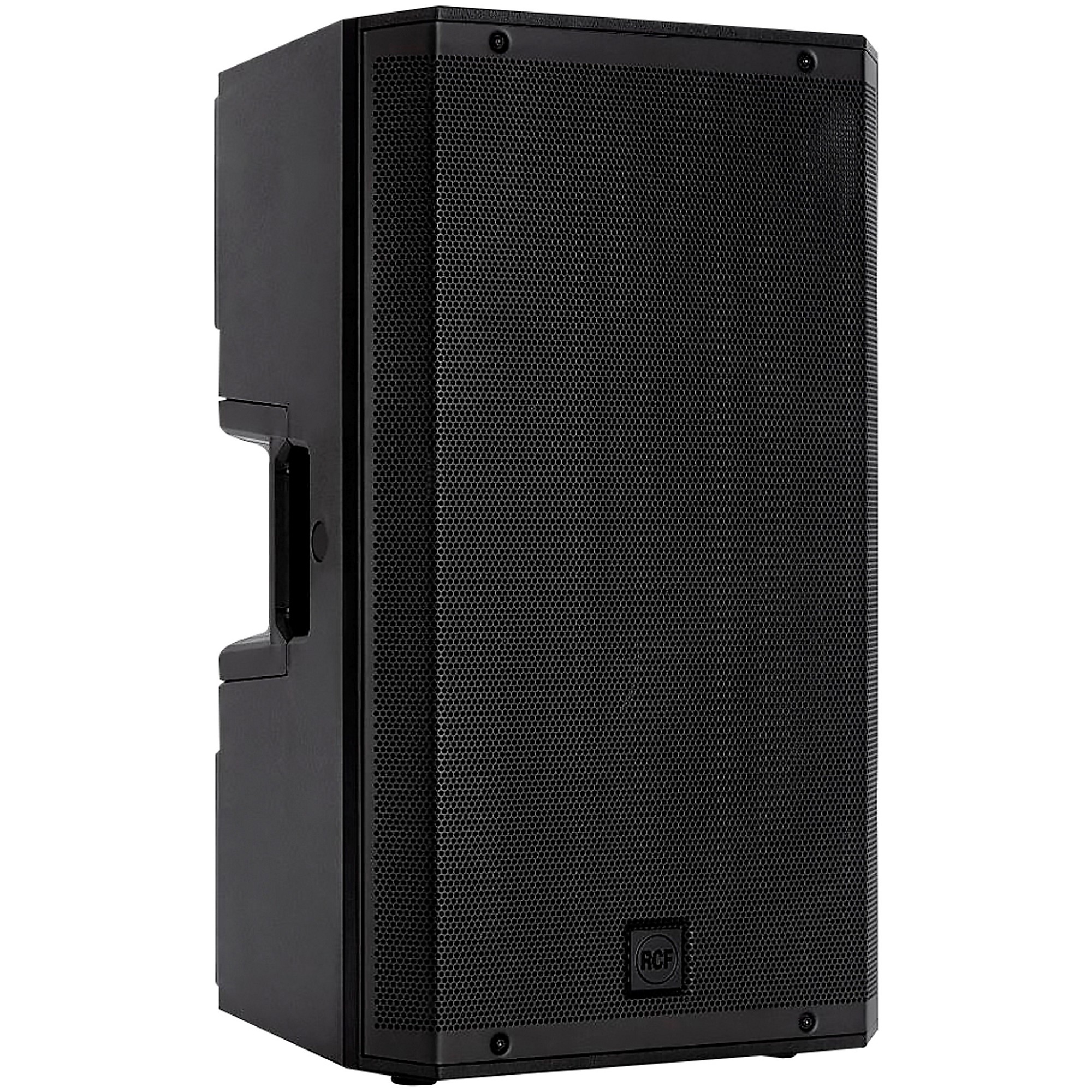

The RCF ART 915-AX is a top-notch solution for any audio application, featuring 48V microphone preamps and line inputs, an internal 6-channel digital mixer with advanced DSP, Bluetooth stereo audio input, with dual speaker pairing option. The combination of a 1.75" compression driver, 15" woofer, and two-channel 2100W amplifier, produces 100° x 60° constant directivity coverage for the listening area with up to 131 dB SPL, distortion-free sound. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.
Specifications
- Acoustical Specifications
- Frequency Response: 45 Hz ÷ 20000 Hz
- Max SPL @ 1m: 131 dB
- Horizontal coverage angle: 100°
- Vertical coverage angle: 60°
- Transducers
- Compression Driver: 1 x 1.0'', 1.75'' v.c
- Woofer: 15'', 2.5'' v.c
- Input/Output Section
- Input signal: bal/unbal
- Input connectors: Combo XLR/Jack
- Output connectors: XLR
- Processor Section
- Crossover Frequencies: 1600Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Color touch panel, data entry/volume encoder, dedicated App for iOS and Android
- Power Section
- Total Power:
- 2100 W Peak, 1050 W RMS
- High frequencies: 700 W Peak, 350 W RMS
- Low frequencies: 1400 W Peak, 700 W RMS
- Cooling: Convection
- Connections: VDE
- Electronic Specifications
- Frequency Response: 20 Hz ÷ 20 Hz
- THD+N, 20dB gain, 0dBu out: 0.005% A-Weighted
- Processing
- Processing Channels: 6
- Signal Processing: 24 Bit
- A/D-D/A conversion: 32 Bit @ 48.0 kHz
- Dynamic range: 110
- Inputs
- Mic: 2
- Remote Controlled Storable Gain: Yes
- Gain Range: 0 dB ÷ 42 dB
- Input Noise Level: -114 dBu A-Weighted
- Mic Inputs Impedance: 6 kohm
- Low Cut: 20 Hz ÷ 400 Hz
- Phantom Power +48V: Yes
- Mono Line: 2
- Gain Selection: 0 dB ÷ 22 dB
- Line Input Impedance: 21 kohm
- A/D Dynamic range: 114 dB
- Stereo Line: 1
- Gain Selection: 0 dB ÷ 10 dB
- Stereo Line Input Impedance (kOhm): 13 kohm
- Outputs
- Main MIX: 1
- Outputs Specifications
- Main Out Impedance: 150 ohm
- Main Out Level: 22 dBu
- D/A Dynamic Range: 114 dB
- Compressors
- RCF Compressors: Compressors on MIC/LINE CH1 & CH2 inputs
- EQ
- Input Channels EQ: 2 Shelving 1
- Description: 3 Band EQ: High and Low band shelving, MID band peak on IN, 5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on Amplifier and MAIN output
- Internal Effects
- Send Effects: 1
- Mastering Processors
- Main OUT type: MIX OUT, CROSSOVER OUT with RCF SUBWOOFERS presets, STEREO OUTPUT, CH1 LINK OUT.
- Standard Compliance
- Safety agency: CE compliant
Features
- Built-in 6-channel Digital Mixer
- Advanced User Interface w/ touch panel and remote control
- 1.75" Compression Driver and 15" Woofer
- Up to 131 dB Sound Pressure Level
- 2100W Class-D Bi-Amplification
- Dual combo preamp with 48V Power and Mini-jack stereo line input
- Bluetooth stereo audio input, with dual speaker pairing option
- True Resistive Waveguide, FiRPHASE, and Bass Motion Control
