- Item # 1098356
- Model # PLATINUM SPOT 5R

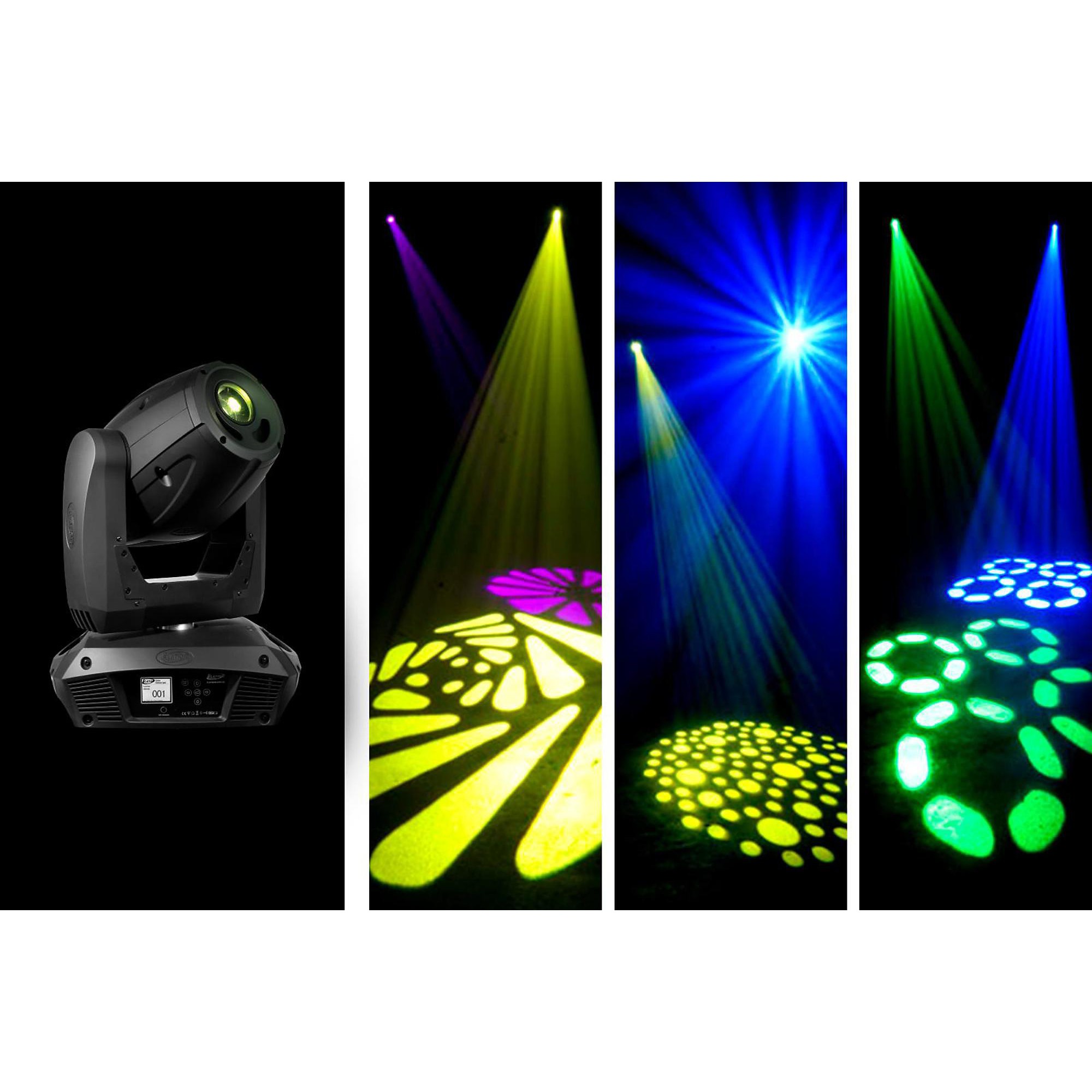

The Platinum Spot 5R from Elation Lighting is comparable to the Design 575 fixture with double the lamp life, and double the output of the Design 250 Pro fixture. It does this all in a super-compact c… Learn More
In Stock & Ready to Ship
Ship to Store
2-7 business days
22 gobos and 8 dichroic colors with a 3-facet prism, and variable frost filter for colorful fun.
The Platinum Spot 5R from Elation Lighting is comparable to the Design 575 fixture with double the lamp life, and double the output of the Design 250 Pro fixture. It does this all in a super-compact casing that is half the size of the 575 fixture and a 3rd smaller than the 250, as well as 1/2 the weight of the 250. The Platinum Spot 5R has increased speed on all motors and uses less than the power consumption of a 575. It has superior optics providing a flat, even light field and improved output. Thanks to hybrid technology you can use it as a spot or wash. With 8 dichroic colors ad 22 gobos (8 rotating, 14 static), a 3-facet rotating prism, motorized iris, and variable frost filter, it provides you with an excellent palette of saturated colors-especially red. The Platinum Spot 5R features a Philips MSD Platinum 5R lamp with a less than 20 second lamp strike.
- 8 dichroic colors
- 22 gobos
- 8 rotating replaceable indexing gobos
- 14 static gobos
- Gobo size: 14mm od / 8mm id
- 3-facet rotating prism
- Motorized iris
- Variable frost filter (Hybrid effect for wash)
- 16 beam angle
- Motorized focus
- Variable speed shutter / strobe
- Mechanical dimmer: 0-100%
- Software update via SUP (E-Loader) box
- Pan / Tilt: 540/630 x 265
- Multi-voltage electronic power supply
- 350W MAX / 120v-240V 50/60Hz
- 17 channels DMX (standard mode)
- 3-pin & 5-pin DMX
American DJ Platinum Spot 5R
- 3,462 Lux / 322 fc @ 16'
- CCT = 7500k
- Lamp: MSD Platinum 5R Philips 2,000hr 7,950lux 8,000k CRI 75
- Weight: 28.6lb.
- LxWxH: 14.25" X 13.25" X 17.75"
