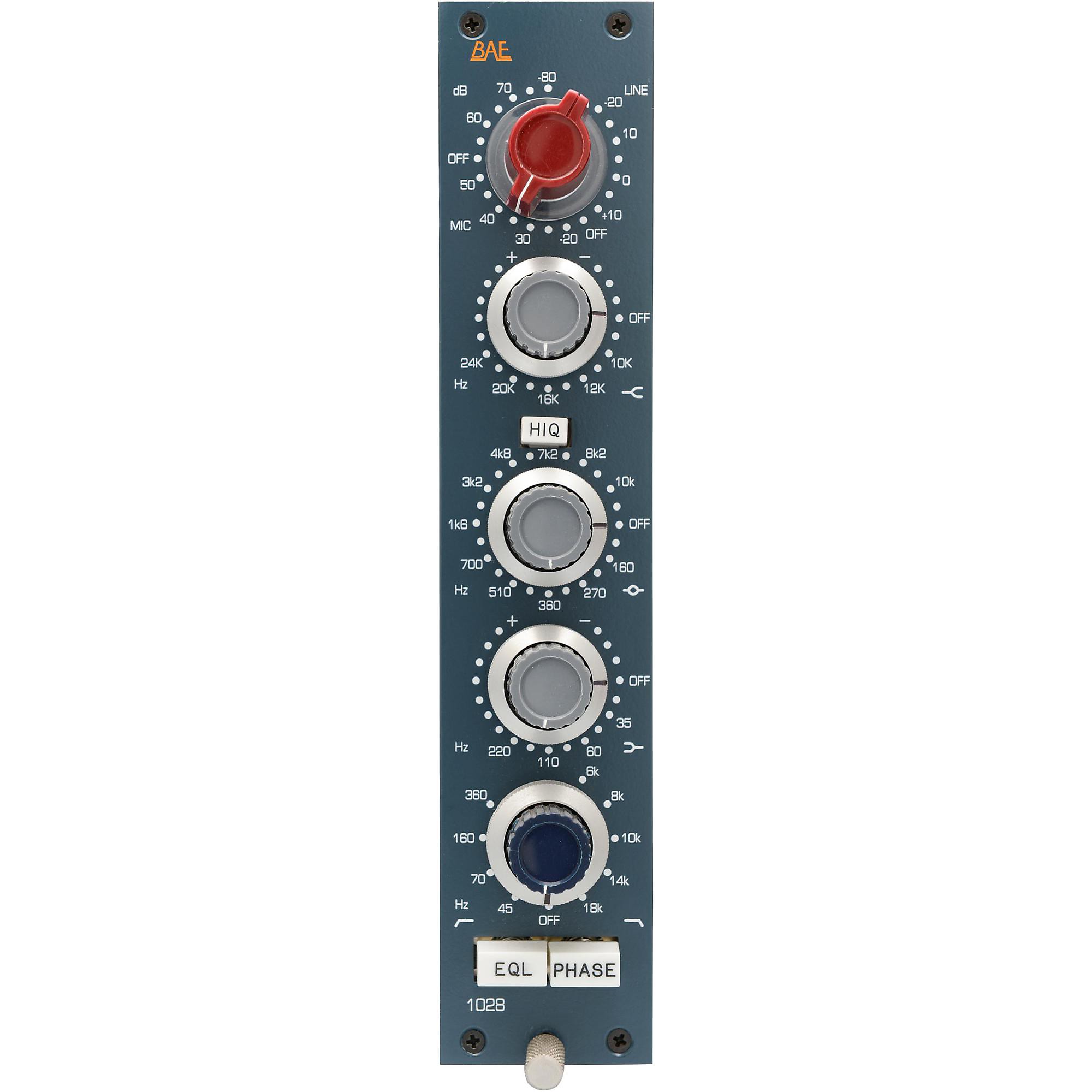

BAE 1028 10-Series Module Standard

Sorry, this item is not available.
See other 500 Series Gear

Neve-inspired 10-series preamp.

BAE Audio is known for manufacturing high-end microphone preamps and EQs that are faithful to original vintage designs from the 70s and earlier. BAE prides itself on using high-end transformers for their products, and everything is kept as close to the vintage philosophy as possible. Not only does BAE choose the highest quality components, they also insist that everything is hand-wired/soldered using discreet electronics and not economized on a circuit board.

The 1028 is completely hand-wired using Carnhill (St. Ives) transformers. It has the exact same mic/line preamp as the 1073, but with significantly more frequencies in the mid and hi sections. Aside from simply offering more frequency settings to play with, these expanded EQ sections also allow you to play the mid bell curve directly against the high and low shelves where they overlap. This capability opens the tone shaping possibilities in very interesting and musical ways. The 1028 includes the same low pass filter as the 1084, giving it 28 frequencies.
Specifications
Frequency Response
  • 10Hz to -3dB at 55kHz
3 Band EQ
  • HF: +/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz
  • LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
  • MF: +/-18dB +/-12dB or +/-18dB peaking with switchable selectable centre frequencies of 160Hz, 270Hz, 360Hz, 510Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz, 8.2kHz, 10kHz
High Pass Filter
  • 45Hz, 70Hz, 160Hz & 360Hz
Low Pass Filter
  • 18dB per octave slope, switchable between 6kHz, 8kHz, 10kHz, 14kHz & 18kHz
Mic Input Impedance
  • 1200/300 ohms
Line Input Impedance
  • 10k ohms
DI Input Impedance
  • 150k ohms
Output Impedance
  • 65 ohms
Common Mode Rejection Ratio
  • 100dB min @ 60Hz
Maximum Output Level
  • +27.4 dBu @ 600 ohm
Power Requirements
  • 115/230 VAC, 28W
Gain dB
  • 0 to 80 dB
Equivalent Input Noise
  • -110 dBu; Unweighted 300kHz Bandwidth
Phase Button
  • 180 degrees

Features

  • Hand wired using Carnhill (St. Ives) transformers
  • High Frequency: +/-16dB shelving with selectable frequencies
  • Low Frequency: +/-16dB shelving with selectable frequencies
  • Mid Range: +/-12dB or +/-18dB peaking with switchable selectable centre frequencies
  • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz
  • Low Pass Filter: 18dB per octave slope, switchable between 6kHz, 8kHz, 10kHz, 14kHz, & 18kHz
  • EQ Button: Switches the equaliser on or off
  • Phase Button: 180
