Item #1159253 Model #1066DMOD

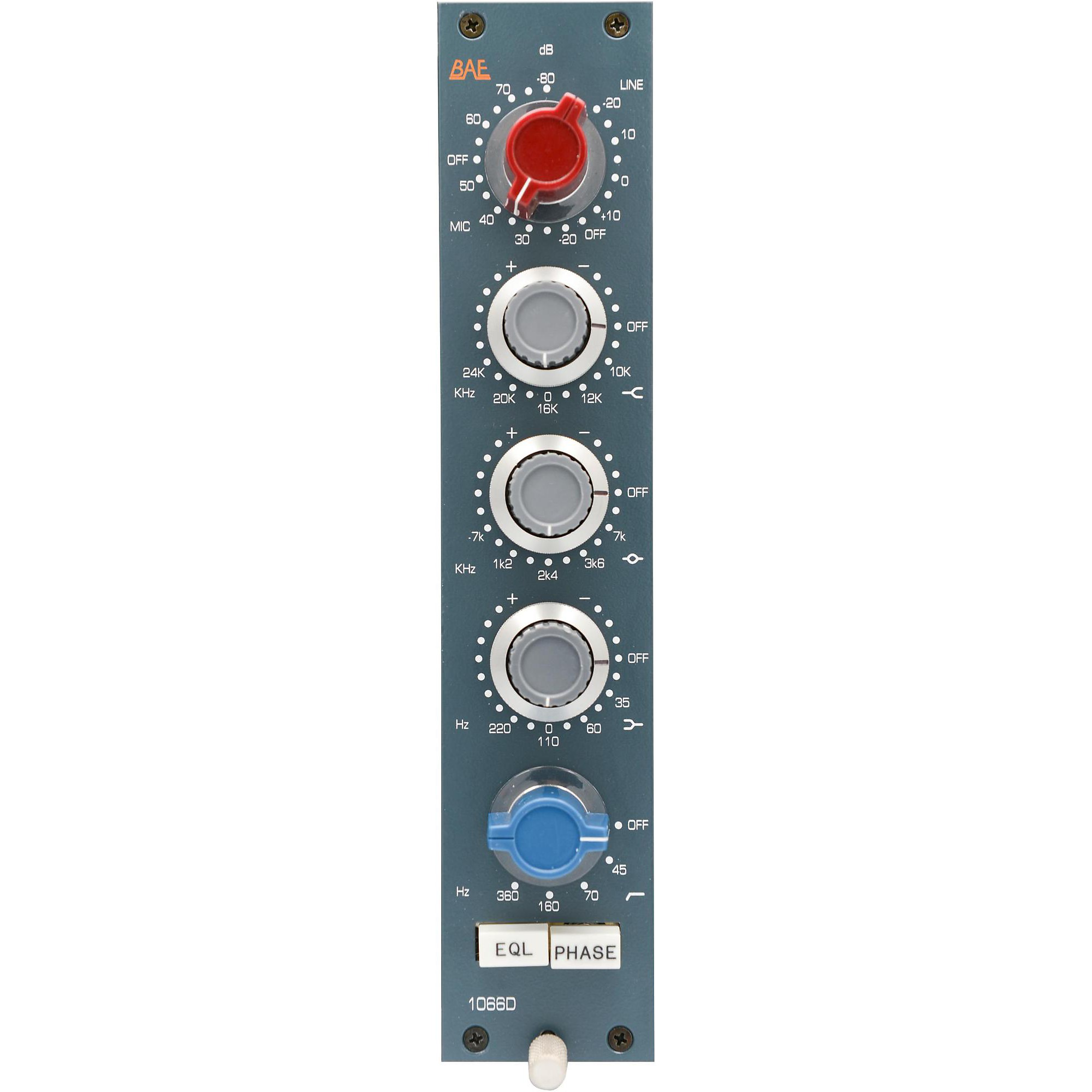

BAE 1066D 10-Series Module Standard

Sorry, this item is not available.
See other 500 Series Gear

Neve-inspired 10-series preamp.

BAE Audio is known for manufacturing high-end microphone preamps and EQs that are faithful to original vintage designs from the 70s and earlier. BAE prides itself on using high-end transformers for their products, and everything is kept as close to the vintage philosophy as possible. Not only does BAE choose the highest quality components, they also insist that everything is hand-wired/soldered using discreet electronics and not economized on a circuit board.

The 1066D is completely hand-wired using Carnhill (St. Ives) transformers and has the same mic-line pre-amp as the 1073, with the exception that the 1066D adds a few different frequencies to your pallet.

This unit is popular among guitarists for having a unique mid-range. The original 1066 only had a 10k shelving but this unit offers additional frequencies: 10k Hz,12k Hz,16k Hz, 20k Hz and 24k Hz.
Frequency Response
  • 10Hz to -3dB at 55kHz
    Band EQ
    • HF:+/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz
    • LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
    • MF: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz
    High Pass Filter
    • 45Hz, 70Hz, 160Hz & 360Hz
    Mic Input Impedance
    • 1200/300 ohms
    Line Input Impedance
    • 10k ohms
    DI Input Impedance
    • 150k ohms
    Output Impedance
    • 65 ohms
    Common Mode Rejection Ratio
    • 100dB min @ 60Hz
    Maximum Output Level
    • +27.4 dBu @ 600 ohm
    Power Requirements
    • 115/230 VAC, 28W
    Gain dB
    • 0 to 80 dB
    Equivalent Input Noise
    • -110 dBu; Unweighted 300kHz Bandwidth
    Phase Button
    • 180 degrees


    • High Frequency: +/-16dB shelving with selectable frequencies
    • Low Frequency: +/-16dB shelving with selectable frequencies
    • Mid Range: +/-16dB peaking with switchable selectable centre frequencies
    • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz
    • EQ Button: Switches the equaliser on or off
    • Phase Button: 180
