Item #1159938 Model #SIN73MPFWPS

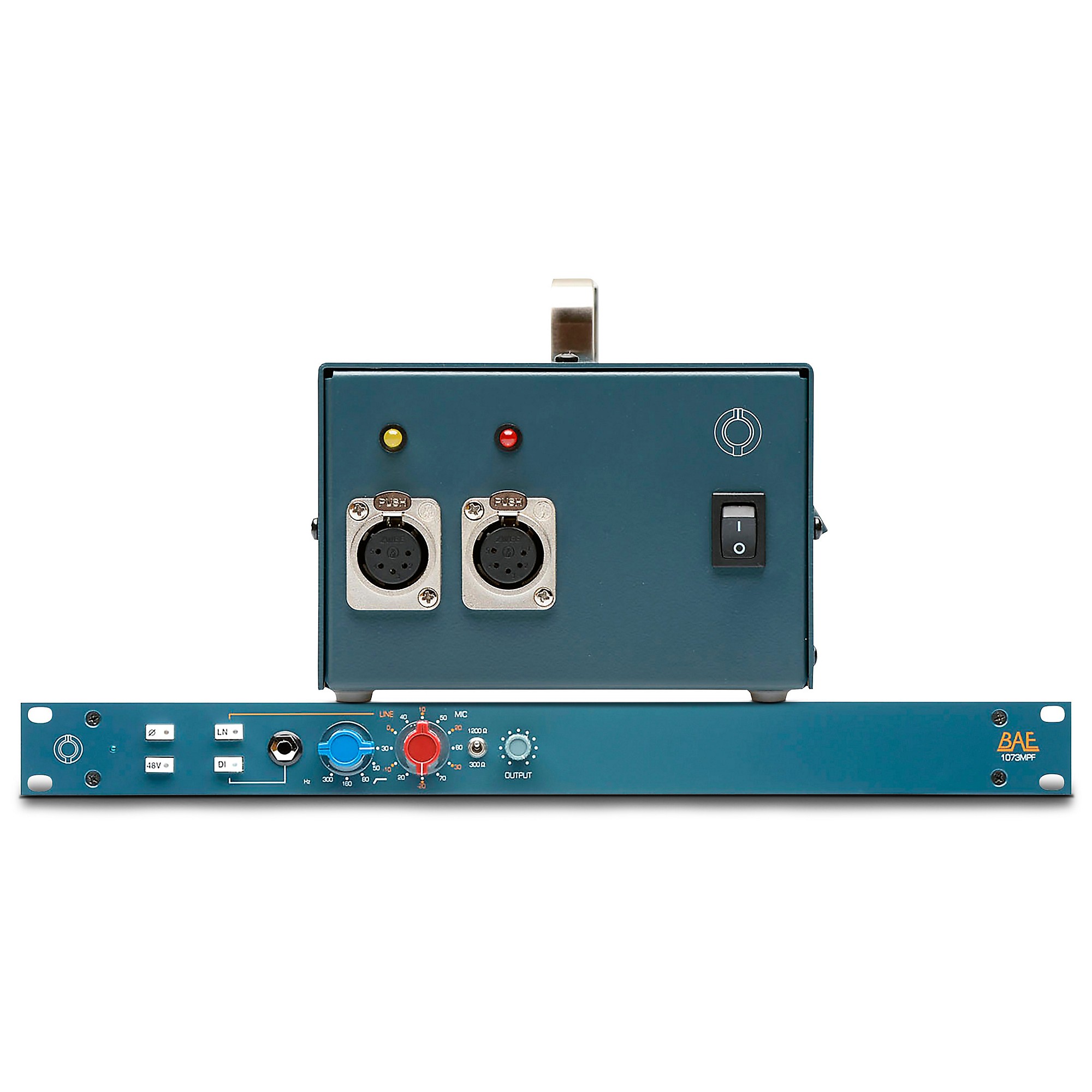

BAE 1073MPF Single Channel With Power Supply

Sorry, this item is not available.

Rackmount mic pre/EQ with high-pass filter.

BAE Audio is known for manufacturing high-end microphone preamps and EQs that are faithful to original vintage designs from the 70s and earlier. BAE prides itself on using high-end transformers for their products, and everything is kept as close to the vintage philosophy as possible. Not only does BAE choose the highest quality components, they also insist that everything is hand-wired/soldered using discreet electronics and not economized on a circuit board.

This is the high-pass filter version of the 1073MP. The 1073MPF is the mic pre-amp version of the 1073 equaliser, sharing the the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs and maintained focused mids. A transformer coupled input, with two selectable impedances makes the 1073MP work well with a variety of microphones. There is also a line input feature for adding depth to 2-bus mixes and a DI input for all passive and active instruments.

As a coloured and versatile mic-pre, the 1073MP maintains its sonic signature across a wide bandwidth.
Specifications
Frequency Response
  • 10Hz to -3dB at 55kHz
High Pass Filter
  • 50Hz, 80Hz, 160Hz, 300Hz
Mic Input Impedance
  • 1200/300 ohms
Line Input Impedance
  • 10k ohms
DI Input Impedance
  • 150k ohms
Output Impedance
  • 65 ohms
Common Mode Rejection Ratio
  • 100dB min @ 60Hz
Maximum Output Level
  • +27.4 dBu @ 600 ohm
Power Requirements
  • 115/230 VAC, 30W
Gain dB
  • 0 to 71 dB
Equivalent Input Noise
  • -110 dBu; Unweighted 300kHz Bandwidth

Features

  • All Class A, transformer-coupled design in a 19" 1U chassis
  • Inductor based high pass filter
  • Line level XLR inputs for extra versatility as a line preamp
  • High impedance DI for guitar and synth
  • The same Class A components as the 1073 and 1084
  • Illuminated phase reverse and phantom power pushbuttons
  • Input impedance selector switch between 1200 and 300 ohms
  • Same modular design and hand-wiring BAE is known for
  • Regulated linear power supply will run up to four channels
