Get eight SDI capture and playback channels in a single card.

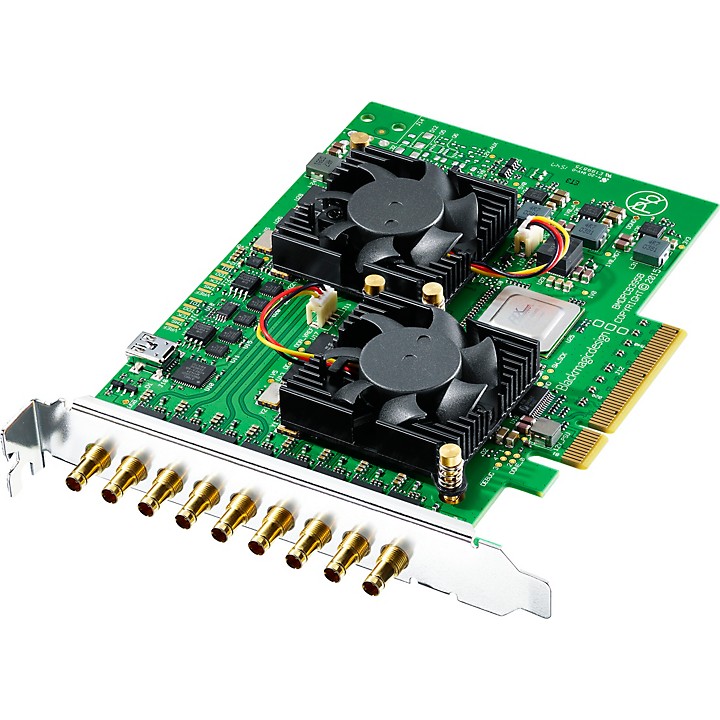

The DeckLink Quad 2 from Blackmagic Design features eight independent SDI capture and playback channels in a single card. Fully compatible with the previous four channel model, this updated model allows four independent capture and playback channels but now also includes four extra channels that developers can use for configuring the card in any combination of up to eight capture or eight playback channels. This means DeckLink Quad
2 allows each of the eight 3G-SDI BNC connectors to switch direction between capture or playback in SD and HD up to 1080p60 and as a complete independent channel.
2 allows each of the eight 3G-SDI BNC connectors to switch direction between capture or playback in SD and HD up to 1080p60 and as a complete independent channel.
Specifications
- SDI Video inputs: 8 x bi-directional 12-bit SD/HD independently configurable as either input or output
- SDI Video outputs: 8 x bi-directional 12-bit SD/HD independently configurable as either output or input
- SDI Audio inputs: 16 channels embedded in SD and HD
- SDI Audio outputs: 16 channels embedded in SD and HD
- Sync input: Tri-Sync or Black Burst
- Computer interface: PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots
- Length: 6.30 in.
- Weight: 0.28 lb.
Features
- Includes software such as Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows, Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
- Firmware built into software driver, loaded at system start or via updater software
- Built in, high quality software down converter on playback and capture
- Down converted SD selectable between letterbox and anamorphic 16:9 styles
- Built in, high quality software up conversion from SD to 720HD or 1080HD on capture
- Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom
- Built in, high quality hardware cross conversion from 720HD to 1080HD on playback, 1080HD to 720HD on playback
- Real time effects include DaVinci Resolve, Final Cut Pro X internal effects, Adobe Premiere Pro CC Mercury Playback Engine effects and Avid Media Composer internal effects
