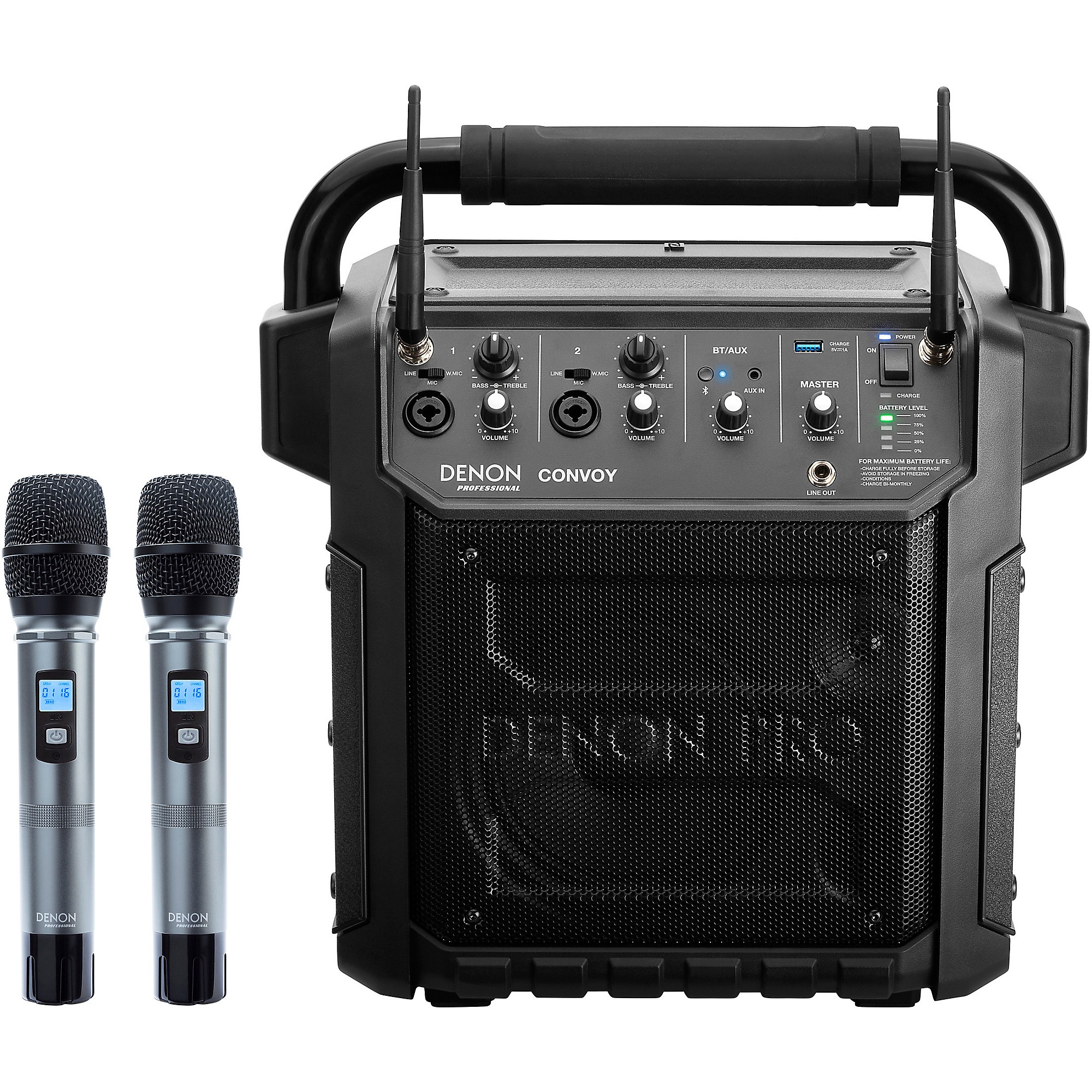

Denon Professional Convoy Portable PA System with Diversity Wireless Mics And Bluetooth Receiver

  • Item # 1550442
  • Model # CONVOYXUS

The Denon Professional Convoy expands on the line of Denon powered speakers with a small, compact model designed for portability, and features the added flexibility of a two-channel, UHF diversity wir… Learn More

$299.00

Availability: In Stock & Ready to Ship

Ship to Store

2-7 business days

Portable, flexible and powerful.

The Denon Professional Convoy expands on the line of Denon powered speakers with a small, compact model designed for portability, and features the added flexibility of a two-channel, UHF diversity wireless system for presentations and other applications requiring two microphones. The Convoy also employs Bluetooth® technology for content playback from any Bluetooth-enabled device. For presentations and other applications requiring two microphones. Order today.

Features

  • Portable self-powered PA system
  • 40 watts (RMS) drives high-quality 6.5-inch woofer, 2-inch tweeter
  • Two Wireless Diversity UHF channels with included handheld microphones
  • Two Line/Mic channel with XLR/1/4” (6.35 mm) combo input
  • Streams music wirelessly from any Bluetooth-enabled device
  • NFC pairing and 1/8” stereo line input
  • Built-in rechargeable battery delivers up to 50 hours continuous use
  • USB charging port for phone, tablet or other device
  • Rugged design with built-in top handle for easy transport

Technical Specification

Denon Professional Convoy Portable PA System with Diversity Wireless Mics And Bluetooth Receiver

Output Power

  • 80W peak
  • Drivers

Low-frequency

  • 6.5” (165mm) woofer

High-frequency

  • 2.0” (51mm) tweeter

Frequency Response

  • 90 Hz - 20 kHz

Connectors

  • (2) Line/Mic channels with XLR-1/4” (6.35mm) TRS combination input
  • (1) 1/8” (3.5mm) TRS/stereo AUX input
  • (1) 1/4” (6.35mm) line output
  • (1) IEC AC power connection with Mains fuse

Charge Port

  • USB +5 V, 1 A

Controls

  • (2) Volume controls for Line/Mic/Wireless Mic channels
  • (2) Line/Mic/Wireless Mic selectors
  • (1) Volume control for Bluetooth and AUX channels
  • (1) Master volume
  • (1) Bluetooth pairing button
  • (1) power on/off switch

Indicators

  • Power on, battery level, Bluetooth pairing status

Wireless Specifications

  • System Type: Dual-channel diversity UHF

Analog/Digital: Analog

Frequency Range: 584 - 594.85 MHz

  • Operating Range: 100 ft (31m) line-of-sight

Channel Selection: Manual

Form Factor: Handheld

  • Type: Dynamic

Polar Pattern: Cardioid

  • Frequency Response: 50 Hz - 15 kHz

Battery Type: 2 x AA

Battery Life: Up to (14) hours

Bluetooth Specifications

Profile: A2DP, AVRCP

Range: Up to 100 ft (31m) *

Connections: Manual pairing or NFC

  • Battery Type:12 V, 5.0 Ah SLA
  • Life: Up to (50) hours **

Power Connection

  • IEC

Voltage

  • 100 - 240 VAC, 50/60 Hz

AC Voltage Input/Fuse

  • 100, 110 - 120, 220 - 240 / T2AL AC250V

Dimensions (height x width x depth)

  • 16.5” x 15.7” x 9.4” (420 x 398 x 238mm)

Weight

  • 20.4 lbs (9.27 kg)
  • *Bluetooth and wireless reception and range are affected by walls, obstructions and movement. For optimal performance, place the product in the center of the room so it is unobstructed by walls, furniture, etc.
  • **Battery life may vary based on temperature, age, and volume usage of product.

UHF Wireless MIC TX Frequency list(USA:584~608MHz)

  • Channel Frequency(MHz - Group 1) Frequency(MHz - Group 2)
  • 1 584.000     589.600
  • 2 584.350 589.950
  • 3 584.700         590.300
  • 4 585.050 590.650
  • 5 585.400 591.000
  • 6 585.750 591.350
  • 7 586.100 591.700
  • 8 586.450 592.050
  • 9 586.800 592.400
  • 10 587.150 592.750
  • 11 587.500 593.100
  • 12 587.850 593.450
  • 13 588.200 593.800
  • 14 588.550 594.150
  • 15 588.900 594.500
  • 16 589.250 594.850

UHF Wireless MIC TX Frequency list(EU:863~865MHz)

  • Channel Frequency(MHz)
  • 1 863.300
  • 2 863.580
  • 3 863.860
  • 4 864.140
  • 5 864.420
  • 6 864.700

UHF Wireless MIC TX Frequency list(Japan:806.125~809.75MHz)

  • Channel Frequency(MHz)
  • 1 806.375
  • 2 806.625
  • 3 806.875
  • 4 807.125
  • 5 807.375
  • 6 807.625
  • 7 807.875
  • 8 808.125
  • 9 808.375
  • 10 808.625
  • 11 808.875
  • 12 809.125
  • 13 809.375
