Item #1434770 Model #F.01U.312.384

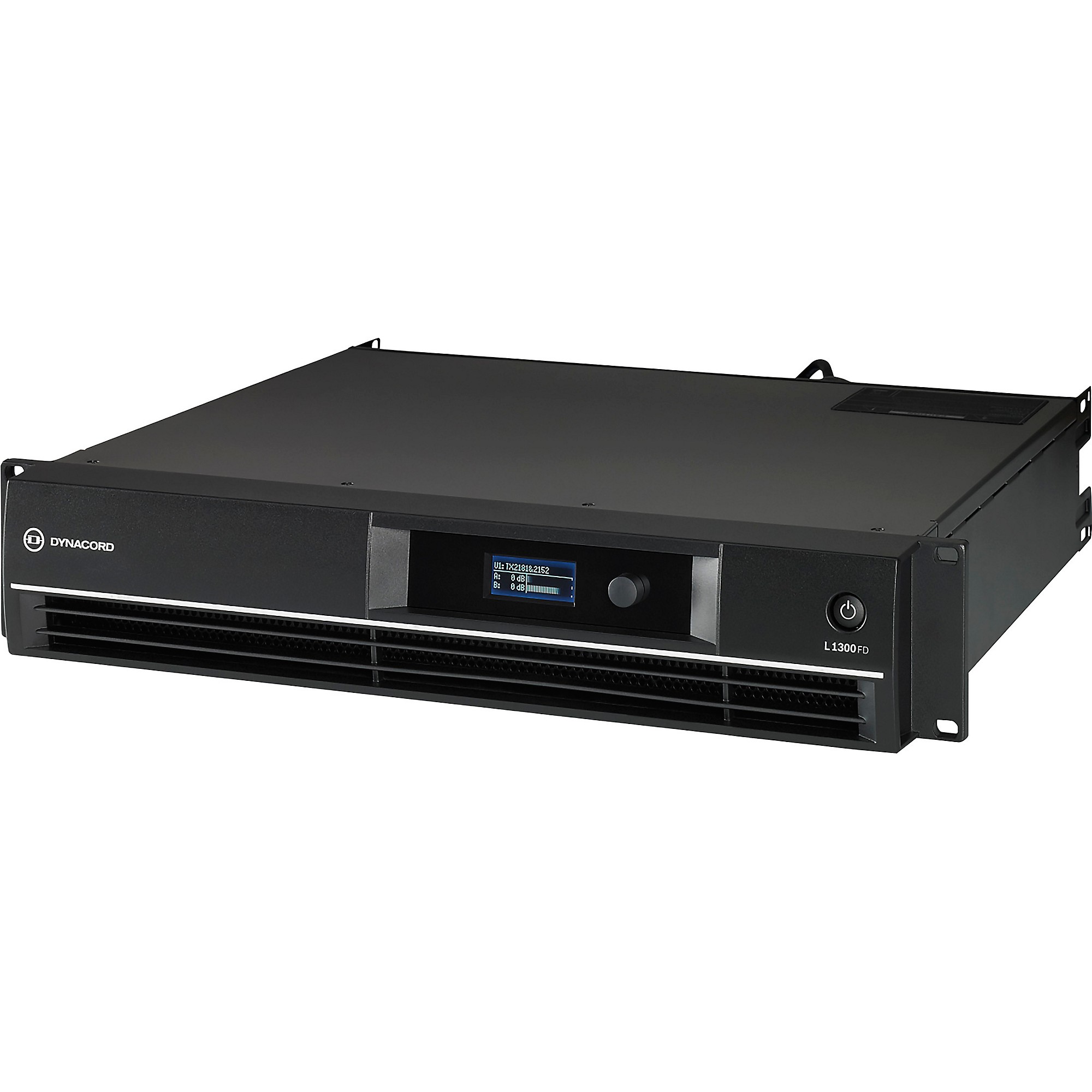

DYNACORD L1300FD DSP Power Amplifier Standard

Sorry, this item is not available.

Features FIR Drive technology.

With 2 channels of 650W peak power on tap and onboard DSP, the Dynacord L1300D offers plenty of juice to power your passive PA system with authority. Built-in FIR Drive technology and true 2 ohm stability mean your system will sound its best, every time. Thanks to this power amplifier's rock-solid reliability, you will perform with peace of mind at every gig. The L1300FD's intuitive system control software makes setup and control easy, so you spend more time focusing on the performance and less time worrying about your gear.
Specifications
  • Maximum RMS Voltage Swing THD = 1%, 1 kHz: 55.3 V
  • Voltage Gain Ref.1 kHz: 32.0 dB
  • THD at 450 W/4 Ω MBW = 80 kHz, 1kHz: < 0.05%
  • IMD-SMPTE, 60 Hz, 7 kHz: < 0.1%
  • DIM30, 3.15 kHz, 15 kHz: < 0.05%
  • Maximum Input Level: +21 dBu
  • Crosstalk ref. 1 kHz, at 100W/4 Ω: < -80 dB
  • Frequency Response, ref. 1 kHz: 10 Hz to 21 kHz (±1 dB)
  • Input Impedance, Active Balanced: 20 k Ω
  • Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 Ω: > 104 Db
  • Output Noise, A-weighted: < -68 dBu
  • Output Stage Topology: Class AB
  • Power Requirements: 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
  • Power Consumption 1/8 Maximum Output Power @ 4 Ω: 550 W
  • Mains Fuse 240 V/230 V: T10AH; 120 V/100 V: T20AH
  • Protection: Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, In rush current limiters, Turn on delay
  • Cooling: Front-to-rear, 3-stage-fans
  • Ambient Temperature Limits: +5°C to +40°C (40°F to +105°F)

Features

  • Professional DSP amplifier for live and mobile application
  • Fully integrated professional speaker processing with FIR drive technology
  • Market-leading acoustic performance and rock solid reliability
  • Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0
