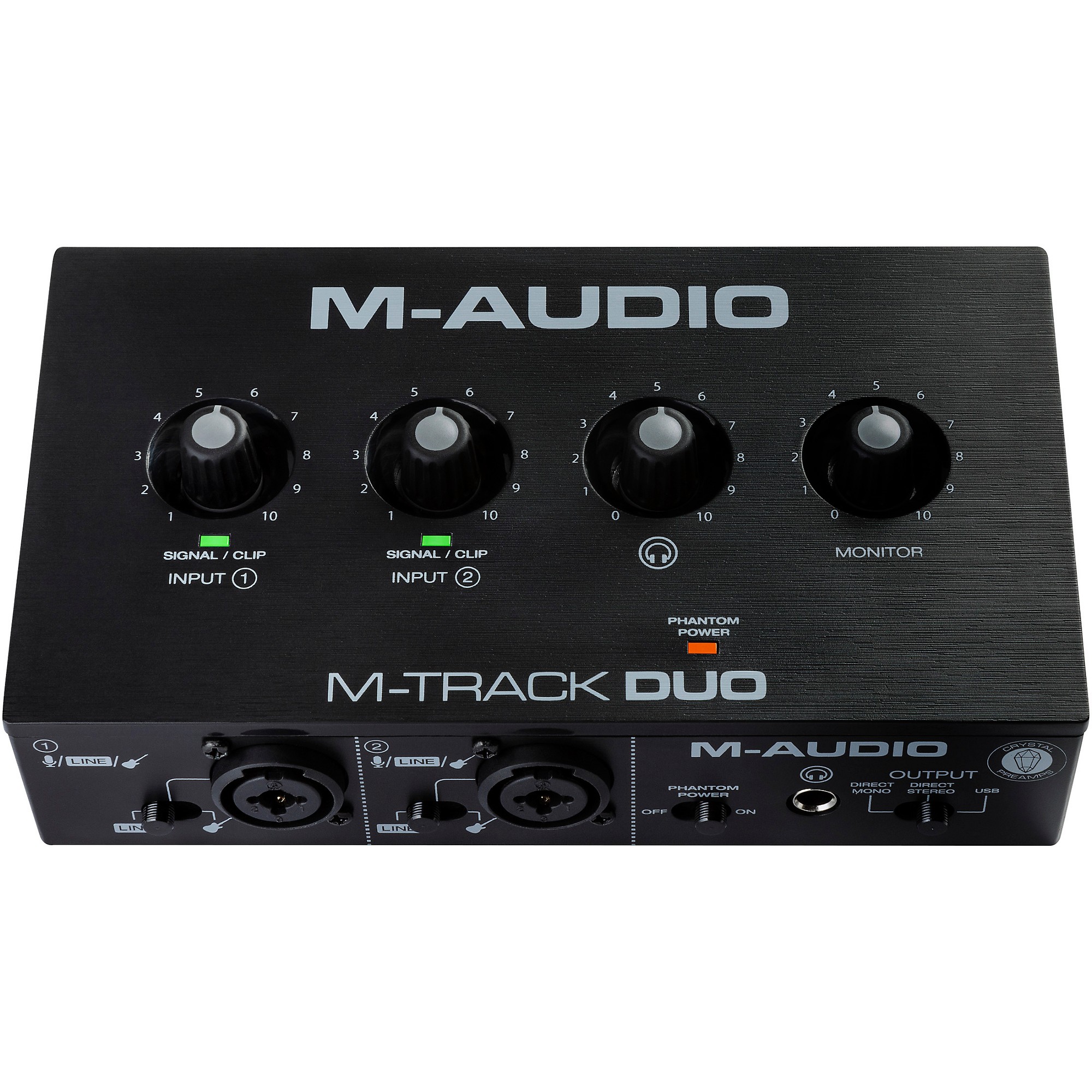

M-Audio M-Track Duo 2-Channel USB Audio Interface

  • Item # 1542679
  • Model # MTRACKDUO

The M-Track Duo delivers 48kHz audio resolution in a compact and easy-to-use format that is ideal for creating music on any Mac, PC or iOS device. This versatile interface works great for recording an… Learn More

$69.00

Availability: In Stock & Ready to Ship

Ship to Store

2-7 business days

High-quality ultraportable recording interface.

The M-Track Duo delivers 48kHz audio resolution in a compact and easy-to-use format that is ideal for creating music on any Mac, PC or iOS device. This versatile interface works great for recording any type of sound source and features two Combo Crystal Preamps with phantom power, making it compatible with any guitar or microphone. Plus, there is a dedicated switch to choose line level input for connecting digital pianos, drum machines or any other stereo 1/4" line level device. M-Track Duo is completely powered by USB, which makes it portable and perfect for anyone on-the-go. Throw it into your bag, grab a laptop, and create your next podcast, song or mix, anywhere you want Create music on any Mac, PC or iOS device.

Features

  • 2-channel USB recording interface for Mac and PC

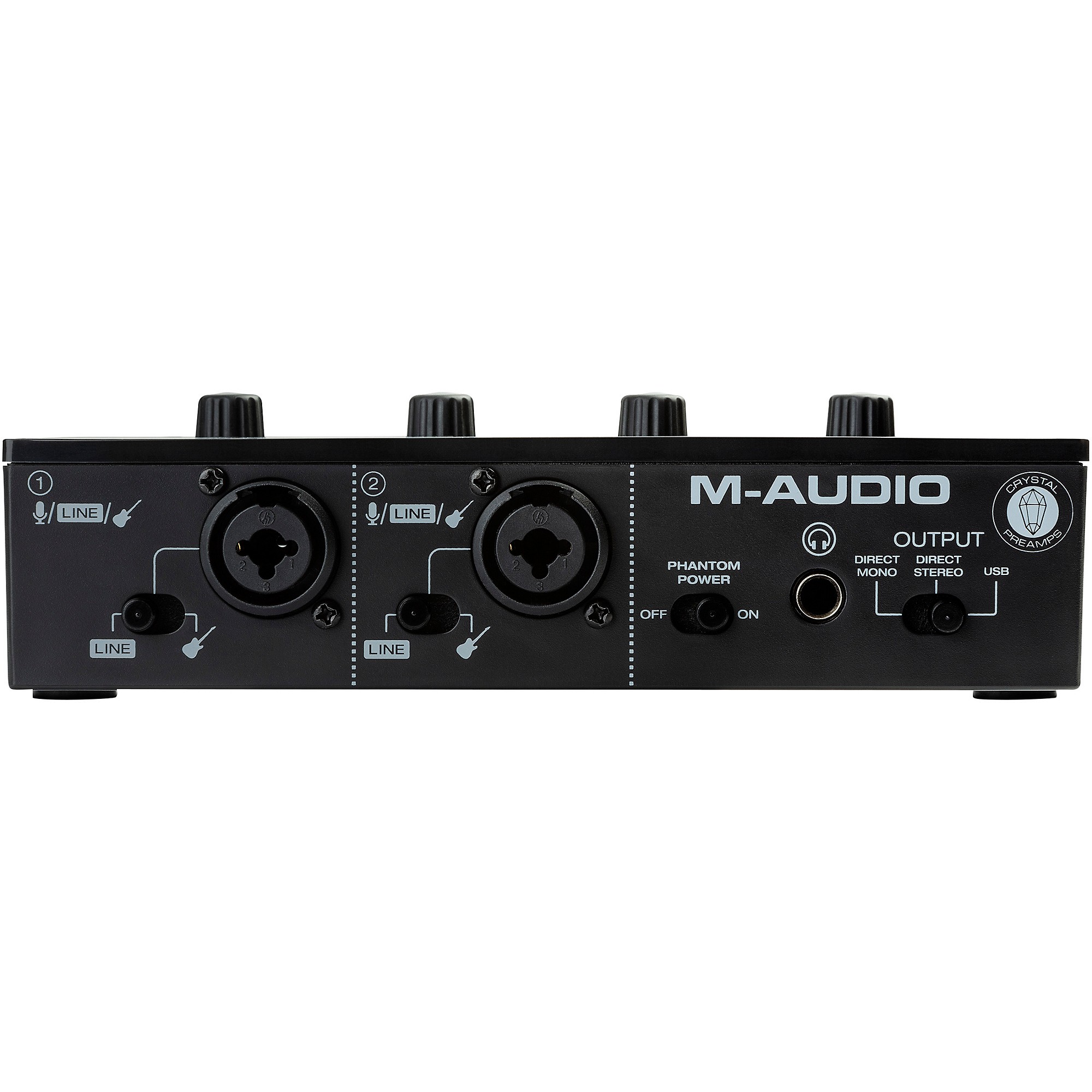

  • 2 Combo inputs with Crystal Preamps amazing audio quality
  • Dedicated switches to enable any microphone,instrument, or line level device
  • +48V phantom power for connecting studio condenser microphones

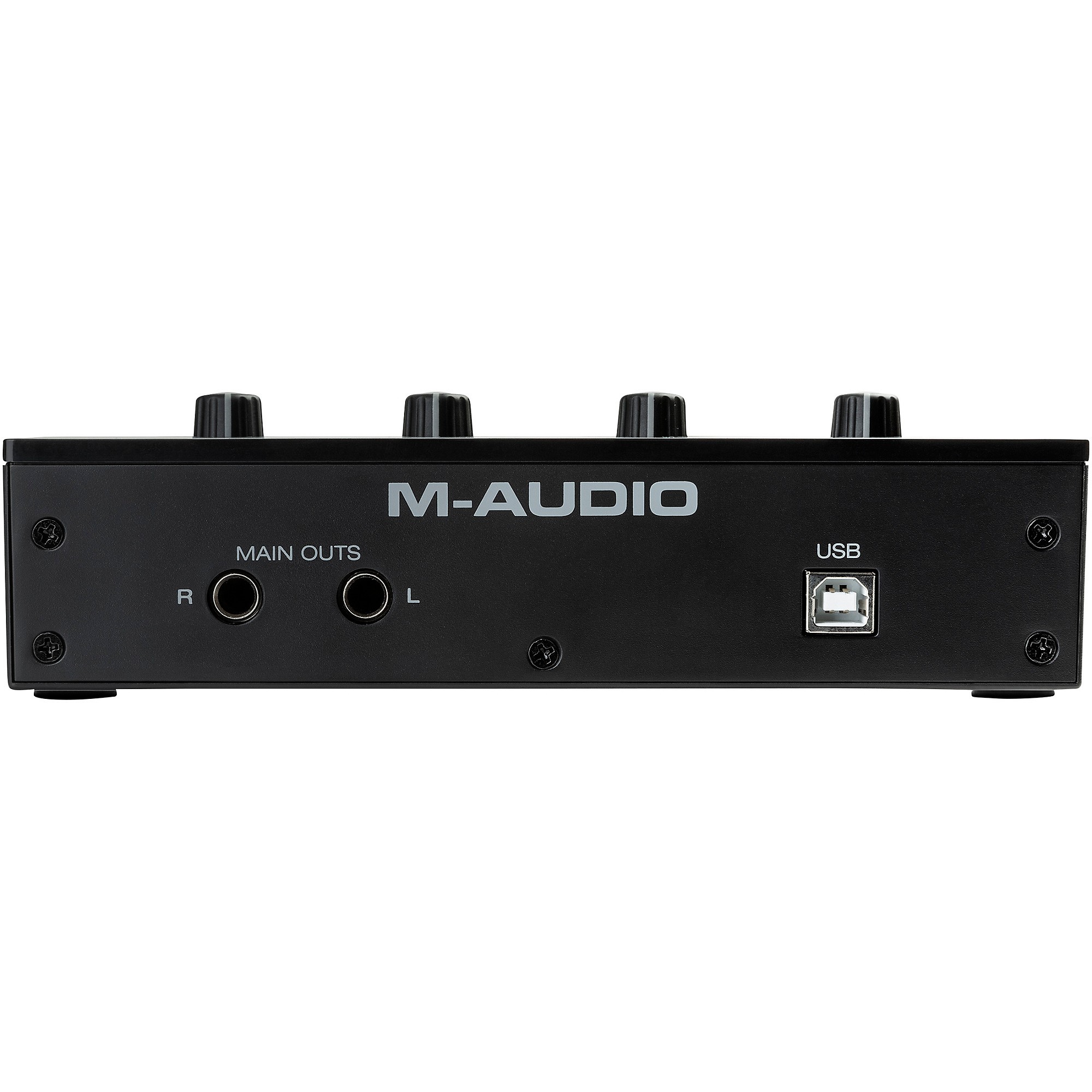

  • Stereo 1/4" outs; 1/4" headphone out with independent level controls
  • USB/Direct Mono/Direct Stereo switch for monitoring mic, line or instrument inputs in stereo or mono

Included

  • Pro Tools First M-Audio Edition
  • MPC Beats
  • AIR Music Tech Xpand!2
  • Eleven Light guitar amp plug-ins
  • 20 Avid effects

Technical Specification

M-Audio M-Track Duo 2-Channel USB Audio Interface

Mic Input (balanced XLR)

  • Frequency Response: 20Hz–20kHz (+0.1 dB)
  • Signal-to-Noise Ratio:109 dB (A-weighted)
  • THD+N: 0.003% (min. gain, 0 dBu out, A-weighted)
  • Preamp EIN: -128 dBu (max. gain, 40 ohm source, A-weighted)
  • Gain Range:
  • Direct Mono: 0 dB to +54 dB
  • Direct Stereo: 6 dB to +60 dB

Line Input (balanced 1/4” [6.35 mm] TRS)

  • Frequency Response: 20Hz–20kHz (+0.1 dB)
  • Sensitivity: -43 dBu
  • THD: 0.002% (min. gain, 0dBu out, A-weighted)
  • Gain Range:
  • Direct Mono: -10 dB to +44 dB
  • Direct Stereo: - 4 dB to +50 dB
  • Instrument Input (unbalanced 1/4” [6.35mm] TS)
  • Frequency Response: 20Hz–20kHz (+0.1 dB)
  • THD+N0: .005% (min. gain, 0dBu out, A-weighted)
  • Input Impedance: 1 mOhm
  • Gain Range:
  • Direct Mono: -10 dB to +44 dB
  • Direct Stereo: -4 dB to +50 dB

Main Outputs, L and R (impedance-balanced 1/4” [6.35 mm] TRS)

  • Frequency Response: 20Hz–20kHz (+0.1 dB)
  • Signal-to-Noise Ratio: 109 dB (A-weighted)
  • THD: 0.002% (0 dBu out, A-weighted)
  • Max Output Level: +4dBu

Headphone Output (1/4” [6.35 mm] TRS)

  • Power: 60mW/Ch, 32 Ohm
  • Frequency Response: 20Hz–20kHz (+0.5 dB)
  • THD+N: 0.02% (A-weighted)
  • Signal-to-Noise Ratio: 100 dB (A-weighted)

General

  • Power: USB bus powered
  • Dimensions (WxDxH): 7.5" x 4.4" x 2.1" or 19.1 x 11.1 x 5.5cm
  • Weight: 0.80 lb., 0.365kg
