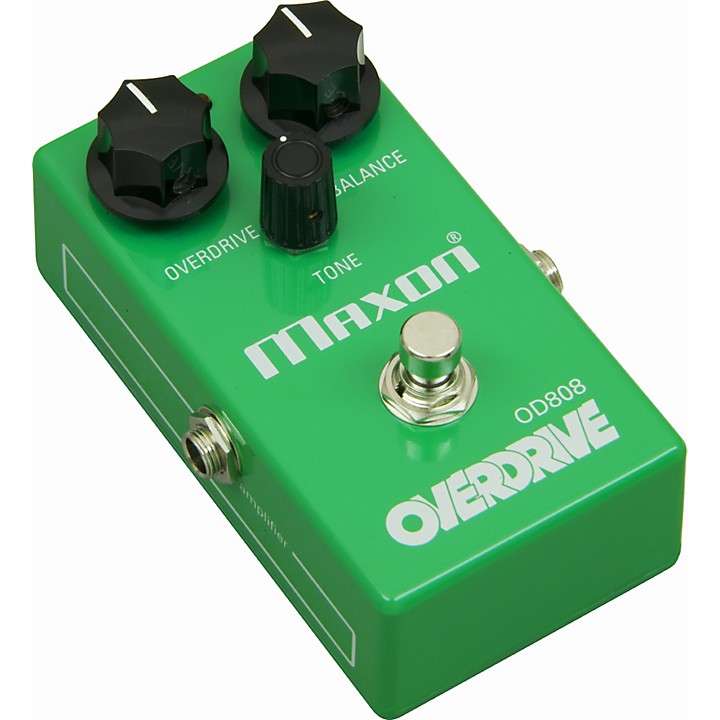

Maxon OD808 Guitar Overdrive Pedal

  • Item # 0168529
  • Model # OD808

The quintessential overdrive pedal!

$149.00

Reserve Now! This item is backordered but it is available to reserve now. You will not be charged until the item ships.

Ship to Store

2-7 business days

The quintessential overdrive pedal!

Whether it's used as an overdrive or a booster, the Maxon OD808 is the closest you can get to the classic sounds of rock guitar in a compact effect pedal.


"¦it"s nearly impossible to dial in a bad sound. If you"re after classic blues/rock overdrive, it would be tough to pick a better pedal."
Legendary tone is in stock. Upgrade your sound today!

Features

  • Warm, natural overdrive similar to a tube amp
  • Overdrive, Balance, and Tone controls
  • Uses same JRC4558 IC-based circuit as original green '808 overdrive
  • Responds to picking dynamics and playing nuances
  • Great as overdrive or amp booster
  • Silent dual-FET switching circuitry

Technical Specification

Maxon OD808 Guitar Overdrive Pedal

  • Input Impedance: 500K Ohms
  • Input Jack: 1/4" standard phone jack
  • Output Impedance: 10K Ohms
  • Output Jack: 1/4 inch standard phone jack
  • Output: 1
  • Controls: Drive, Tone, Balance
  • Switch: Normal/Effect
  • Noise (IHF-A): -110 dBu
  • Max Amplitude; 35dB
  • Power Supply: 9V Manganese dry cell battery (S-006P) or special AC adaptor
  • Power Voltage: DC9 V (Battery) / DC10 V (AC-adaptor)
  • Current Consumption: 5mA (9V)/6mA (10 V)
  • AC Adaptor AC210N (option): AC120V Input; DC9V/200 mA Center - / Sleeve +) Output
  • Dimensions (main body): 61 mm (W) x 112 mm (D) x 35 mm (H)
  • Dimensions (whole): 70 mm (W) x 112 mm (D) x 55 mm (H)
  • Weight: 260g
  • Accessories: 9V Manganese dry cell battery (S-006P) x 1; Non-skid pad x 1; Warranty Card x 1; User's Manual x 1
