Item #1539332 Model #HR3.5

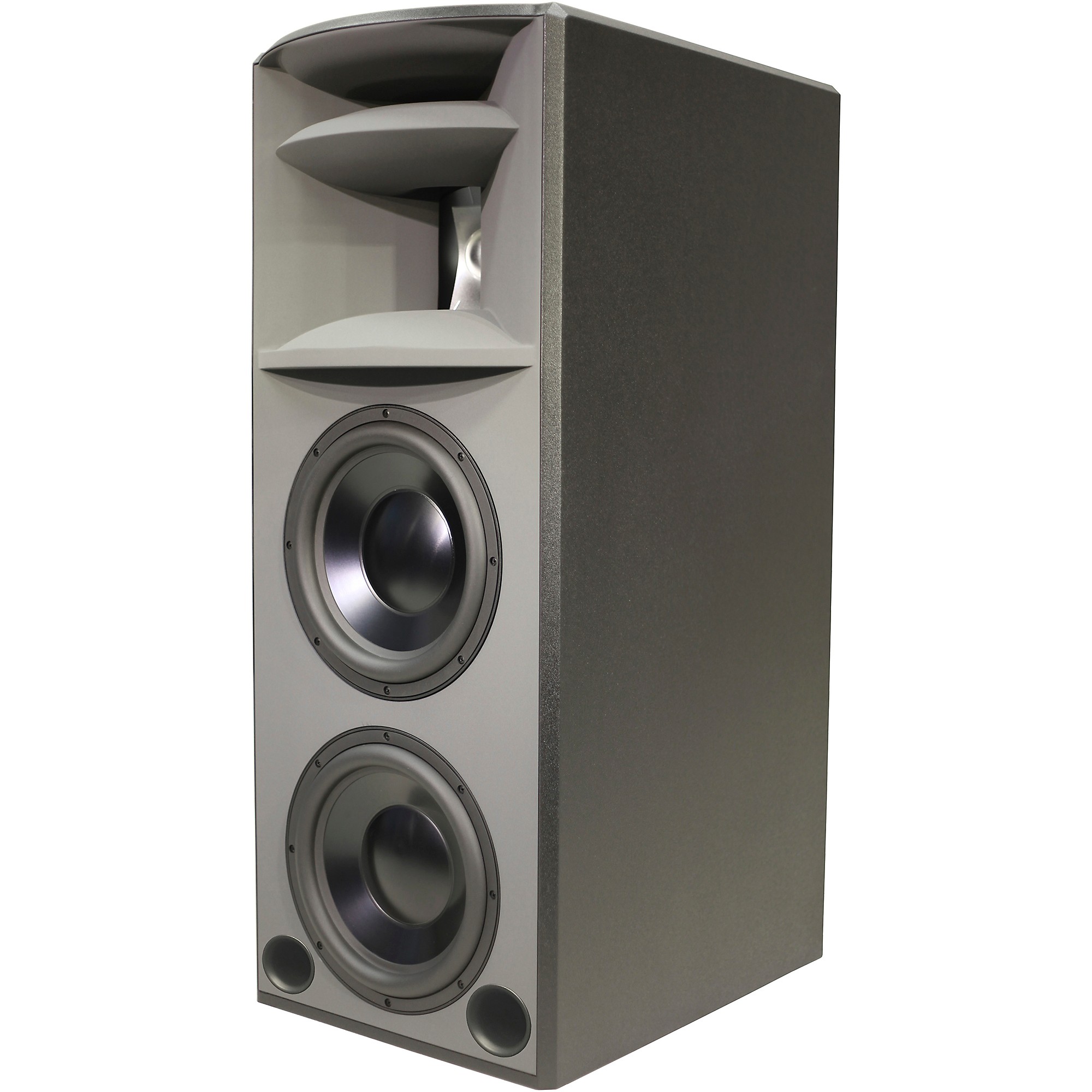

Ocean Way HR3.5 Three Way Tri-Amplified Loudspeaker Standard

Sorry, this item is not available.

A three way, tri-amplified loudspeaker that delivers on power and performance.

The Ocean Way Audio HR3.5 is a standalone or soffit-mounted monitor speaker. The HR3.5 is based on the highly acclaimed HR4S studio monitor. It delivers a frequency response of 20 Hz to 22 kHz, with a solid SPL of 120db. The HR3.5 Reference Monitor incorporates an integrated 2-way dual-horn system. It has 1” high-frequency and 8″ mid-frequency drivers, mechanically time-aligned with twin 12″ sub-bass drivers per channel. State-of-the-art OWA A-4100 amplifiers power this speaker with both analog and digital inputs, 96 kHz and 24-bit sampling, tri-amped delivering 3,400 watts per channel of pure power. At the heart of the acoustic design is OWA’s geometrically-complex, stone-casted dual/hybrid waveguide system.

The system delivers accurately-matched and detailed imaging with unusually wide 100×40 degree horizontal and vertical dispersion. This yields a massive sweet-spot across a broad area of the listening environment. The consistency of its stereo image, even at the far corners of the room, is due to the directivity response of this speaker system.

Amplification is conveniently rack-mounted, allowing either soffit or free-standing installations. Ocean Way selected and matched each set of components, getting them as close as possible to achieve high performance standards.
Specifications
General
  • System type: Powered
  • Configuration: 3-way
Drivers
  • Low-frequency driver: Twin 12 in.
  • Mid-frequency driver: 8 in.
  • High-frequency driver: 1 in.
  • Driver type: 3-way, compression-driven horns/waveguides
Sound
  • Frequency response: 20Hz – 22kHz
  • Max peak SPL: 120dB
  • Output power: 3,400W/channel
Other
  • Width: 17.5 in.
  • Height: 43 in.
  • Depth: 25.5 in.
  • Enclosure type: Ported

Features

  • HiRes3.5 – Tri-amped proprietary integrated dual/hybrid waveguide system
  • 1” HF driver, 8” LF mechanically time-aligned with twin 12” sub-bass drivers per channel
  • Ultra-wide sweet spot, rich detailed controlled 100 H/40 V degree dispersion, 20Hz to 22kHz
  • 3400 watts/channel of pure power, Digital & Analog inputs, accepting 24bit/192kHz data streams
  • Capable of delivering 120db SPL with incredibly solid bass and center imaging performance
  • Can be set up free-standing or soffit-mounted with supplied remote amplifiers
