Item #1586137 Model #13000709
PRICE DROP

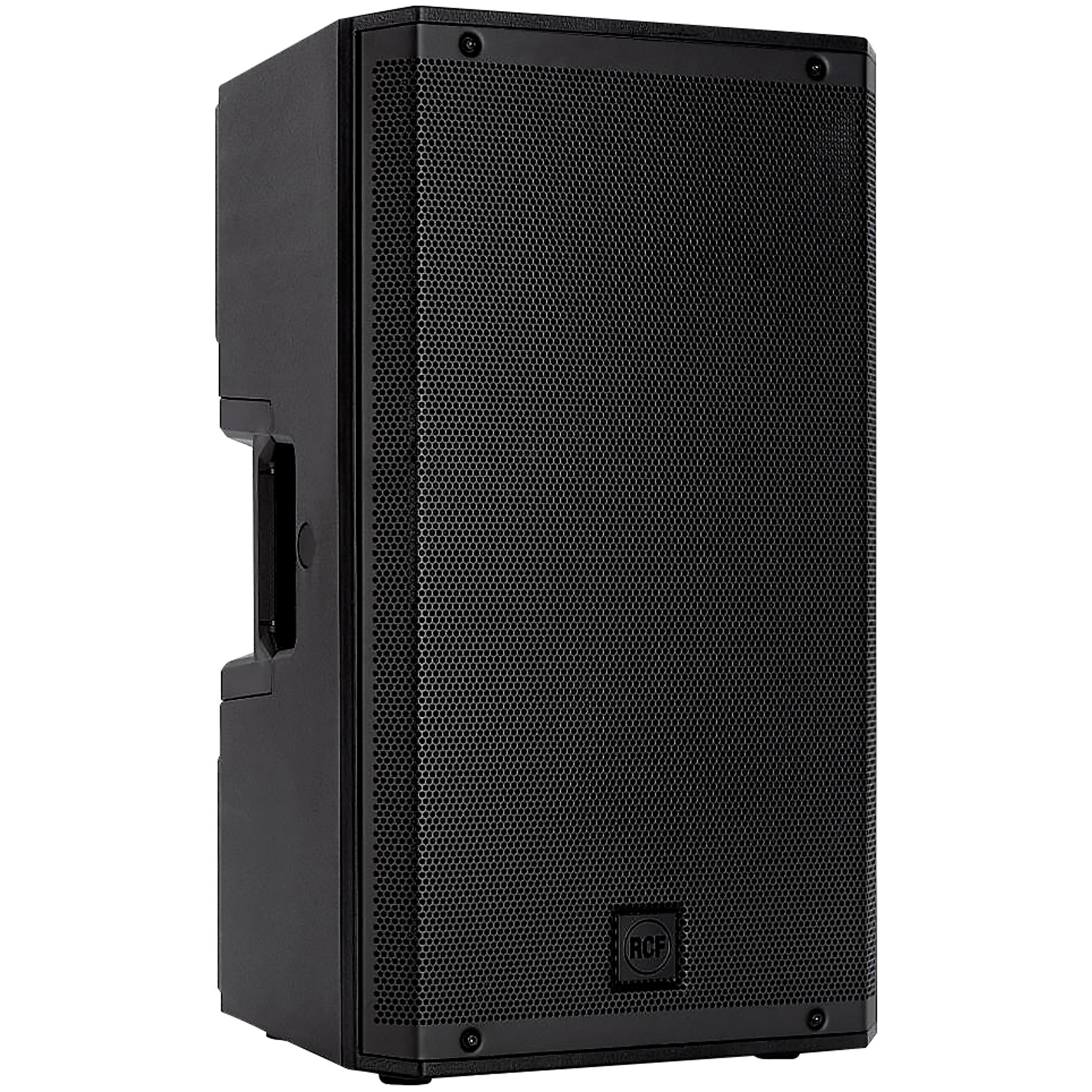

RCF ART 912-AX 12" 2100W Professional Powered Speaker With Bluetooth Standard

Sorry, this item is not available.

Professional active Bluetooth speaker with 2100W Class-D Bi-Amplification and a built-in 6-channel digital mixer.

The RCF ART 912-AX is a top-notch solution for any audio application, featuring 48V microphone preamps and line inputs, an internal 6-channel digital mixer with advanced DSP, Bluetooth stereo audio input, with dual speaker pairing option. The combination of a 1.75" compression driver, 12" woofer, and two-channel 2100W amplifier, produces 100° x 60° constant directivity coverage for the listening area with up to 130 dB SPL, distortion-free sound. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.
Specifications
Acoustical Specifications
  • Frequency Response: 50 Hz ÷ 20000 Hz
  • Max SPL @ 1m: 130 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 60°
Transducers
  • Compression Driver: 1 x 1.0'', 1.75'' v.c
  • Woofer: 12'', 2.5'' v.c
Input/Output Section
  • Input signal: bal/unbal
  • Input connectors: Combo XLR/Jack
  • Output connectors: XLR
Processor Section
  • Crossover Frequencies: 1600Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: Color touch panel, data entry/volume encoder, dedicated App for iOS and Android
Power Section
  • Total Power: 2100 W Peak, 1050 W RMS
  • High frequencies: 700 W Peak, 350 W RMS
  • Low frequencies: 1400 W Peak, 700 W RMS
  • Cooling: Convection
  • Connections: VDE
Electronic Specifications
  • Frequency Response: 20 Hz ÷ 20 Hz
  • THD+N, 20dB gain, 0dBu out: 0.005% A-Weighted
Processing
  • Processing Channels: 6
  • Signal Processing: 24 Bit
  • A/D-D/A conversion: 32 Bit @ 48.0 kHz
  • Dynamic range: 110
Inputs
  • Mic: 2
  • Remote Controlled Storable Gain: Yes
  • Gain Range: 0 dB ÷ 42 dB
  • Input Noise Level: -114 dBu A-Weighted
  • Mic Inputs Impedance: 6 kohm
  • Low Cut: 20 Hz ÷ 400 Hz
  • Phantom Power +48V: Yes
  • Mono Line: 2
  • Gain Selection: 0 dB ÷ 22 dB
  • Line Input Impedance: 21 kohm
  • A/D Dynamic range: 114 dB
  • Stereo Line: 1
  • Gain Selection: 0 dB ÷ 10 dB
  • Stereo Line Input Impedance (kOhm): 13 kohm
Outputs
  • Main MIX: 1
Output Specifications
  • Main Out Impedance: 150 ohm
  • Main Out Level: 22 dBu
  • D/A Dynamic Range: 114 dB
Compressors
  • RCF Compressors: Compressors on MIC/LINE CH1 & CH2 Inputs
EQ
  • Input Channels EQ: 2 Shelving 1
  • Description: 3 Band EQ: High and Low band shelving, MID band peak on IN, 5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on Amplifier and MAIN output
Internal Effects
  • Send Effects: 1
Mastering Processors
  • Main OUT type: MIX OUT, CROSSOVER OUT with RCF SUBWOOFERS presets, STEREO OUTPUT, CH1 LINK OUT.
Standard Compliance
  • Safety agency: CE compliant

Features

  • Built-in 6-channel digital Mmixer
  • Advanced user interface with touch panel and remote control
  • 1.75" Compression Driver and 12" Woofery
  • Up to 130 dB sound pressure level
  • 2100W Class-D Bi-Amplification
  • Dual combo preamp with 48V power and mini-jack stereo line input
  • Bluetooth stereo audio input, with dual speaker pairing option
  • True Resistive Waveguide, FiRPHASE, and Bass Motion Control
