Item #1318301 Model #13000482

RCF EVOX 12 Active 2-Way Array Standard

Sorry, this item is not available.

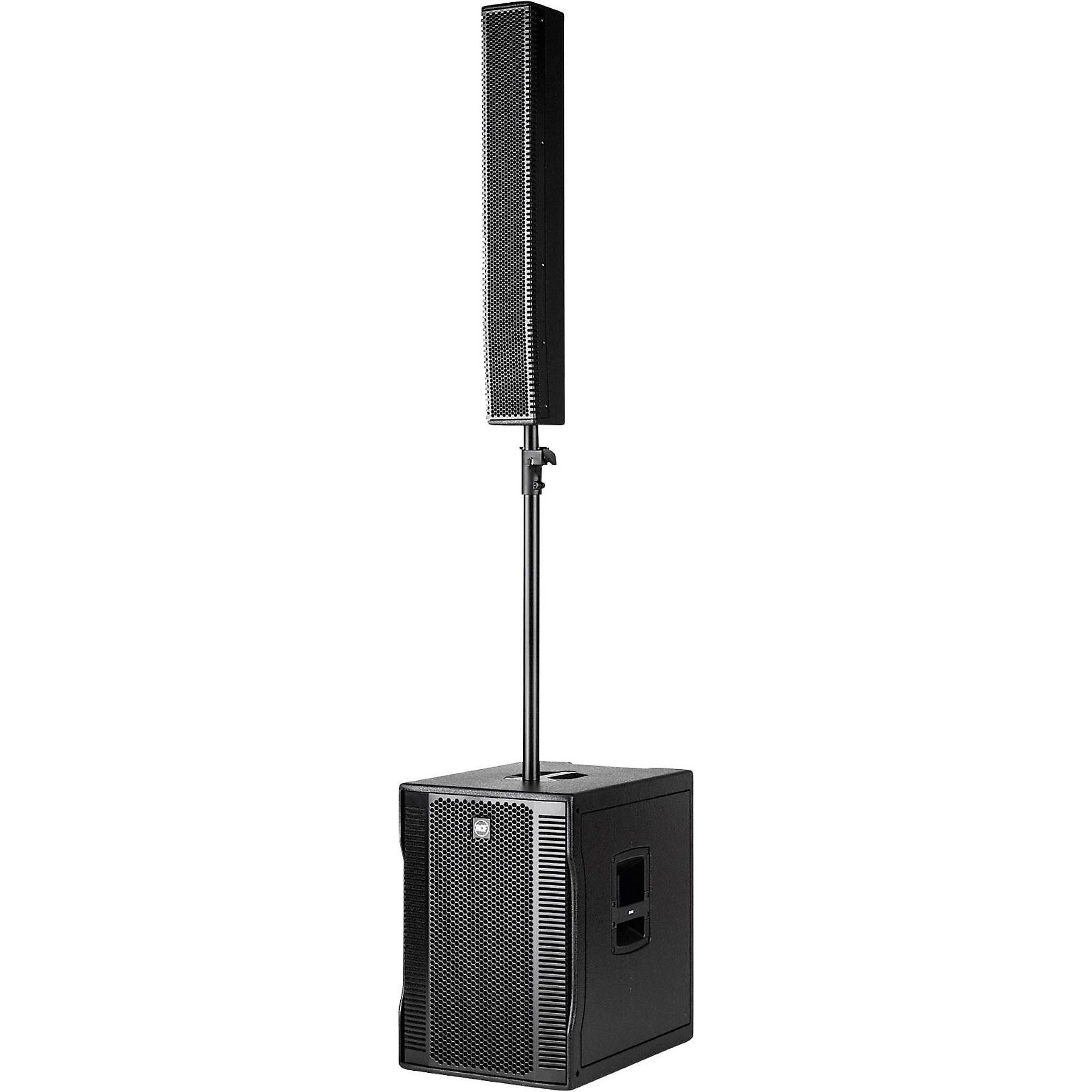

Portable two-way array system with 15" low-end driver.

EVOX 12 is the most powerful line-source in its class and offers dynamic reproduction at high levels due to its built-in 1,400W power amplifier. The top section has eight high-performance neodymium 4" full-range transducers with a phase plug. As a result, the EVOX 12 has a significantly increased low-mid playback at a constant level with a wide dispersion for the highs. The 15” subwoofer delivers powerful bass sound to reinforce a big party or the kick drum of a live band. Despite high performance, the enclosure is very compact, and thanks to integrated wheels and extendable handle very easy to transport.

EVOX array design features constant horizontal directivity coverage of 90° x 30°, offering a perfect listening experience for the audience. The vertical array design is progressively shaped to guarantee a correct listening from the first row and to avoid a high frequency beaming typical of straight array. Extremely deep response, precise low frequency control and incredible audio quality, easy to transport and quick to set up. EVOX is without any doubt a smart choice for DJs. Extraordinary clarity and dynamic of vocal reproduction, both at low and very high levels. EVOX is a great tool for conferences and speeches.

Features

Speaker configuration
  • Active/passive: Active
  • Type: Full range
  • LF driver: 15" with 3" VC
  • MF driver: N/A
  • HF driver: 8 x 4", 1" VC
Power
  • Amplifier class: D
  • Wattage: 700W RMS 1,400 peak
  • Mixer/preamp: N/A
Audio
  • Frequency response: 40Hz–20kHz
  • Coverage pattern: 90° x 30°
  • Max SPL: 130dB
Inputs
  • XLR/TRS: 1
  • TRS: N/A
  • TS: N/A
  • RCA: N/A
Output/thru
  • XLR: 1
  • TRS: N/A
  • TS: N/A
  • speakON: N/A
Enclosure
  • Cabinet material: Composite
  • Width: 16.1"
  • Height: 87.4"
  • Depth: 22"
  • Weight: 80.2 lb.
