Item #1597376 Model #13000784

RCF NX912-SMA 12" Professional Powered Stage Monitor Standard

Sorry, this item is not available.

A stage monitor designed for sound providers, musicians, bands, and DJs.

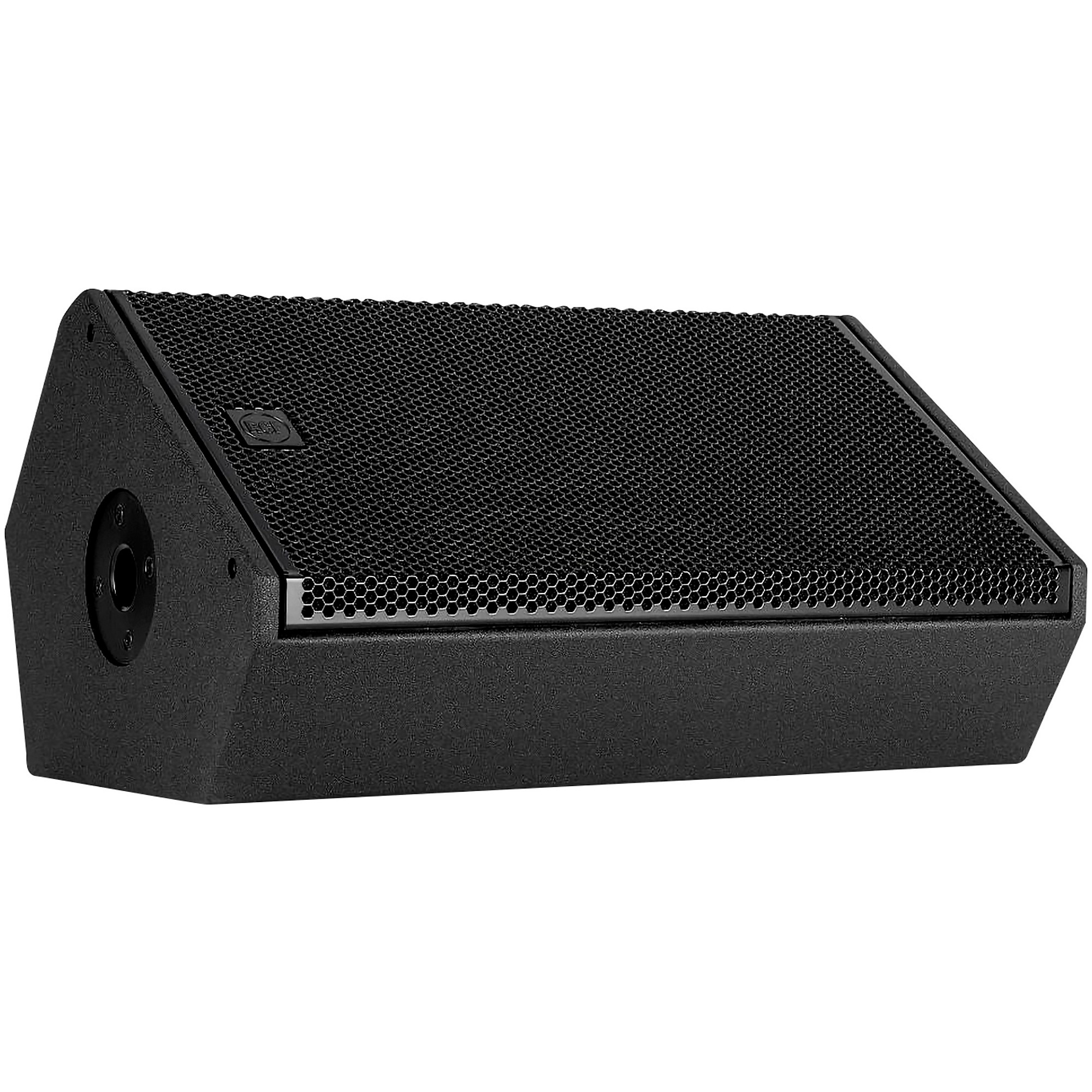

The RCF NX 912-SMA speaker is a stage monitor designed for sound providers, musicians, bands, and DJs. The combination of a 1.75" compression driver, 12" woofer, two-channel 2,100W amplifier, and the TRW waveguide produces coherent 100° x 70° coverage for the listening area with up to 130dB SPL of distortion-free sound. Used as a stage monitor, stand-alone speaker system, or satellite paired with a subwoofer, the NX 912-SMA blends high performance and reliability in a compact package. Combining RCF proprietary FiRPHASE and Bass Motion Control DSP processing, NX 912-SMA Series speakers deliver absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and set up on stage or on a pole.

Power that Moves

RCF's improvements in transducer design make them stronger and powerful, so the amplifier follows the evolution. With 2100W power, the 2-channel NX 9 Class-D amplifier is 50% more powerful than previous models, able to manage extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. NX 9 is energy-efficient so there's no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet - with no moving parts. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All NX 9 amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.

Superior Transducers

Lightweight and powerful, RCF drivers are a reference in high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components. The new 1.75" voice coil design with Polyimide-Kapton dome features a new bonding technology and reinforcement ribs making it 10 times more rigid than previous models, for increased accuracy and durability. The redesigned phase plug increases sound clarity with less distortion. Low-frequency transducer design gains more stability over higher currents, with less distortion and better heat handling.

Tour-proven Workhorse

NX 9 can operate as either the main system or as a floor monitor. This flexibility makes it a smart choice for a wide range of live sound applications. The rugged all-wood cabinet is easy to carry, thanks to handles on both sides (one on top for NX 910-A). The lower side includes a steel pole socket for mounting on a stand or a subwoofer pole. Each model can also be flown, wall- or truss-mounted using the six included M10 rigging points and special accessories. From the wood cabinet to the final texture and the rugged protective grille, NX 9 offers maximum strength for intensive use on the road and can be used for fixed installation.

More than a Stage Monitor

The NX 9 Series is designed to fit all listening requirements from sound providers to deliver high power and pristine sound from a compact and portable speaker, with an integrated amplifier on board. From the wood cabinet to the final texture and the rugged protective grille, NX 9-SMA offers maximum strength for intensive use on the road.
Specifications
  • Acoustical Specifications
  • Frequency Response: 50 Hz ÷ 20000 Hz
  • Max SPL @ 1m: 130 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 70°
  • Transducers
  • Compression Driver: 1 x 1.0'', 1.75'' v.c
  • Woofer: 12'', 2.5'' v.c
  • Input/Output Section
  • Input signal: bal/unbal
  • Input connectors: Combo XLR/Jack
  • Output connectors: XLR
  • Input sensitivity: -2 dBu/+4 dBu
  • Processor Section
  • Crossover Frequencies: 1600 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Power Section
  • Total Power: 2100 W Peak
  • High frequencies: 700 W Peak
  • Low frequencies: 1400 W Peak
  • Cooling: Convection
  • Connections: Powercon TRUE1 TOP IN/OUT
  • Standard Compliance
  • Safety agency: CE compliant
  • Physical Specifications
  • Cabinet/Case Material: Plywood
  • Handles: 1 on side and 1 on top
  • Pole mount/Cap: Yes
  • Grille: Steel
  • Color: Black
  • Size
  • Height: 12.6"
  • Width: 24.41"
  • Depth: 15.51"
  • Weight: 44.09 lbs

Features

  • Up to 130 dB Sound Pressure Level
  • 2100W Class-D bi-amplification
  • 50-20000 Hz linear frequency response
  • 1.75" Compression Driver
  • 12" Woofer
  • FiRPHASE zero degrees phase technology
  • Bass Motion Control woofer excursion management
  • 70°x100° Constant Directivity Coverage Angle
  • Perfectly tailored for horizontal or vertical deployment
