Item #1572512 Model #13000731

RCF TT808-AS Active Dual 8" Subwoofer Standard

Sorry, this item is not available.

A professional active subwoofer with high SPL levels at low frequencies.

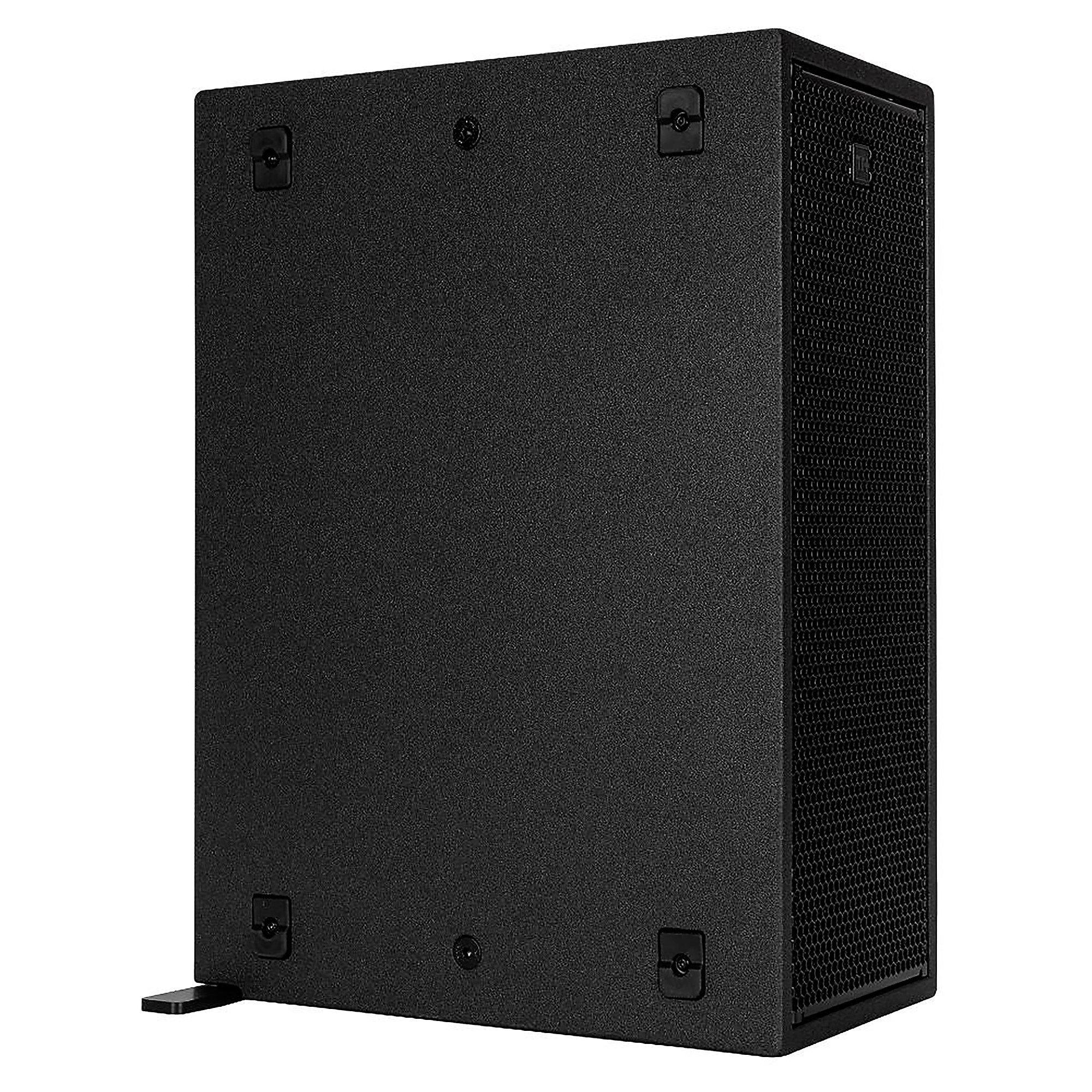

RCF's TT 808-AS is a compact low-profile high-performance active subwoofer. It features two vented-loaded 8" cone woofers powered by a 1000 Watts two-channel amplifier (one for each woofer) on a baltic birch plywood cabinet painted with black polyurethane and weatherproof treatment. Management and tuning are available via RDNet software or using the two preset buttons, a polarity button and a variable delay accessible from the back panel. The cabinet features rubber feet on two sides and two threaded pole-mounts for horizontal and vertical placement. Two stabilizing brackets make the vertical placement stable and firm. TT 808-AS can be used stand-alone, in subwoofer arrays, or as the low-frequency complement for TT 515-A speaker.
Specifications
  • Frequency response: 40 Hz ÷ 400 Hz
  • Max SPL @ 1m: 129 dB
  • Woofer: 2 x 8'' neo, 2.5'' v.c
  • Input signal: Bal/unbal
  • Input connectors: XLR, RDNet Ethercon
  • Output connectors: XLR, RDNet Ethercon
  • Input sensitivity: -2 dBu/+4 dBu
  • Protections: Excurs.
  • Limiter: Fast limiter
  • Controls: Gain, Equalization, ByPass on board
  • RDNet: Yes
  • Total power: 2000 W Peak, 1000 W RMS
  • Low frequencies: 2000 W Peak, 1000 W RMS
  • Cooling: Convection
  • Connections: Powercon IN/OUT
  • Cabinet/case material: Baltic birch plywood
  • Grille: Steel
  • Color: Black
  • Dimensions (LxWxH): 16.93" x 23.76" x 9.59"
  • Weight: 44.09 lb.

Features

  • 129 dB max SPL
  • 40 Hz to 400 Hz frequency range
  • 1000 W RMS Class-D Amplifier
  • 2 x 8'' neodymium woofers, 2.5'' v.c
  • RDNet on board
  • Bass Motion Control excursion management
  • Flexible Rigging
  • Rotatable TT+ Logo
