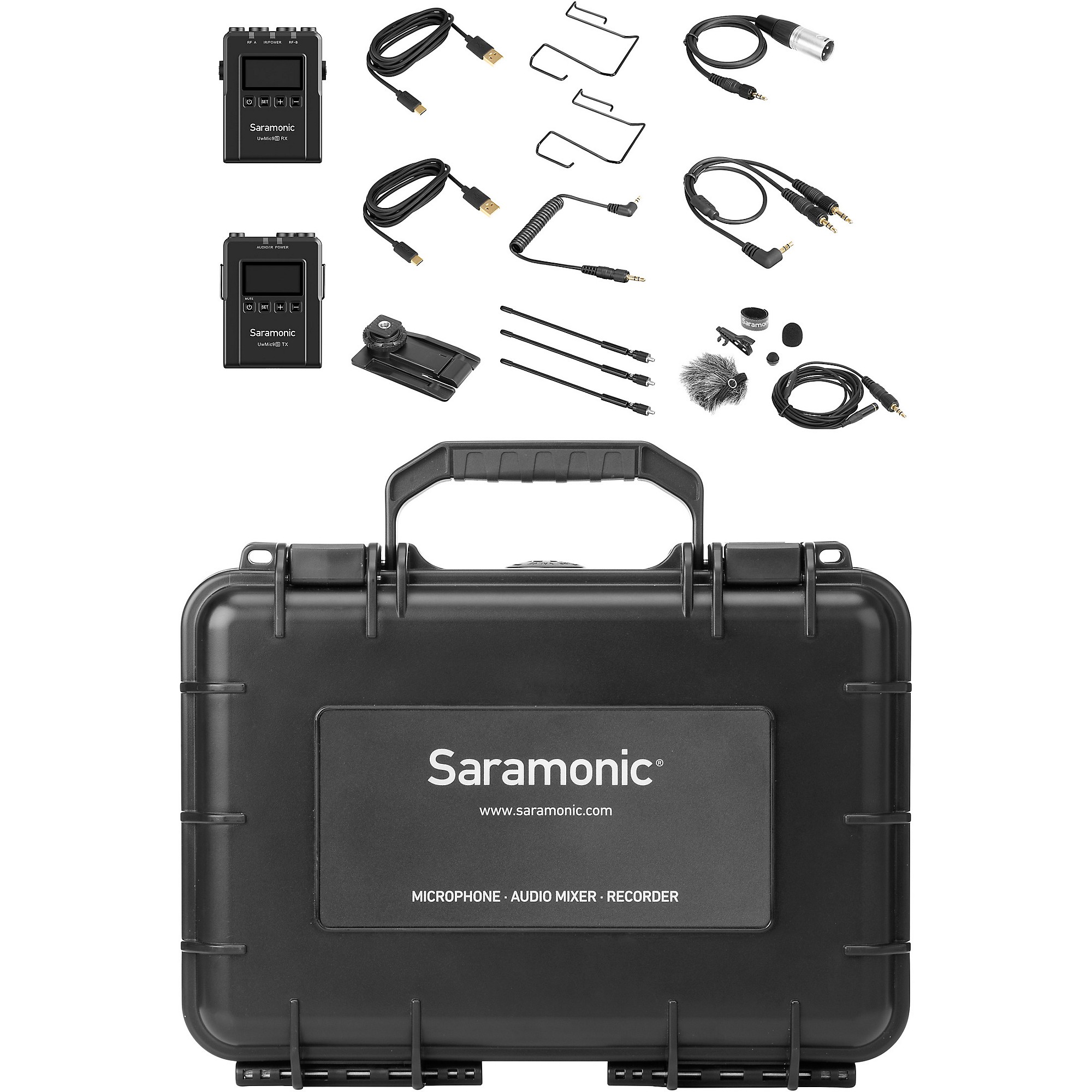

Saramonic UwMic9S Kit 1 Advanced Wireless UHF Lavalier System

  • Item # 1557623
  • Model # UWMIC9S-KIT1

The Saramonic UwMic9S Kit 1 is an advanced dual-channel, camera-mountable UHF wireless lavalier system that delivers broadcast-quality sound. It enables you to use up to two wireless transmitters with… Learn More

$329.00

Reserve Now! This item is backordered but it is available to reserve now. You will not be charged until the item ships.

Ship to Store

2-7 business days

A professional and powerful wireless lavalier system.

The Saramonic UwMic9S Kit 1 is an advanced dual-channel, camera-mountable UHF wireless lavalier system that delivers broadcast-quality sound. It enables you to use up to two wireless transmitters with a single compact receiver by adding an additional transmitter (sold separately).Perfect for all types of cameras, recorders, mixers and interfaces with either 3.5 mm or XLR microphone inputs. Ideal for capturing interviews, film dialogue, field recording, broadcast TV, news gathering, vlogging, YouTube videos and so much more. Every component features sturdy, yet lightweight metal construction, and the entire system is neatly packaged in a rugged, watertight and impact-proof hardcase. The UwMic9S delivers premium, professional sound quality and flexibility in a remarkably priced package.Next generation of the UwMic9 with new, professional featuresThe UwMic9S Kit 1 is the next generation of the dual-channel wireless system that changed the industry. Upgraded in every way, it combines the ease of use, industry-leading flexibility and value of the original system with a newly engineered design, high-quality lavalier, Li-ion power with extended battery life, external mic/line input on the receiver, 360˚ positionable whip antennas, higher quality sound, included waterproof hardcase, 33.5% lighter system weight and an impressive list of many other new pro features that set it far apart from the original UwMic9 system and any competitor in its class.Professional sound, power and performance with simplicityDesigned for demanding professionals with the sound quality, performance and power that pros need—but is so easy to use, even beginners can use it right out of the box. It features an impressive operating range of up to 330' and a system battery runtime of up to eight hours, giving users the range and power needed for professional applications. Vivid and easy-to-read OLED displays on the transmitter and the receiver let you make quick adjustments to the intuitive menus in the brightest or darkest environments. It also features two banks of 96 channels, enabling you to run multiple systems simultaneously and features auto frequency scan and infrared syncing.Remarkably flexible transmittersThe TX9S transmitter features dedicated locking 3.5 mm mic and line-level inputs, allowing you to transmit microphones or line-level signal wirelessly. It also provides plug-in power to microphones, and the nine-step input gain control lets you get perfect levels every time. This makes the system tremendously versatile, allowing you to connect it to virtually any audio source. You can use the included DK3A lavalier or a mini shotgun microphone, headset microphone or any 3.5 mm TRS mic. Connect the line-level input to mixers, music players or any line-level device output you want to transmit wirelessly to the receiver. You can even transmit both mic and line signals simultaneously. The transmitter features a 2000mAh Li-ion battery with up to 10-hour runtime and a USB-C power port to charge—or even charge and power while in use. It also features a selectable High/Med/Low RX transmission power output setting, allowing users to conserve batteries and control wireless intermodulation.DK3 premium lavaliers includedIncluded is the DK3A high-quality 4 mm omnidirectional lavalier microphone, designed to greatly enhance the sound quality of your productions with its excellent sonic performance. Specially tailored for dialogue, it delivers a crisp, full-frequency response and superior vocal intelligibility. It features 360 degrees of sound pickup, ideal for capturing natural-sounding dialogue for video productions, interviews, speech and many other applications. Deigned with a premium, professional look, it looks great on camera and is easily concealed. Also included is a lavalier accessory suite with two alligator-style mic clips, a metal mesh windscreen, two fitted foam windscreens, two furry high-wind windscreens and a cable wrap.Versatile, portable dual receiver with advanced connectivity and functionalityThe RX9S dual camera-mountable receiver features a dizzying array of input and output options, allowing users to maximize their recording capabilities. It features a 3.5 mm mic/line input with a 16-step level control and plug-in power, enabling users to mix in an external mic, mixer or audio source. A 3.5 mm headphone output lets you monitor the sound in real time, even if your camera or device lacks a headphone output. It features two locking 3.5 mm outputs and includes three output cables: a dual-locking 3.5 mm TRS to right-angle 3.5 mm TRS, a locking 3.5 mm TRS to 3.5 mm TRS cable, and a locking 3.5 mm TRS to XLR male cable, allowing the system to work perfectly with cameras, recorders, mixers, interfaces and so much more. A selectable mono/stereo output lets you control how the audio is recorded and a selectable 150Hz low-cut filter to eliminate excessive low-frequency rumble and noise. The 2000mAh Li-Ion battery provides up to eight-hour runtime and a USB-C power port to charge or even charge and power while in use and physical group A & B power switches allow users to easily conserve power when using only one transmitter.An incredibly powerful and expanding wireless systemThe UwMic9S Kit 1 is one of the most feature-packed UHF wireless lavalier systems on the market today. It offers innovative features, performance and flexibility that set it apart from competition, while delivering crystal-clear professional sound. Optional handheld microphone, and micro belt pack transmitters with XLR plug-ins, and smartphone-, micro camera- and 4-channel camera-mountable receivers are to be available for this expanding system. This makes it an ideal choice for demanding professionals and content creators that need an advanced, full-featured, professional UHF wireless system at an excellent value. Order the UwMic9S kit 1 now.

Features

  • Advanced wireless UHF lavalier microphone kit with a dual-channel camera-mountable receiver that provides premium, broadcast-quality sound
  • Expandable by adding a second transmitter
  • Belt pack transmitter features dedicated microphone and line-level inputs, nine-step input gain control, up to 10-hour 2000mAh Li-ion power with USB charging/powering and more
  • Dual receiver features headphone out, mic or line-level input, two dedicated outputs with four output cables, up to 2000mAh 8-hour Li-ion power with USB charging/powering and more
  • Includes the DK3 high-quality lavalier for premium sound with vital accessories: two mic clips and a cable wrap with a metal-mesh, two foam and two furry high-wind windscreens
  • 330' range with 360˚ antennas, auto-scan, infrared syncing, vivid OLEDs and hard case

Technical Specification

Saramonic UwMic9S Kit 1 Advanced Wireless UHF Lavalier System

  • RX9S Receiver
  • Channels: Two banks of 96 channels
  • Channel groups: A & B
  • Oscillator type: PLL synthesizer
  • Audio output connectors: Two 3.5 mm locking type (A & B outputs)
  • Headphone output: 3.5 mm locking type
  • Microphone/line-level input connection: 3.5 mm locking type
  • Antenna: 1/4" wire antenna
  • Audio output level: -60dBV
  • Headphone output level: 30mW (16 ohms)
  • Receiver frequencies: 514MHz–596MHz
  • Receiver sensitivity: -95dBm
  • Signal-to-noise ratio: 75dB or more
  • Reference deviation: ±5kHz (-60dBV, 1kHz input)
  • Frequency response: 40Hz to 18kHz (+/-3dB)
  • Distortion: 0.2% or less
  • Spur suppression: -60dB
  • Reference audio input level: -60dBV (mic input, 0dB attenuation)
  • Built-in battery capacity: 2000mA
  • Power requirements: Built-in Li-ion battery or USB-C DC 5V
  • Continuous runtime: 8 hours
  • Dimensions: 8.66" x 2.52" x 0.98"
  • Weight: 6.8 oz.
  • Operating temperature: 32°F to 122°F
  • Storage temperature: -4°F to +131°F
  • TX9S Transmitter
  • Channels: 96 channels
  • Channel groups: A & B
  • Oscillator type: PLL synthesizer
  • Carrier frequencies: 514MHz–596MHz
  • Reference deviation: ±5kHz (-60dBV, 1kHz input)
  • Signal-to-noise ratio: 75dB or more
  • Spur suppression: -60dB
  • Microphone-level input steps: -4dB, 0dB, +4dB, +6dB, +8dB, +12dB, +15dB, +18dB, +20dB
  • Line-level input steps: -14dB, -10dB, -7dB, -4dB, -2dB, +2dB, +5dB, +8dB, +10dB
  • Voice delay: 12ms
  • Antenna: 1/4" wire antenna
  • Microphone input connector: 3.5 mm locking type
  • Line-level input connector: 3.5 mm locking type
  • Reference audio input level: -60dBV (mic input, 0dB attenuation)
  • Distortion: 0.2% or less
  • Built-in battery capacity: 2000mA
  • Power requirements: Built-in Li-ion battery or USB-C DC 5V
  • Continuous runtime: Up to 10 hours
  • Dimensions: 8.66" x 2.52" x 0.98"
  • Weight: 5.5 oz
  • Operating temperature: 32°F to 122°F
  • Storage temperature: -4°F to +131°F
  • DK3A Lavalier
  • Acoustic principle: Electret condenser
  • Polar pattern: Omnidirectional
  • Sensitivity: -40±2dB (1kHz 0dB=1V/Pa)
  • Frequency range: 20Hz to 18kHz
  • Signal-to-noise ratio: More than 58dB
  • Operating temperature: -4°F–140°F
  • Connector: Gold-plated locking 3.5 mm
  • Cable length: 70.87"
  • SR-C6 Case
  • Material: Polypropylene
  • Weight: 1.4 lb.
  • External dimensions: 9.88" x 7.46" x 3.64"
  • Interior dimensions: 9.17" x 6.02" x 3.15"
  • Interior padding: Pre-cut foam
  • Rated: IP67 (1-meter submersion for up to 30 minutes)
  • Temperature rating: -40 to +210°F
