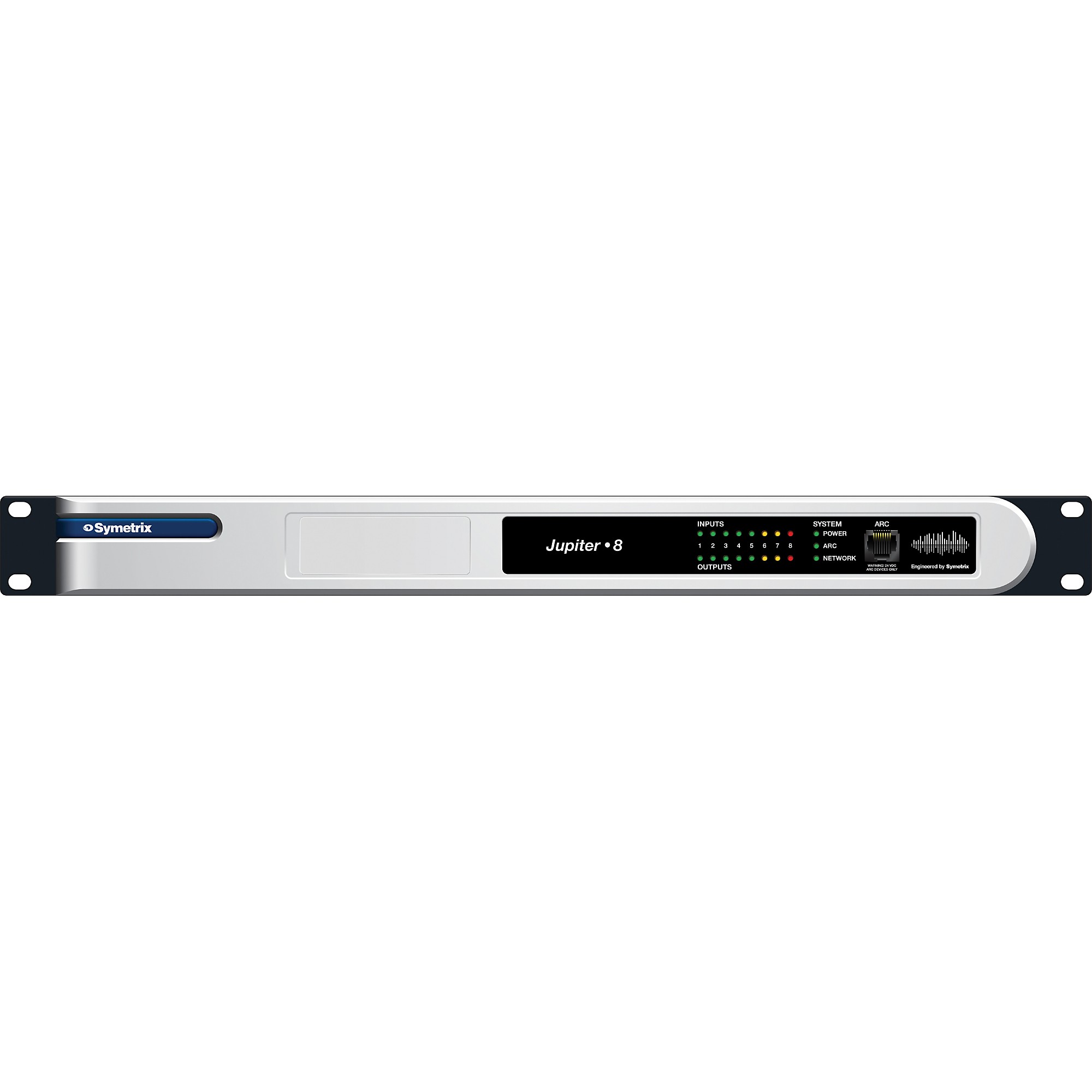

Symetrix Jupiter 8 Digital Signal Processor

  • Item # 1099331
  • Model # Jupiter 8

Symetrix Jupiter packages powerful DSP into a zero learning curve, turn-key audio processing solution drawing its inspiration from the ˜apps' paradigm of smartphones such as the iPhone. Standing on th… Learn More

$1,735.00

Reserve Now! This item is backordered but it is available to reserve now. You will not be charged until the item ships.

Ship to Store

2-7 business days

Apps-based monitor management and DSP system with zero learning curve.

Features

  • A turnkey audio processing solution utilizing downloadable ˜apps' optimized for specific venues and systems
  • App categories include mixing and routing, public address and distribution, sound reinforcement, and special purpose signal processing
  • Pre-designed apps greatly reduce installation time
  • Three hardware versions: 4 inputs + 4 outputs (Jupiter 4), 8 inputs + 8 outputs (Jupiter 8), 12 inputs + 4 outputs (Jupiter 12)
  • 2 external control inputs and 4 logic outputs

Technical Specification

Symetrix Jupiter 8 Digital Signal Processor

  • Sample Rate: 48kHz.
  • Frequency Response: 20Hz - 20kHz, +/- 0.5 dB
  • Dynamic Range: > 110dB (A-Weighted), input to output
  • THD+Noise: < -85dB (un-weighted); 1kHz @ +22dBu with 0dB gain
  • Inter-channel Crosstalk: < -90dB @ 1kHz, typical
  • Latency: < 1.6ms, input to output with all DSP inactive
  • Number of Inputs: 8 switchable balanced mic or line level on Jupiter Connectors: 1/8" (3.81 mm) terminal blocks
  • Nominal Input Level: +4dBu line or -36dBu mic level (software selectable) with 20dB of headroom
  • Mic Pre-amp Gain: +40dB
  • Input Trim: +/- 24dB
  • Maximum Input Level: +23dBu
  • Input Impedance: > 18k ohm balanced, > 9k ohm unbalanced, > 2k ohm with phantom power engaged
  • CMRR: > 50dB @ 1kHz, unity gain
  • Mic Pre-amp EIN: < -125dBu, 22Hz - 22kHz, 100 ohm source impedance
  • Phantom Power: +20 VDC, 20 mA maximum per input.
  • Number of Outputs: 8 switchable balanced mic or line level on Jupiter
  • Connectors: 1/8" (3.81 mm) terminal blocks
  • Nominal Output Level: +4dBu line level with 20dB of headroom
  • Unbalanced configuration results in 6dB lower output level
  • Maximum Output Level: +24dBu
  • Output Impedance: 200 ohm balanced, 100 ohm unbalanced
