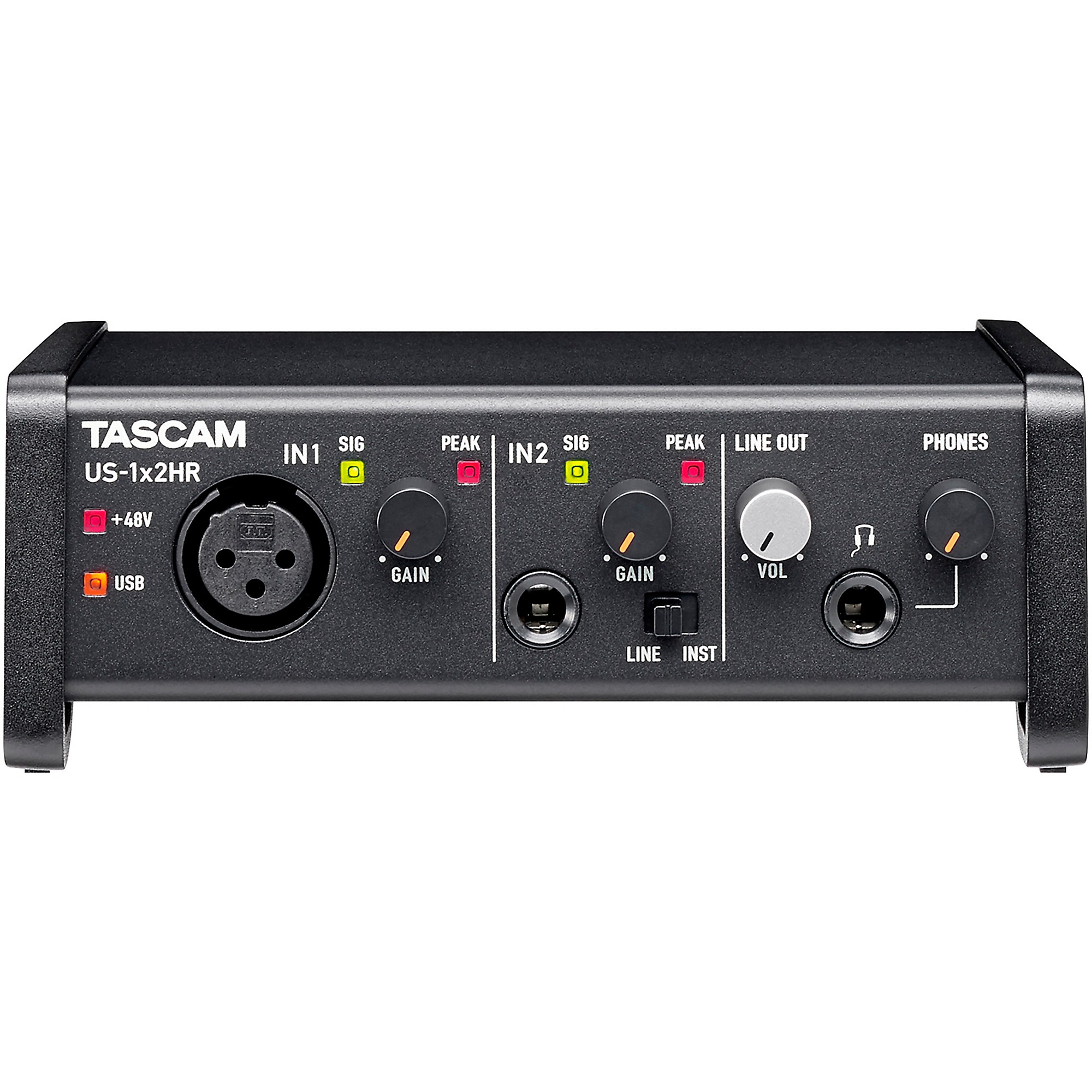

Tascam US-1X2HR 2-Channel USB Audio Interface

  • Item # 1545460
  • Model # US-1X2HR

1 XLR mic input and 1 TRS line/guitar input audio interface with 192kHz support and USB-C bus power connection. The included loopback function and OBS support makes this interface an excellent choice… Learn More

$119.00

Availability: In Stock & Ready to Ship

Ship to Store

2-7 business days

1 mic, 2-in/2-out high-resolution versatile USB audio interface.

1 XLR mic input and 1 TRS line/guitar input audio interface with 192kHz support and USB-C bus power connection. The included loopback function and OBS support makes this interface an excellent choice for podcasts and livestreaming. The US-1x2HR offers simple and intuitive operation, sophisticated looks, a rich assortment of software bundles and improved audio performance, thanks to the newly enhanced audio circuit. For guitar and vocal recording musicians. Order today.

Features

  • 2-in/2-out USB audio interface
  • Supports up to 24-bit/192 kHz audio formats
  • Improved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability (Windows: TASCAM native driver)
  • 1 XLR input equipped with Ultra-HDDA mic preamp and +48V phantom power
  • 1 TRS line/inst. input
  • RCA line L/R inputs
  • RCA line L/R outputs
  • 1 headphone output
  • USB Type-C connection (USB Type-A to Type-C cable included)
  • Powered by USB bus power
  • Zero-latency direct monitoring
  • Compatible with iPad and other iOS devices
  • Extensive line-up of bundled software
  • Steinberg Cubase LE, Cubasis LE 3
  • IK Multimedia Sample Tank 4 SE
  • Antares AUTO-TUNE UNLIMITED (available free of charge up to 3 months)
  • Stereo/mono selectable loopback function (Windows, Mac, iOS, iPad OS)
  • OBS support

Technical Specification

Tascam US-1X2HR 2-Channel USB Audio Interface

  • Sampling frequency
  • 44.1k/48k/88.2k/96k/176.4k/192kHz
  • Quantization bit rate
  • 24-bit
  • MIC IN (IN 1) Connector
  • XLR-3-31 (1:GND, 2:HOT, 3:COLD), BALANCED
  • Input impedance
  • 2.4k ohms
  • Maximum input level
  • (GAIN:MIN) +9dBu (2.183Vrms)

Gain

  • 58dB
  • LINE/INST IN(IN 2)
  • LINE IN

Connector

  • 6.3 mm (1/4") TRS-jack (T:HOT, R:COLD, S:GND), BALANCED
  • * When set to "LINE" at LINE/INST switch
  • Input impedance
  • 0k ohms

Maximum input level (GAIN:MIN) +20dBu (7.75Vrms)

  • 45dB
  • INST IN
  • Connector 6.3 mm(1/4") TS-jack (T:HOT, S:GND), UNBALANCED
  • * When set to "INST" at LINE/INST switch
  • Input impedance
  • 1M ohms or more
  • Maximum input level
  • (GAIN:MIN) +3dBV (1.1425Vrms)
  • 45dB

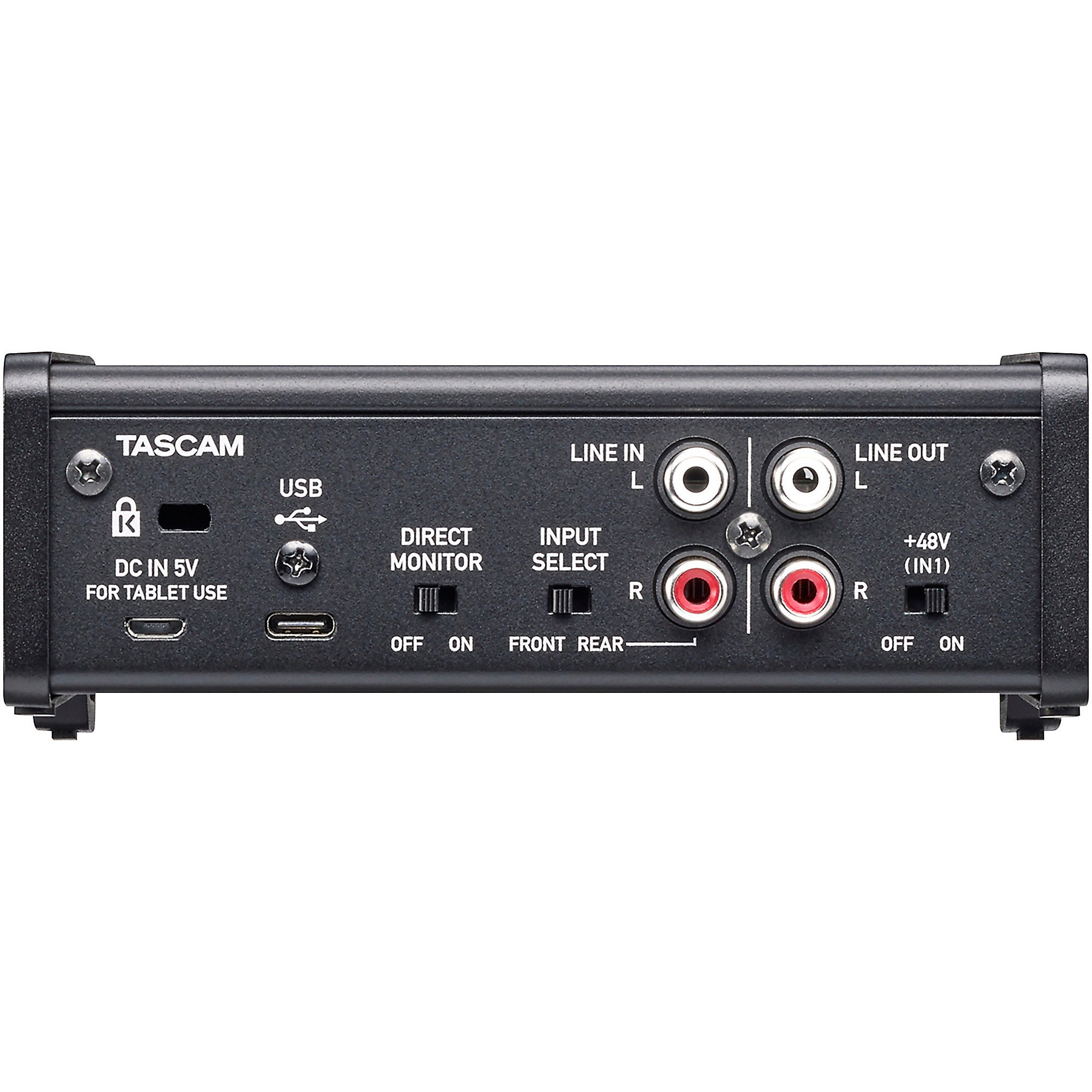

LINE L/R IN Connector

  • RCA pin-jack, UNBALANCED
  • Input impedance
  • 10k ohms
  • Maximum input level
  • +6dBV(1.9953Vrms)
  • Analog audio outputs
  • LINE OUT
  • Connector
  • RCA pin-jack, UNBALANCED
  • Output impedance
  • 100 ohms
  • Maximum output level
  • +6dBV (1.995Vrms)
  • PHONES
  • Connector
  • 6.3 mm (1/4") stereo phone jack
  • Maximum output level
  • 18mW+18mW or more
  • (THD+N 0.1% or less, 32 ohms loaded)
  • Control IN/OUT
  • USB
  • Connector
  • USB Type-C
  • Format
  • USB 2.0 HIGH SPEED (480Mbps)
  • DC IN 5V
  • Connector
  • USB Micro B type

Power

  • When connected PC USB bus powered
  • When connected iOS USB power adapter (that can supply 5V and a current of at least 700mA)*1
  • External battery pack (that can supply 5V and a current of at least 700 mA)*2
  • Power consumption
  • 1.8W
  • Dimensions (WxHxD)
  • 146 × 55 × 120 mm (including protrusions)

Weight

  • 623g
  • Operating temperature
  • 5 to 35°C
  • *Strongly recommend using TASCAM PS-P520E AC adapter or the USB power adapter included with the iPad/iPhone. No USB power adapter is included with an iPod touch. To use it with an iPod touch, purchase a genuine Apple USB power adapter (that can supply 5V and a current of at least 700mA) separately.
  • *2 We strongly recommend using a TASCAM BP-6AA external battery pack. If using another external battery pack or mobile battery, purchase one that can supply 5V and a current of at least 700mA.

Computer system requirements

  • Windows
  • Compatible computers Windows computer with a USB 2.0 (or higher) port
  • CPU type/speed 2GHz or faster dual core processor (x86)
  • Memory 2GB or more
  • Driver ASIO ASIO2.0, WDM
  • Mac
  • Compatible computers Mac with a USB 2.0 (or higher) port
  • CPU type/speed 2GHz or faster dual core processor
  • Memory 2GB or more
  • Driver Core Audio
  • iOS/iPadOS divice
  • Driver
  • Core Audio
  • Supported OS'
  • Windows
  • Windows 10 (October 2020 Update) New , Windows 8.1 , Windows 7
  • Mac
  • macOS Big Sur New , macOS Catalina , macOS Mojave , macOS High Sierra (10.13) iOS
  • iPadOS 14 New , iOS 14 New , iPadOS , iOS 13 , iOS 12
  • Accessories
  • USB cables (Type-A to Type-C)
  • Set of DAW software installation guides
  • Set of DAW plug-in software installation guides
  • Owner's Manual (including warranty)
