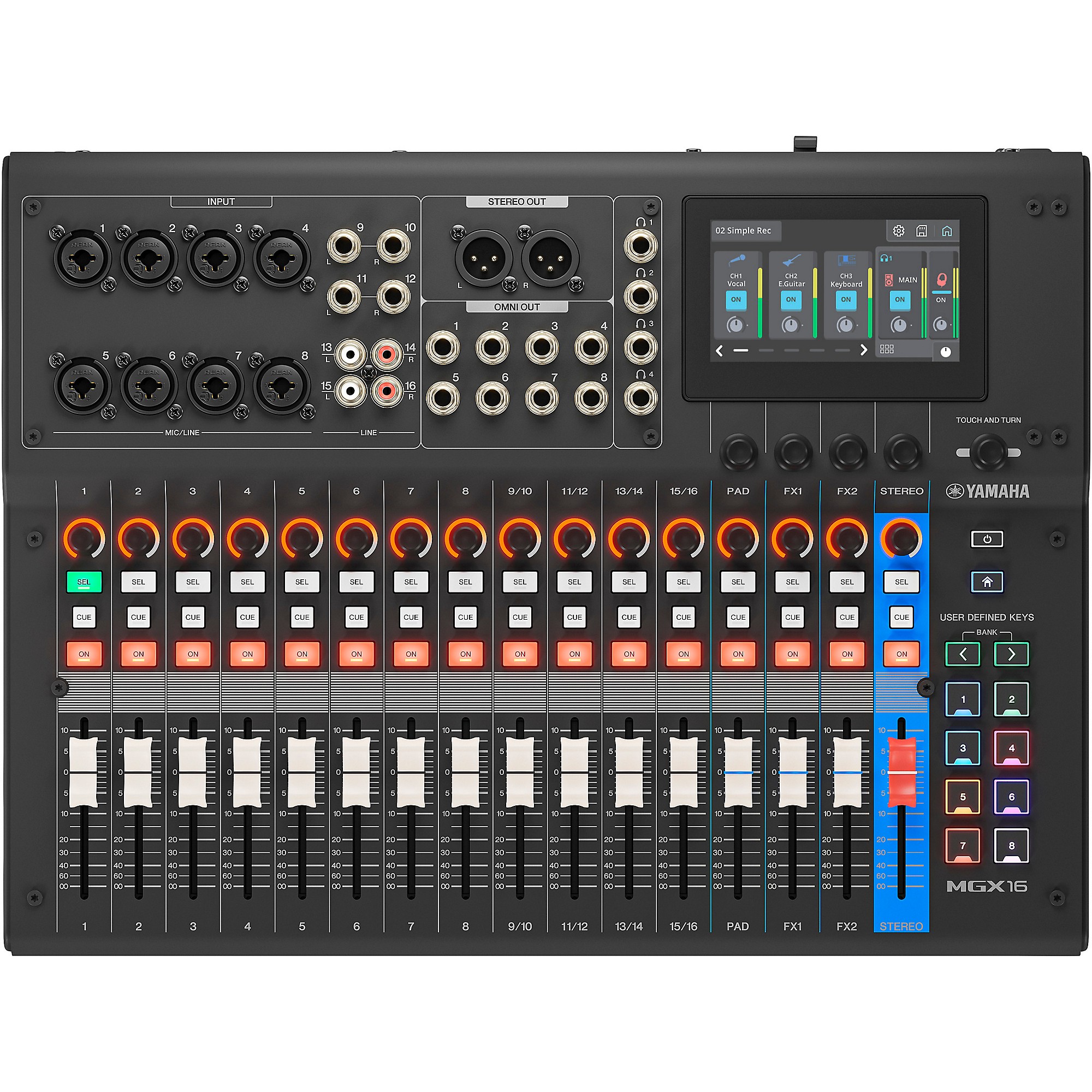

Designed to handle larger, more demanding audio workflows with speed and confidence, the Yamaha MGX16 22-channel digital mixer combines expanded channel capacity, professional DSP and intuitive digital control in a streamlined mixing console. A responsive 4.3" color touchscreen, 15+1 fader layout and 22-channel mixing with extensive analog I/O allow the MGX16 to adapt easily to live sound, installed venues, podcasting, streaming and studio recording. Dual USB audio interfaces enable flexible multitrack recording and streaming, Bluetooth audio input supports modern playback needs and onboard microSD recording provides reliable backup capture. Paired with Yamaha’s renowned MG-series “True Sound” quality and assistive tools such as Auto Gain, Clip Safe and Scene Recall, the MGX16 delivers powerful, professional mixing capability without slowing down the workflow. This is the black version.
Touch-Controlled Digital Mixing With Expanded Channel Capacity
At the center of the MGX16 is Yamaha’s “Touch and Turn” operating concept, pairing a 4.3" color touchscreen with five dedicated control knobs and a 15+1 non-motorized fader configuration. This hybrid interface delivers fast, confident access to channel processing, routing and effects while preserving the tactile feel engineers expect. With eight mono inputs, four stereo channels, FX returns and Sound Pad integration, the MGX16 accommodates larger ensembles, multi-mic applications and layered playback sources without compromising operational speed.
Professional DSP and Assist Tools for Consistent Results
Every channel on the MGX16 benefits from Yamaha’s comprehensive DSP suite, including EQ, gate, compression and the Sweet Spot Morphing Channel Strip for intuitive tone shaping. Streaming-focused tools such as ducking, multiband compression and output-stage processing help maintain clear, controlled levels for broadcast and online content. Assistive features, including Auto Gain, Clip Safe, Simple/Standard modes and Scene Recall, reduce setup time and minimize errors—making the MGX16 effective for both experienced engineers and fast-paced production environments.
Flexible Connectivity and Multitrack Recording Integration
Built for hybrid workflows, the MGX16 offers extensive connectivity and recording options. Dual USB ports provide a 22-in/22-out 32-bit/96kHz MAIN interface for multitrack recording, alongside a secondary 2-in/2-out USB SUB interface for streaming or auxiliary routing. Bluetooth 5.0 enables wireless audio playback, while microSD recording supports up to 22-track capture and 2-track playback for backup or standalone use. With multiple mic/line inputs, stereo channels, eight TRS outputs and four headphone outputs, the MGX16 adapts readily to complex system configurations.
Customizable Sound Pads and Workflow Control
Eight onboard sound pads add both creative and operational flexibility, allowing users to trigger samples, music cues, sound effects, test tones or scene recalls directly from the mixer. The pads and assignable control banks enable deeper customization for soundcheck routines, podcast production, live events and theatrical cueing.
Expanded Sound Pad, Routing and Software Control
The latest MGX firmware update expands the workflow with more flexible Sound Pad, routing and software-integration tools. The Sound Pad Editor lets users assign audio files from a computer and trim precise start and end points, while preserving Sound Pad playback data when initializing memory. Console settings can also be saved to and recalled from a microSD card, making it easier to transfer a familiar setup between compatible MGX mixers. Stereo Send support, direct Stereo bus assignment from the Send To screen and clearer visual feedback for stereo-linked Mix buses and dynamics processors further streamline operation. The update also deepens integration with Steinberg Cubase, Nuendo and MixKey, while Basic FX Suite V4.0 makes the mixer’s onboard effects available as VST, AU and AAX plug-ins for a more consistent hardware/software production workflow.
A Complete Mixing Ecosystem for Live, Studio and Streaming
Beyond hardware, the MGX16 integrates seamlessly into Yamaha’s broader production ecosystem, including bundled Steinberg software for music creation, podcasting, editing and publishing. Lightweight yet robust, it delivers the reliability of a professional console with the flexibility of modern digital technology. For productions that require more channels, deeper routing and dependable performance across live sound, recording and streaming applications, the Yamaha MGX16 digital mixer stands as a powerful, future-ready centerpiece.
