Zoom AMS-24 Audio Interface

  • Item # 1573791
  • Model # ZAMS24

The AMS-24 from Zoom is ideal for solo streams and multi-instrument sessions, designed for musicians who want to record music with their DAW or easily livestream without typical complications. It feat… Learn More

$119.99

Reserve Now! This item is backordered but it is available to reserve now. You will not be charged until the item ships.

Ship to Store

2-7 business days

Livestream solo or multi-instrument sessions with ease.

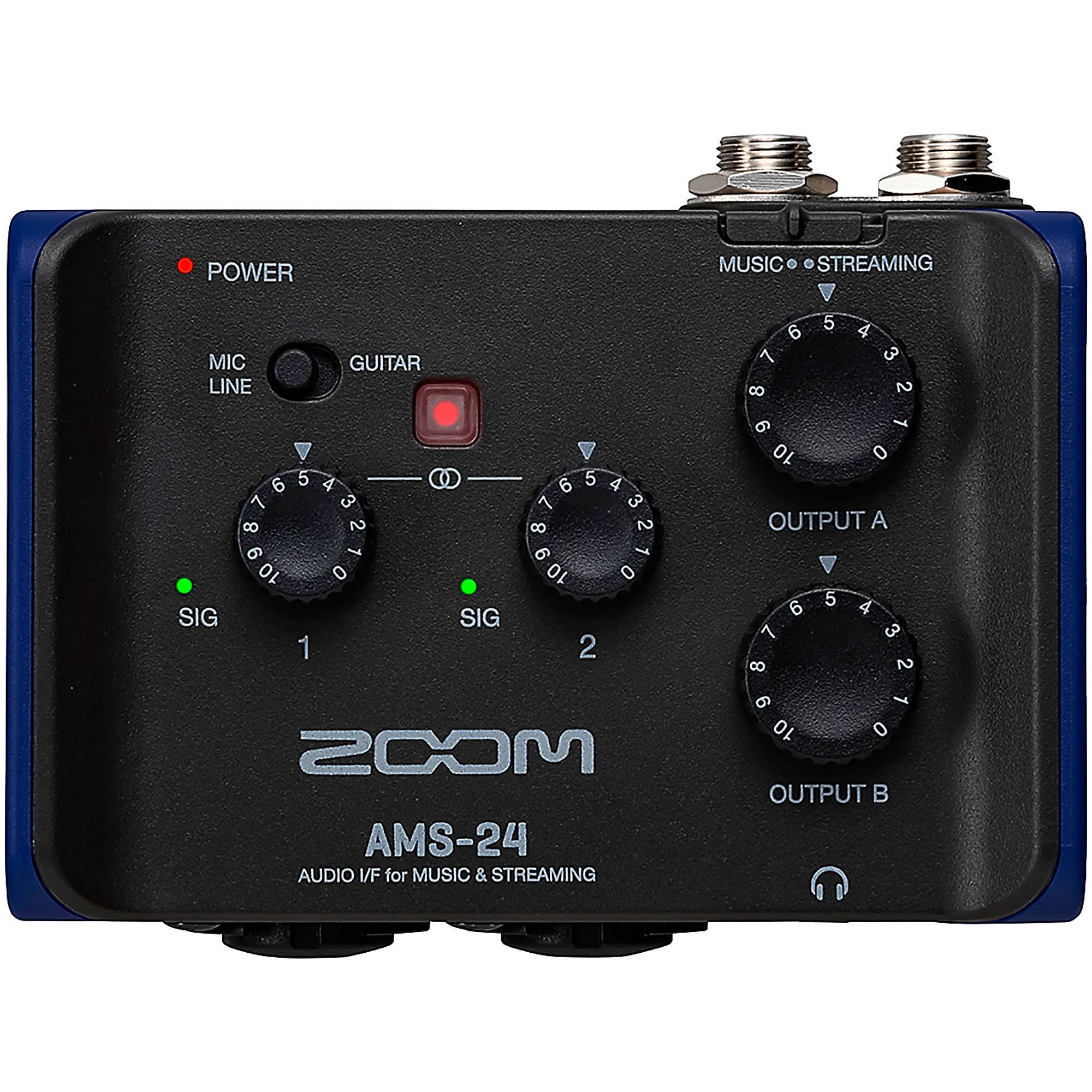

The AMS-24 from Zoom is ideal for solo streams and multi-instrument sessions, designed for musicians who want to record music with their DAW or easily livestream without typical complications. It features two XLR/TRS combo inputs along with Zoom’s low-noise preamps. Also included are two headphone outputs and two TRS outputs for external monitors. Common streaming challenges are simplified with onboard hardware switches, without the need for additional software. Toggle from recording to livestreaming with the Music / Streaming Switch. When in Music mode, each input acts independently with individual gain control. It also sends separate mixes to each headphone output. When in Streaming mode, all inputs are combined into one signal to work seamlessly with your streaming software. Use the Direct Monitor Switch to send the input signal directly to your headphones while routing the same signal to your DAW or streaming software. The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is ideal for adding background music to your stream or singing live with an instrumental track. Switch Input 1 from mic or line level to guitar level (Hi-Z) or link two inputs for stereo recording or streaming, allowing you to control both inputs with one gain knob. Plus, it provides +48V phantom power for condenser microphones.

Features

  • Includes AMS-24 USB Audio Interface, USB-C cable and a Quick Tour
  • Designed to integrate seamlessly with commonly used software, apps and platforms
  • Powered from PC or Mac via USB-C
  • 2-In, 4-out

Technical Specification

Zoom AMS-24 Audio Interface

  • Input channels: 2
  • Type: 2 x XLR/TRS combo (Input1: Hi-Z)
  • PreAmps: 2
  • Phantom power: 2
  • Output channels: 4
  • Type: 2 x TRS and 2 x Stereo 0.137" (3.5mm) jack
