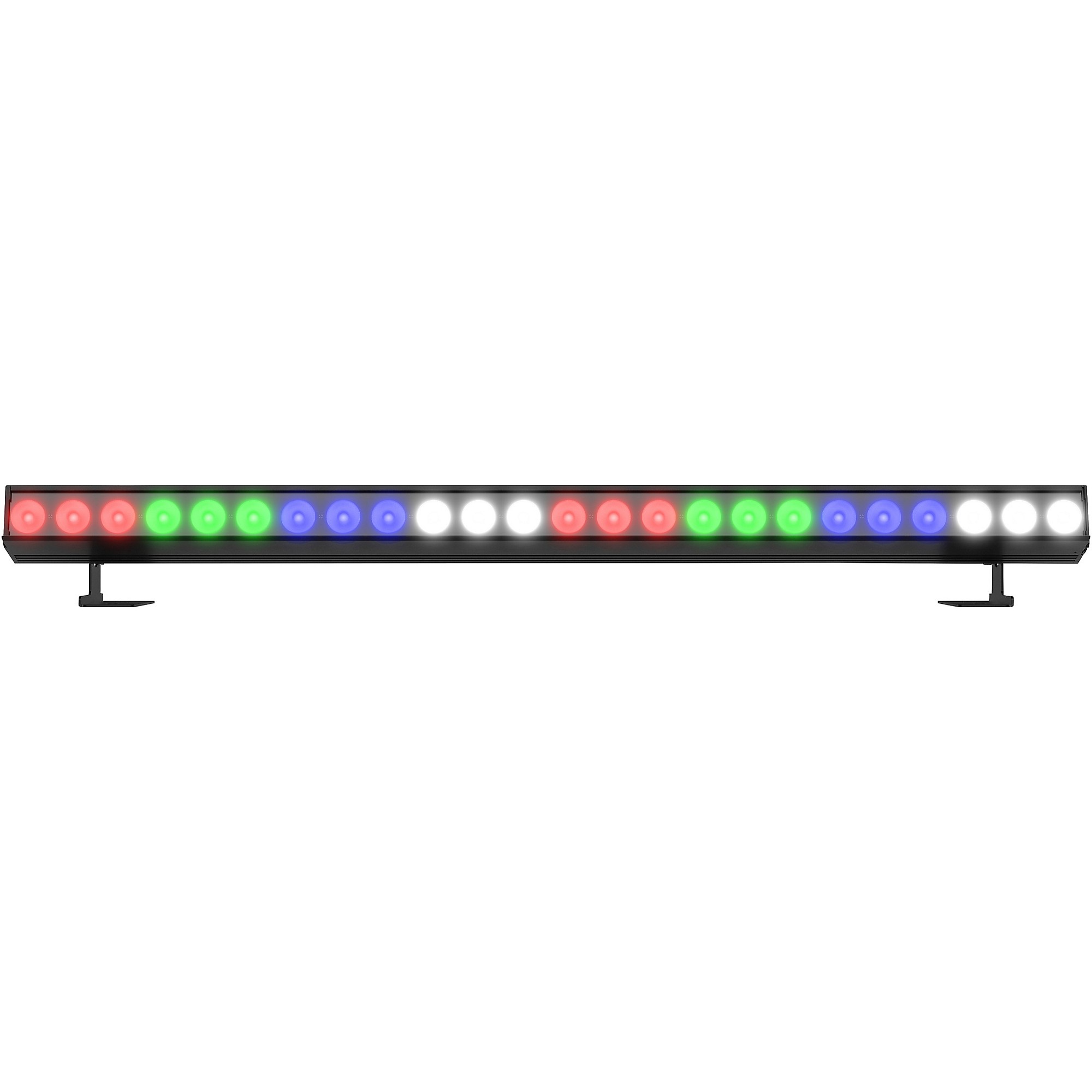

Lighting designers and event professionals need linear fixtures that deliver consistent coverage and flexible control for dynamic stage and installation environments. The CHAUVET DJ EVE B-160Q RGBW linear batten fixture features 24 quad-color LEDs with eight controllable zones for pixel-mapped chases and smooth color transitions. Preset color temperature modes simplify white light tuning, while flicker-free operation supports on-camera applications. D-Fi USB compatibility enables wireless DMX control, and powerCON-compatible input and output connections support power linking for multi-fixture setups. Designed for mobile productions, stage lighting and permanent installations, the EVE B-160Q provides adaptable performance in a streamlined linear format.

Pixel Mapping and Control Flexibility

The EVE B-160Q offers 3-, 4-, 11- or 39-channel DMX modes, allowing users to choose between simplified operation and detailed control. Eight controllable zones enable dynamic chase effects and pixel-mapped programming, while onboard strobe functionality supports rhythmic lighting sequences. D-Fi USB compatibility allows wireless master/slave or DMX control, supporting flexible placement and streamlined rigging.

Linear Design and LED Performance

Equipped with 24 quad-color LEDs, the EVE B-160Q delivers even coverage across its linear format. The 15° beam angle and 30° field angle provide focused output, while optional filter angles expand coverage when needed. Preset color temperature modes simplify white light generation without manual color blending, supporting consistent output for stage and camera use.

Installation and Mobile Rig Integration

PowerCON-compatible power input and output connections support power linking for multi-fixture setups, reducing cable runs in larger lighting rigs. The aluminum housing and linear form factor allow flexible placement along trusses, risers or stage edges. Weighing 10.4 lb., the CHAUVET DJ EVE B-160Q RGBW linear batten fixture supports efficient deployment for mobile productions, event lighting and installation environments.
