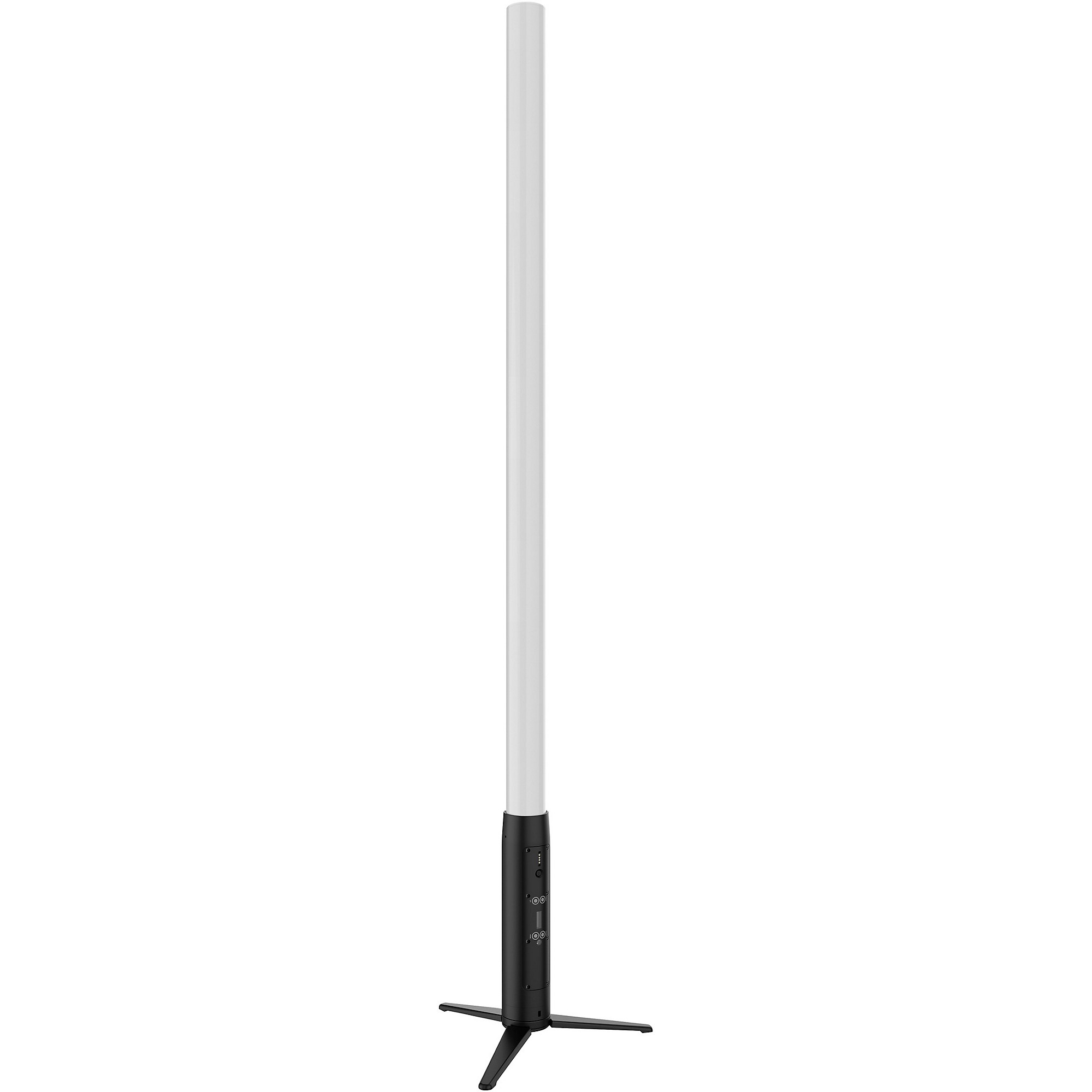

Versatile LED lighting system with 360º coverage and pixel mapping for dynamic light shows.
The CHAUVET Professional WELL STX360 4-pack provides you with a versatile set of LED sticks to enhance your stage lighting. With 360º pixel mapping and 16 individual zones of control per stick, you have the creative freedom to program eye-catching lighting effects. The high CRI LEDs render skin tones naturally for a professional appearance. Whether you want simple static colors or complex automated programs, the intuitive menu system and included IR remote put you in full control. The adjustable 3–12-hour run time ensures you have power for your entire performance. The included charging flight case keeps your WELL STX360 4-pack protected and charged for easy transport to your next gig. Update the software via the USB-C connection to unlock additional control and customization. For standalone operation or integration into an advanced DMX setup, the WELL STX360 4-pack offers a flexible solution to suit your needs.
Specifications
- Optical
- Light Source: 512 LEDs (256 RGB / 256 WW) SMD 5050, 50,000 hours life expectancy
- Color Temperature (range): 2800 to 8000K
- Color Temperature (at full): 9670K
- CRI: 91.9 @ 4000K
- Beam Angle: 360°
- Field Angle: 360°
- Illuminance (total): 5 lux @ 16.4’ (5 m) – 3 hr run time
- Lumens – Output: 1,718 lm – 3 hr run time
- Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 28Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
- Construction/Physical
- Dimensions: 59.09 x 2.75 x 2.75 in (1501 x 70 x 70 mm)
- Dimensions (charging case): 69.8 x 19.5 x 6.4 in (1773 x 495 x 163 mm)
- Weight: 9 lb (4.1 kg)
- Exterior Color: Black
- Housing Material: Aluminum alloy, Plastic
- Connections
- Power Connection (charging case): Edison (Local) plug to Seetronic Powerkon IP65
- Power Input (charging case): Seetronic Powerkon IP65
- Power Output (charging case): Seetronic Powerkon IP65
- Cable Length power (charging case): 5’ (1.5 m)
- Control
- Control Protocol: W-DMX
- DMX Channels: 4, 15, 64, or 67
- Modes/Personalities: 4 personalities
- Electrical
- Input Voltage (charging case): 100 to 240VAC, 50/60Hz (auto-ranging)
- Power Linking (charging case): 10 units @ 120V; 10 units @ 208V; 11 units @ 230V
- Power and Current (charging case): 160W, 1.324 A @ 120V, 60Hz
- Power and Current (charging case): 264W, 1.260 A @ 208V, 60Hz
- Power and Current (charging case): 268W, 1.188 A @ 230V, 50Hz
- Power and Current (charging case): 268W, 1.124 A @ 240V, 50Hz
- Battery Specifications
- Battery Type: Lithium Ion
- Rechargeable: Yes
- Battery Charge Time: 4 hours
- Battery Life: 3, 5, 8, 12 hours
- Battery Power: 18.5 V, 10.05 Ah
- Certifications/Qualifications
- Certifications: CE, FCC
- IP Rating: IP65, for temporary outdoor use
- What's Included
- (4) WELL STX 360
- True 1 style power cord with Edison plug (EU bare end)
- (1) Charging flight case
- (4) Tripod stands
- (4) Hanging eye bolts
- (1) IR Remote
- Quick Reference Guide
