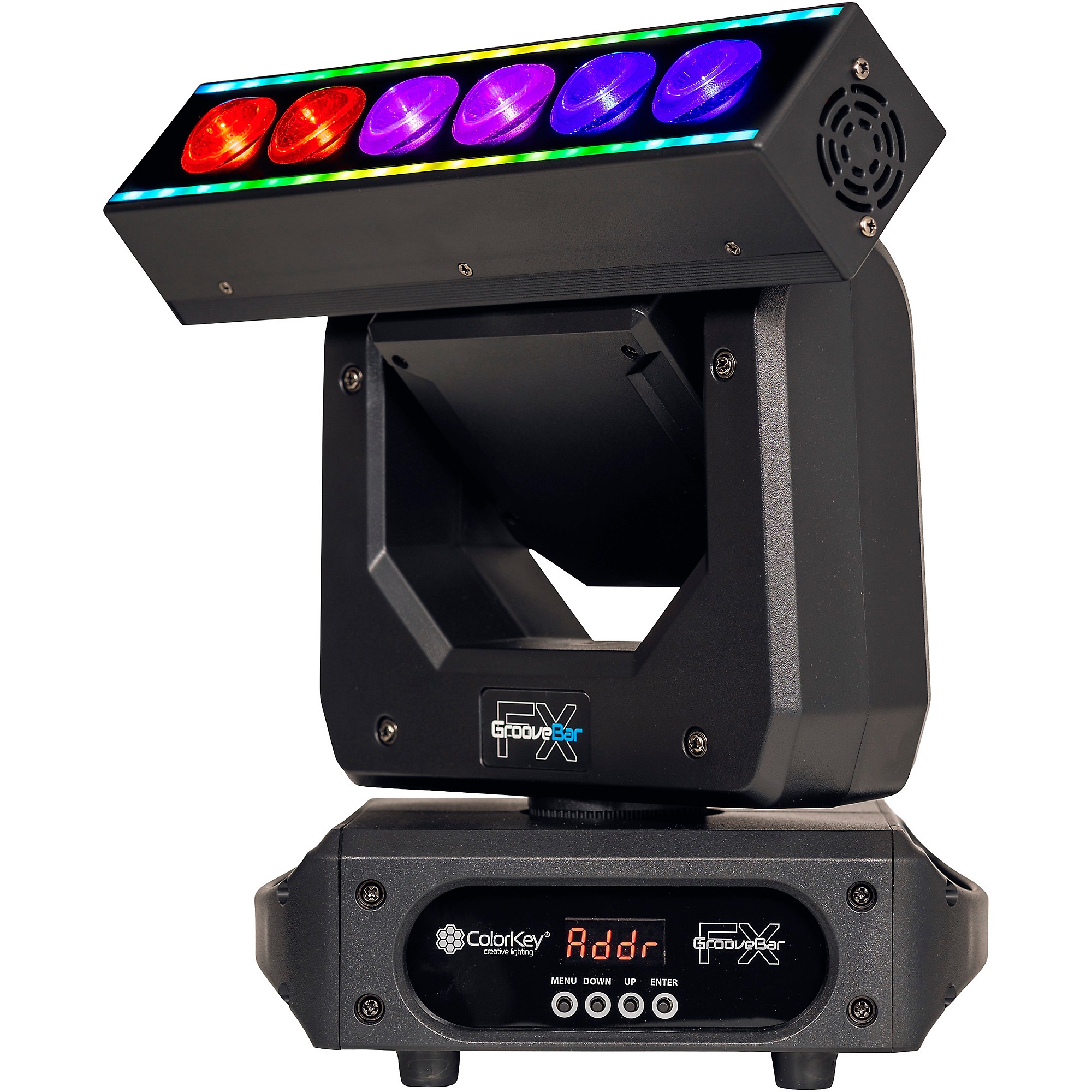

The ColorKey GrooveBar FX 6 x 20W RGBW LED moving head FX with infinite bar rotation, pixel control and dual halo strips produces a kinetic light display for stages, dancefloors and touring rigs. This moving head bar uses six 20W RGBW LEDs with a precision 3° beam angle, creating crisp beams and detailed pixel chases. The GrooveBar FX packs a powerful punch in a compact form, offering infinite head rotation for sweeping motion and dual RGB LED strip zones that add rich color halos. DMX control, built-in chase macros and sound-active modes allow users to design energetic visual effects for shows, events or mobile gigs. With full pixel mapping, users can customize every beam and strip, making this unit a standout for those who want big movement and color from a manageable fixture.

Six Independent RGBW Beams Create Punchy Pixel Effects

Six 20W RGBW LEDs form the core of this lighting unit, each with a narrow 3.4° beam angle for tight, defined output. Each LED can be controlled independently, allowing users to build custom pixel chases and beam sweeps. The result is a focused light show with precise movement, perfect for energetic club stages or mobile DJ rigs. The high illuminance of 29,200 lux at 6.5' ensures beams remain visible even in bright environments, giving designers the ability to create intense aerial effects that cut through ambient lighting.

Infinite Head Rotation Drives Dynamic Motion

Infinite head rotation enables continuous movement in both directions, producing uninterrupted sweeps and spins across the stage. The pan reaches 540° with fine adjustment, while tilt covers 180°, making it possible to direct beams exactly where needed. This feature transforms basic lighting into moving visuals that change with every cue. The spinning head effect, combined with pixel control, allows users to build multi-directional chases or synchronized sweeps, adding drama and excitement to live shows or DJ sets.

Dual RGB LED Strip Zones Offer Customizable Color Halos

Dual RGB LED strip zones run along the bar, providing secondary effects that complement the main beams. Each strip features built-in macro effects such as breath, jump, pulse and gradients, all dimmable from 0–100%. Users can program strips to react with the main LEDs or run independent color cycles, building layered effects that add depth and dimension. These strips allow for tailored color accents and unique visual signatures, making the fixture flexible for custom light shows or thematic events. The advanced FX engine includes 15 chase effects and full cycle macros, enabling creative programming for any show environment.

Road-Ready Construction Supports Rigging and Touring

The GrooveBar FX features a durable housing designed for frequent transport and installation. Weighing just 10.8 lb. and measuring 11.2" x 6.9" x 13.2", the unit mounts securely on trusses, overhead or floor setups. IEC and DMX connections provide reliable power and data transmission, while the 150W max power consumption supports long shows without overheating. The LEDs have an extended lifetime, and the robust build resists knocks and regular handling—essential for touring productions and mobile event companies.

GrooveBar FX Experience Delivers Impactful Visuals

ColorKey's moving head bar suits lighting designers and mobile DJs seeking expressive motion and bold color effects for club stages, event spaces or touring rigs. The combination of pixel control, infinite rotation and advanced chase macros supports creative programming, enabling users to energize their shows with dramatic light sweeps and vibrant halos. This fixture boosts audience engagement and helps performers build memorable visual moments with every cue.
