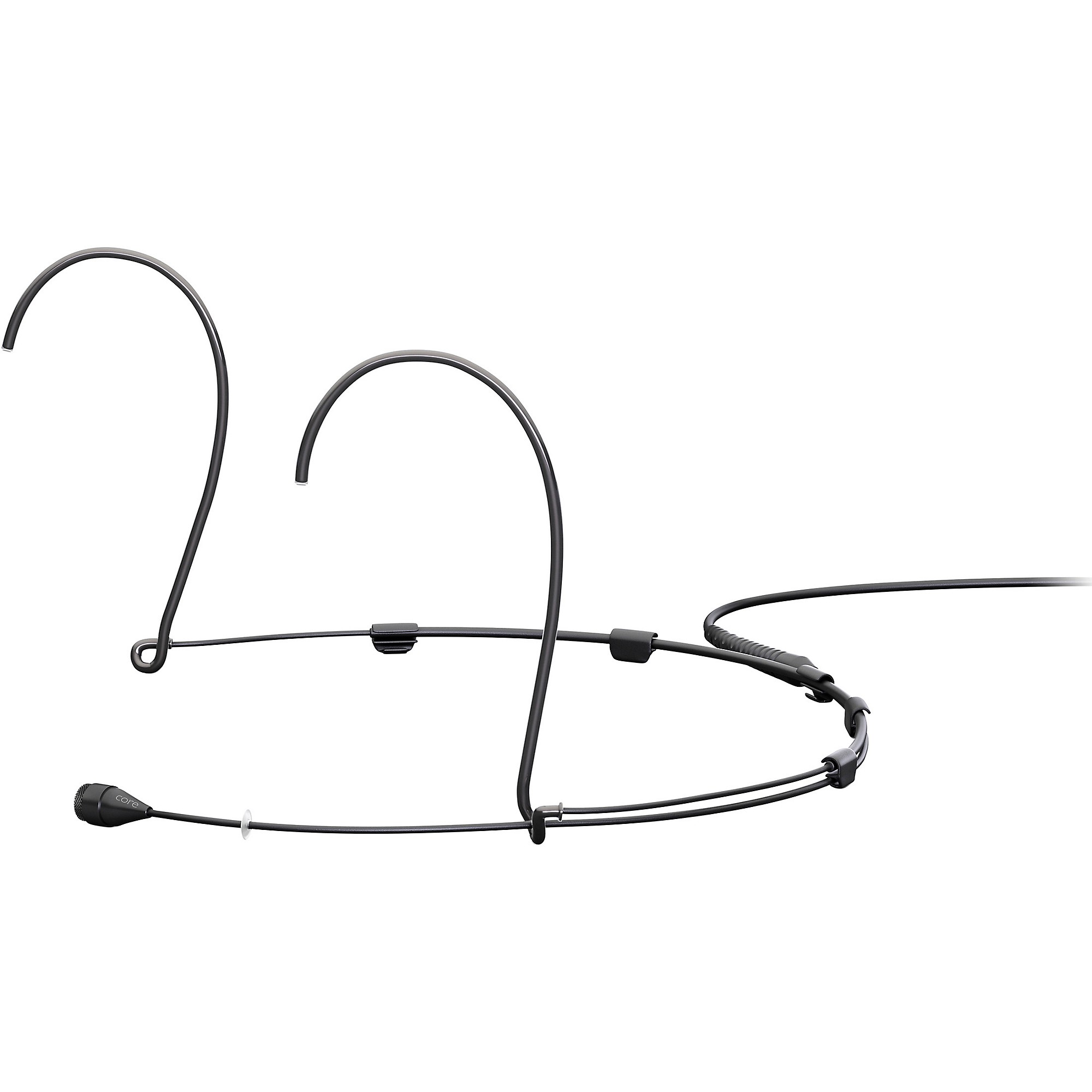

DPA Microphones 4066 CORE Omnidirectional Headset Microphone with 3-pin LEMO Connector for Sennheiser Wireless (Small)

  • Item # 1566439
  • Model # 4066-OC-A-B03-LH-S

The 4066 CORE Omnidirectional headset microphone with 3-pin LEMO connector for Sennheiser Wireless (small) from DPA Microphones offers clean and transparent sound quality with lots of headroom. The he… Learn More

$850.00

Reserve Now! This item is backordered but it is available to reserve now. You will not be charged until the item ships.

Ship to Store

2-7 business days

Clean and transparent sound quality from an omnidirectional head-worn mic.

The 4066 CORE Omnidirectional headset microphone with 3-pin LEMO connector for Sennheiser Wireless (small) from DPA Microphones offers clean and transparent sound quality with lots of headroom. The headset construction is unique with a detachable mic boom from the headset mount to switch and reattach to either the left or right side. Humidity, often an issue in theatrical applications, is not a problem due to the double-vent protection system and a drop stopper on the microphone boom. Also, the materials inside the mic are water resistant. These design elements make it very difficult for the microphone to fail due to humidity. Order the 4066 CORE Omnidirectional Headset Microphone with 3-pin LEMO connector for Sennheiser Wireless (small) today.

Features

  • Resistant to humidity
  • Double-vent protection system
  • Available in three colors and three sizes
  • Modular adapter system fits most professional wireless systems

Technical Specification

DPA Microphones 4066 CORE Omnidirectional Headset Microphone with 3-pin LEMO Connector for Sennheiser Wireless (Small)

  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser
  • Frequency response: 20 Hz-20 kHz
  • Effective frequency range: ±2 dB
  • Soft boost grid: 40 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz
  • High boost grid: 40 Hz - 20 kHz, 10 dB boost at 12 kHz
  • Rated output impedance: 30-40 Ohm
  • Cable drive capability: Up to 984 ft. with DAD6001-BC XLR adapter
  • Power supply for wireless systems: Min. 5 V - max, 10 V through DPA adapter
  • Current consumption: Typ. 1.5 mA (microphone), 3.5 mA with DAD6001-BC XLR adapter
  • Connector: MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
  • Weight: 0.03 lb. including cable and MicroDot connector
  • Microphone diameter: 0.21 in.
  • Cable length: 3.9 ft.
  • Cable diameter: 0.06 in.
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
