Item #1566430 Model #4080-DC-D-B00

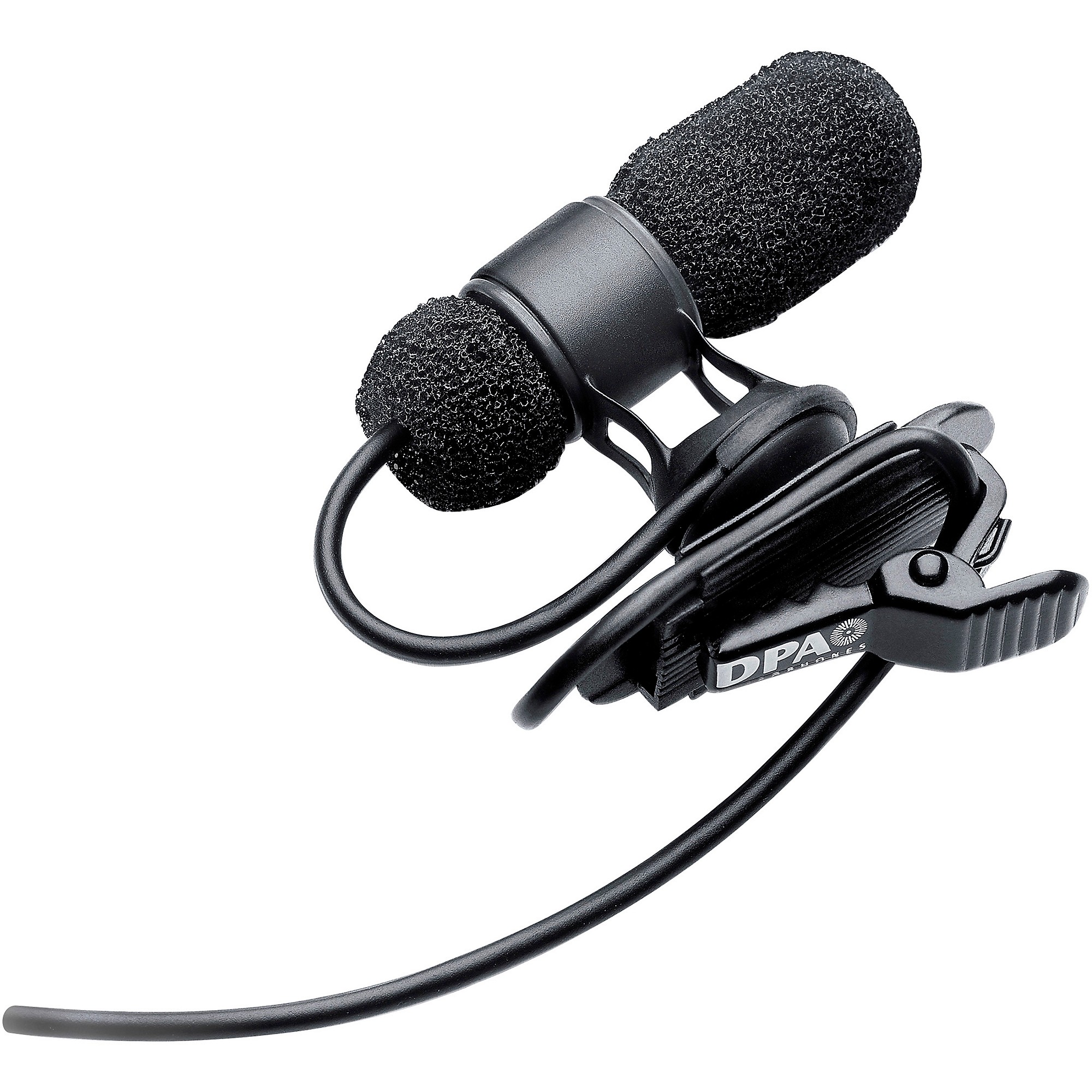

DPA Microphones 4080 CORE Cardioid Lavalier Microphone with MicroDot Connector Black

$650.00

Availability
Delivery
Out of stock
Pickup In-Store
Choose Store

This item is backordered but it is available to reserve now. You will not be charged until the item ships.

Email me when in stock

Save to Wishlist

Omnidirection lav mic for capturing pristine vocals.

The DPA 4080 cardioid lavalier captures the human voice with an unusually high degree of definition. This mic offers maximum side rejection and excellent sonic focus on the subject. It is designed for broadcast, conference and other live performances both in the studio and in the field.
Specifications
  • Directional pattern: Cardioid
  • Principle of operation: Pressure gradient
  • Cartridge type: Pre-polarized condenser
  • Frequency response:20 Hz - 20 kHz
  • Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
  • Distortion, THD < 1% - CORE:126 dB SPL RMS, 129 dB SPL peak
  • Dynamic range:Typ. 100 dB
  • Max. SPL, THD 10%:134 dB SPL peak
  • Rated output impedance:30 - 40 Ω
  • Cable drive capability:Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
    • Power supply (for full performance)
    • For wireless systems: Min. 5 V - max. 10 V through DPA adapter
    • With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
    • Current consumption:Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
    • Connector:MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
    Polarity
    • Positively increasing sound pressure produces positive going voltage on MicroDot pin
    • Temperature range: -40°C to 45°C (-40°F to 113°F)
    • Relative humidity (RH): Up to 90%

    Features

    • Excellent speech reproduction
    • Discreet, compact design
    • Fits both left and right buttoned shirts
    • Delivered with both black and white pop filters
    • Modular adapter system fits most professional wireless systems
