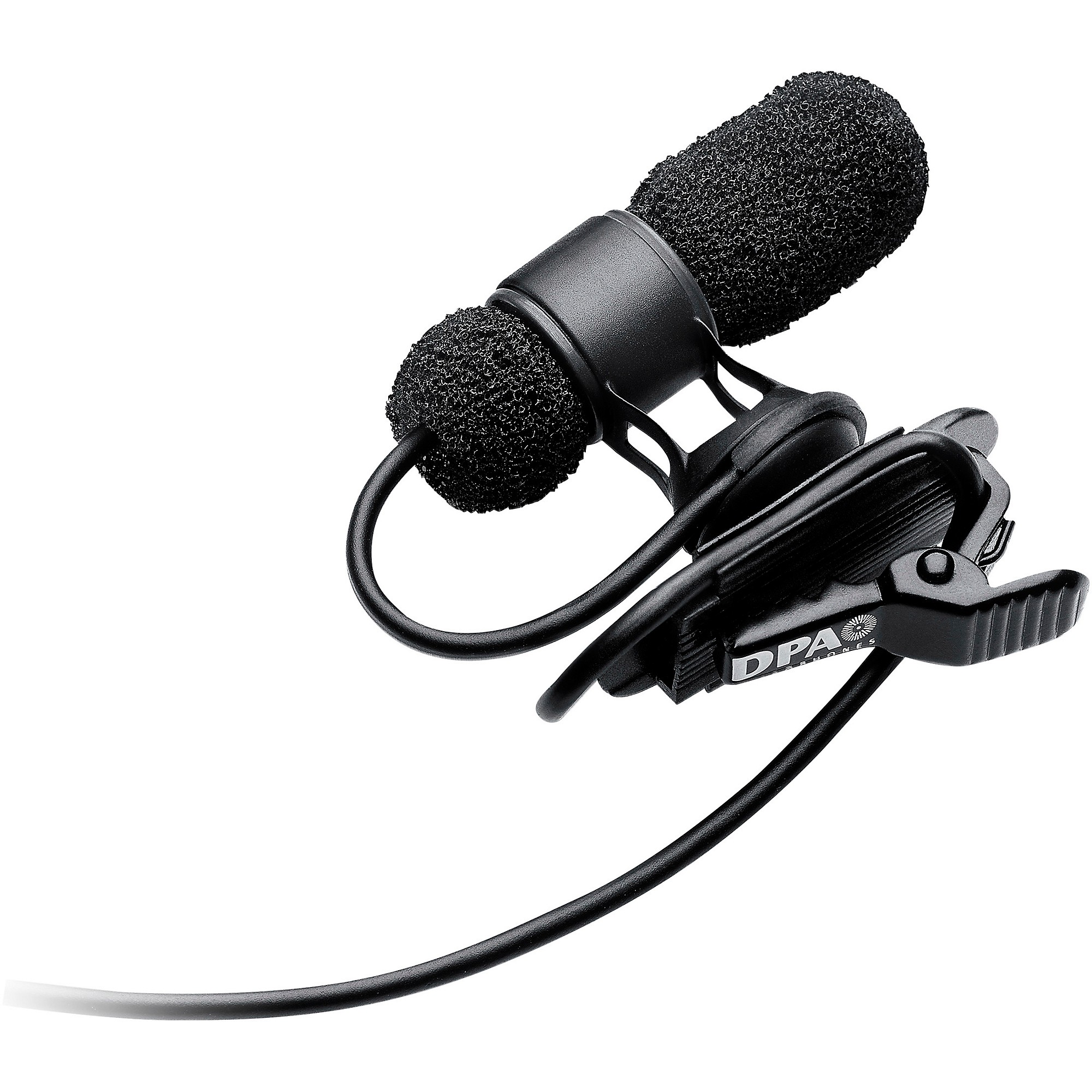

DPA Microphones 4080 CORE Cardioid Lavalier Microphone with Mini-Jack Connector for Sennheiser Wireless

  • Item # 1566437
  • Model # 4080-DC-D-B34

The DPA 4080 cardioid lavalier captures the human voice with an unusually high degree of definition. This mic offers maximum side rejection and excellent sonic focus on the subject. It is designed for… Learn More

$705.00

Reserve Now! This item is backordered but it is available to reserve now. You will not be charged until the item ships.

Ship to Store

2-7 business days

Omnidirection lavalier mic for capturing pristine vocals.

The DPA 4080 cardioid lavalier captures the human voice with an unusually high degree of definition. This mic offers maximum side rejection and excellent sonic focus on the subject. It is designed for broadcast, conference and other live performances both in the studio and in the field. Order the 4080 CORE lavalier microphone today.

Features

  • Excellent speech reproduction
  • Discreet, compact design
  • Fits both left and right buttoned shirts
  • Delivered with both black and white pop filters
  • Modular adapter system fits most professional wireless systems

Technical Specification

DPA Microphones 4080 CORE Cardioid Lavalier Microphone with Mini-Jack Connector for Sennheiser Wireless

  • Directional pattern: Cardioid
  • Principle of operation: Pressure gradient
  • Cartridge type: Pre-polarized condenser
  • Frequency response:20 Hz - 20 kHz
  • Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
  • Distortion, THD < 1% - CORE:126 dB SPL RMS, 129 dB SPL peak
  • Dynamic range:Typ. 100 dB
  • Max. SPL, THD 10%:134 dB SPL peak
  • Rated output impedance:30 - 40 Ω
  • Cable drive capability:Up to 300 m (984 ft) with DAD6001-BC XLR Adapter

Power supply (for full performance)

  • For wireless systems: Min. 5 V - max. 10 V through DPA adapter
  • With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
  • Current consumption:Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
  • Connector:MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack

Polarity

  • Positively increasing sound pressure produces positive going voltage on MicroDot pin
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90%
