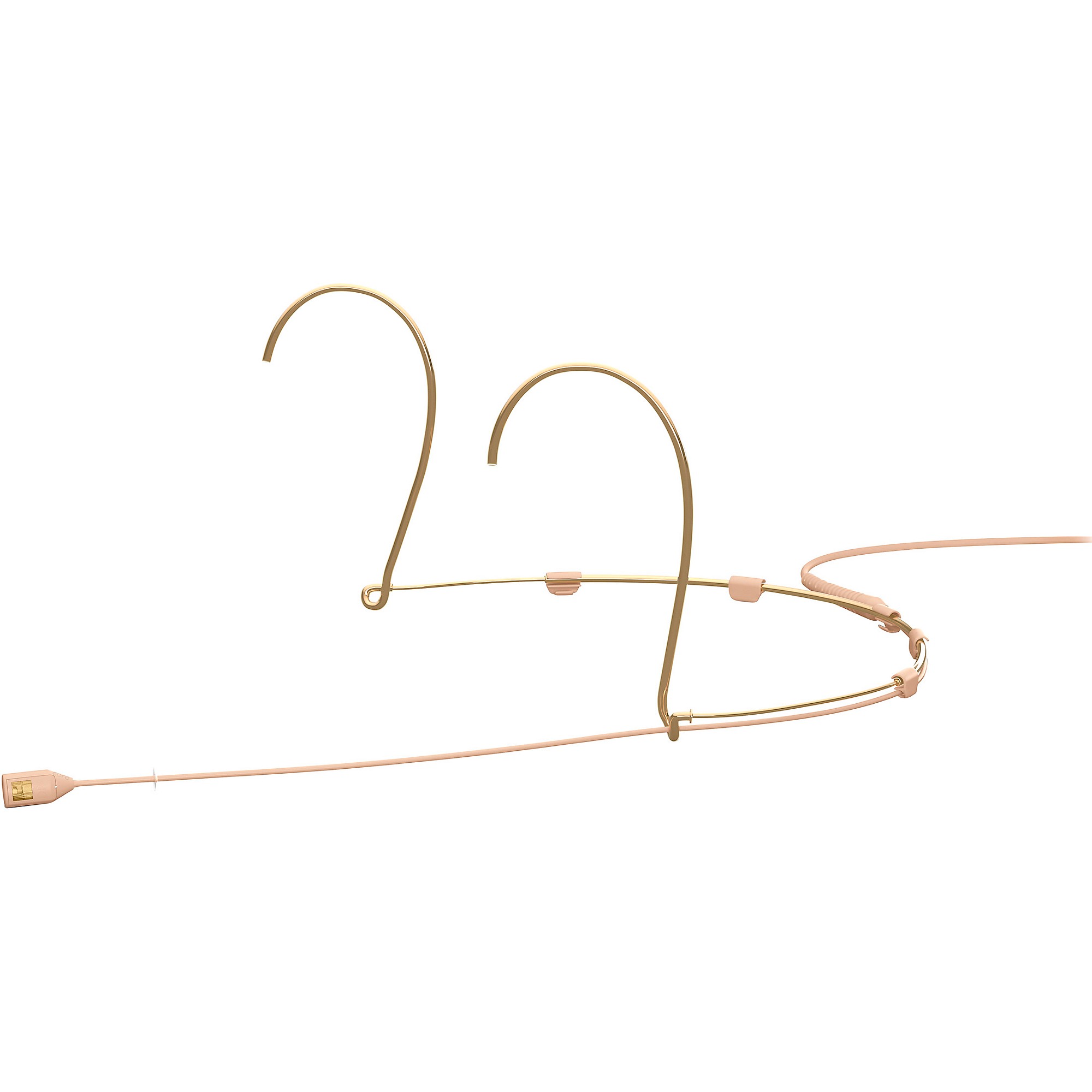

DPA Microphones 4088 CORE Directional Headset Microphone with MicroDot Connector (Small)

  • Item # 1566494
  • Model # 4088-DC-A-C00-LH-S

The 4088 CORE Directional headset microphone with MicroDot connector (small) from DPA Microphones has a smooth and elegant design, making it a practically invisible head-word true cardioid microphone.… Learn More

$815.00

Ship to Store

2-7 business days

A dual-ear design that provides discreet use.

The 4088 CORE Directional headset microphone with MicroDot connector (small) from DPA Microphones has a smooth and elegant design, making it a practically invisible head-word true cardioid microphone. This microphone has a secure, dual-ear design that can be used for various performing talent applications with a small 0.25 in. diameter, which allows for discreet use. It only weighs 0.03 lb. and is very comfortable when worn for long periods. It provides excellent off-axis rejection in high-SPL situations and can efficiently suppresses distant sound sources making it perfect for demanding live performance environments where background noise and feedback are concerns. The bass response is designed for optimal linearity at 1 in. from the sound source. Order the 4088 CORE Directional Headset Microphone with MicroDot Connector (Small) today.

Features

  • Pristine audio quality
  • Lightweight and flexible
  • Easy mounting to the left or right
  • Resistant to humidity
  • Flexible adapter system fits most professional wireless systems

Technical Specification

DPA Microphones 4088 CORE Directional Headset Microphone with MicroDot Connector (Small)

  • Directional pattern: Cardioid
  • Principle of operation: Pressure gradient
  • Cartridge type: Pre-polarized condenser
  • Frequency response: 20 Hz-20 kHz
  • Rated output impedance: 30-40 ohm
  • Cable drive capability: Up to 984 ft. with DAD6001-BC XLR adapter
  • Power supply for wireless systems: Min. 5 V, max. 10 V through DPA adapter
  • Current consumption: Typ. 1.5 mA (microphone), 3.5 mA with DAD6001-BC XLR adapter
  • Connector: MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
  • Weight: 0.03 lb. including cable and MicroDot connector
  • Microphone diameter: 0.21 in.
  • Microphone length: 0.5 in
  • Cable length: 3.9 ft
  • Cable diameter: 0.06 in.
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
