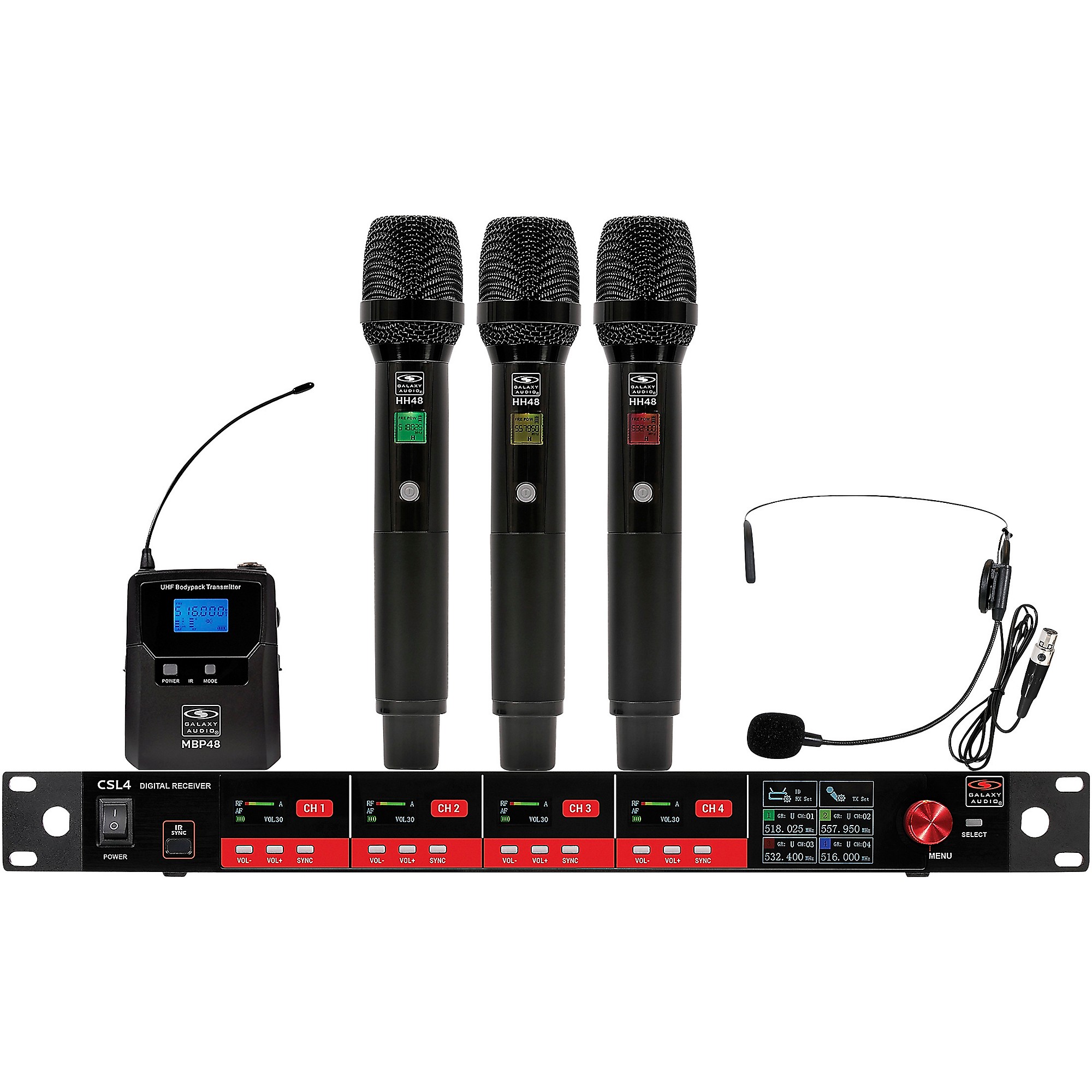

Some live productions demand the flexibility of handheld vocal microphones alongside the freedom of a hands-free headset system—all while maintaining dependable wireless performance across every channel. The Galaxy Audio CSL4-HHHSM 4-channel digital UHF wireless microphone system is designed for exactly those mixed-use environments, combining four independent digital UHF True-Diversity wireless channels into a streamlined 1U rackmount solution built for busy stages and installed sound applications. This configuration includes one CSL4 quad-channel receiver, three HH48 handheld dynamic cardioid microphone transmitters, one MBP48 bodypack transmitter paired with an HS13-UBK-GAL headset microphone, antennas, power supply, combined-output cable and quick-start guide for a complete performance-ready wireless setup. Features like auto frequency scanning, RF spectrum analysis, IR sync, customizable LCD displays and onboard 7-band EQ per channel simplify operation while delivering stable, professional-grade wireless audio.
Four Channels of Digital UHF Wireless Performance
The CSL4 receiver combines four fully independent digital True-Diversity wireless channels into a compact single-rack-space chassis designed for demanding multi-user environments. Operating in the M3 frequency range (516–558MHz), the system offers access to hundreds of selectable frequencies with support for multiple simultaneous systems depending on the operating band. Auto frequency scanning and the integrated RF spectrum analyzer help quickly locate clean operating frequencies, while IR Sync instantly pairs transmitters to their assigned channels. With less than 3 ms latency, 32-bit encrypted digital modulation and operating range up to 300', the system delivers dependable low-noise audio performance even in crowded RF environments.
Handheld and Headset Flexibility for Live Performance
The three included HH48 handheld transmitters feature dynamic cardioid microphone capsules designed for focused vocal clarity and strong rejection of unwanted stage noise and feedback. Their LCD displays provide quick access to frequency, mute and battery status during live use. The included MBP48 bodypack transmitter paired with the HS13-UBK-GAL headset microphone adds a hands-free solution ideal for presenters, instructors, fitness applications, worship leaders and performers who require unrestricted movement on stage. The headset’s dual-ear wraparound design helps keep the microphone secure and comfortable during extended performances and active presentations.
Professional Connectivity and Expandable Operation
The CSL4 receiver provides balanced XLR outputs for each channel plus a summed unbalanced 1/4" output for simplified integration into mixers and installed sound systems. Integrated 7-band EQ processing per channel allows quick tonal adjustments directly from the receiver, while customizable LCD display colors help visually organize channels during live operation. The system can also expand with optional Galaxy Audio accessories including lavalier microphones, antenna distribution systems and directional antennas for larger wireless installations and advanced RF management. Compact, professional and highly adaptable, the CSL4-HHHSM delivers dependable mixed-transmitter wireless performance for a wide variety of live sound and presentation environments.
