Item #1551442 Model #P-28

Peluso Microphone Lab P-28 Vacuum Tube Small Diaphragm Condenser Microphone Kit Nickel

Sorry, this item is not available.

Ultra-quiet with warmth and character.

Peluso started designing the P-28 by looking at a couple of the best early tube SCD microphones. In 1954 & 1955 Neumann released the KM 54, while AKG released the C 28. They sought to recreate the low-end performance of the C 28 with the high-end qualities of the KM 54. They employed a similar sub-miniature triode tube to the one found in the KM 54. They designed the head grille construction in a style similar to that of the C 28. Under the easily removable head grille you will find a swappable capsule. A cardioid capsule is provided and other polar patterns are available. When designing the circuitry they wanted to meet the modern demand for an ultra quiet noise floor while delivering the warmth and character of these revered vintage microphones.They introduced a FET amplifier stage prior to the tube amplifier stage. This hybrid FET-tube combination delivers just what they were looking for; the quiet and reliability of a FET with the warmth and character of a tube. At the output stage they of course use a custom transformer to provide reliable balanced signal. This unique FET-tube SCD is one of the best sounding SCD microphones made in any time period. Put it up on drum overheads, on any stringed instrument, or in a Decca Tree with an orchestra to find out why engineers say this is one of the best microphones of the entire line.

The P-28 features heavy-duty 8-pin screw on cable connector. The large diameter pins in the screw on connector give a tight and secure cable connection designed to perform for a lifetime of use. Acoustically matched pairs available upon special request. Omni-directional capsules available upon special request.
  • Condenser Pressure Gradient w/ 18mm edge-terminated capsule
Frequency Range
  • 20Hz/24Khz
Polar Pattern
  • Cardioid (Omni available - Special Order)
  • 11 mv/pa
  • 200 ohms SPL: 141 dB
Equivalent Noise
  • 15 dB(A)
Tube Type
  • EF 732
Power Requirements
  • Dedicated Power Supply, 115V or 230V
  • 28mm x 184 mm
  • 300 g

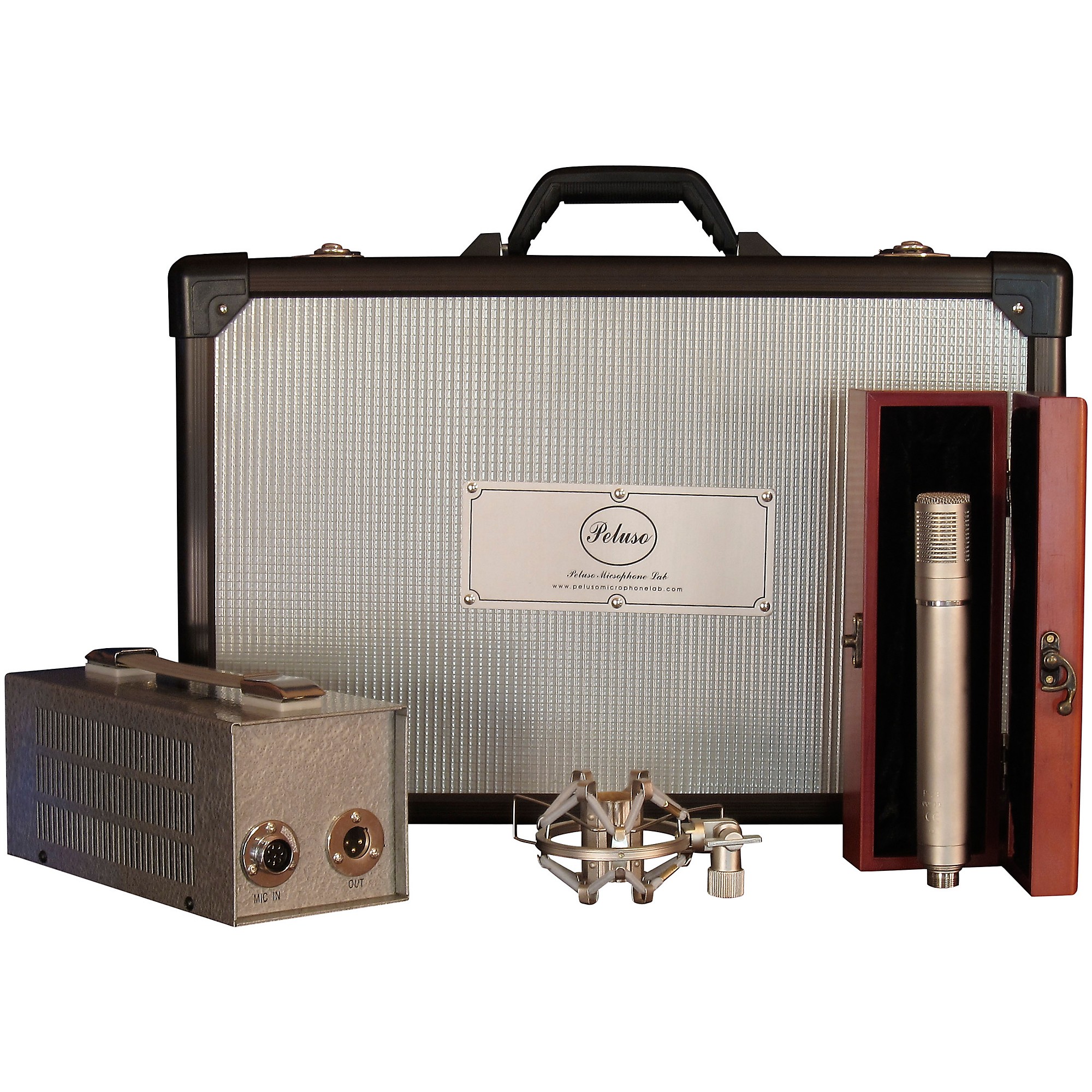

Microphone Kit includes
  • P-28 Microphone in a Wood Box
  • Power Supply
  • 8-Pin Screw-on Cable
  • Shock Mount
  • Flight Case.
