RF Venue Diversity Architectural Antenna for Wireless Microphones

  • Item # 1573597
  • Model # D-ARC

The Diversity Architectural Antenna by RF Venue is a high performance antenna system for wireless microphones. Featuring a slim profile enclosure, the Diversity Architectural Antenna can be installed… Learn More

$599.00

Reserve Now! This item is backordered but it is available to reserve now. You will not be charged until the item ships.

Ship to Store

2-7 business days

Versatile antenna system for wireless microphones.

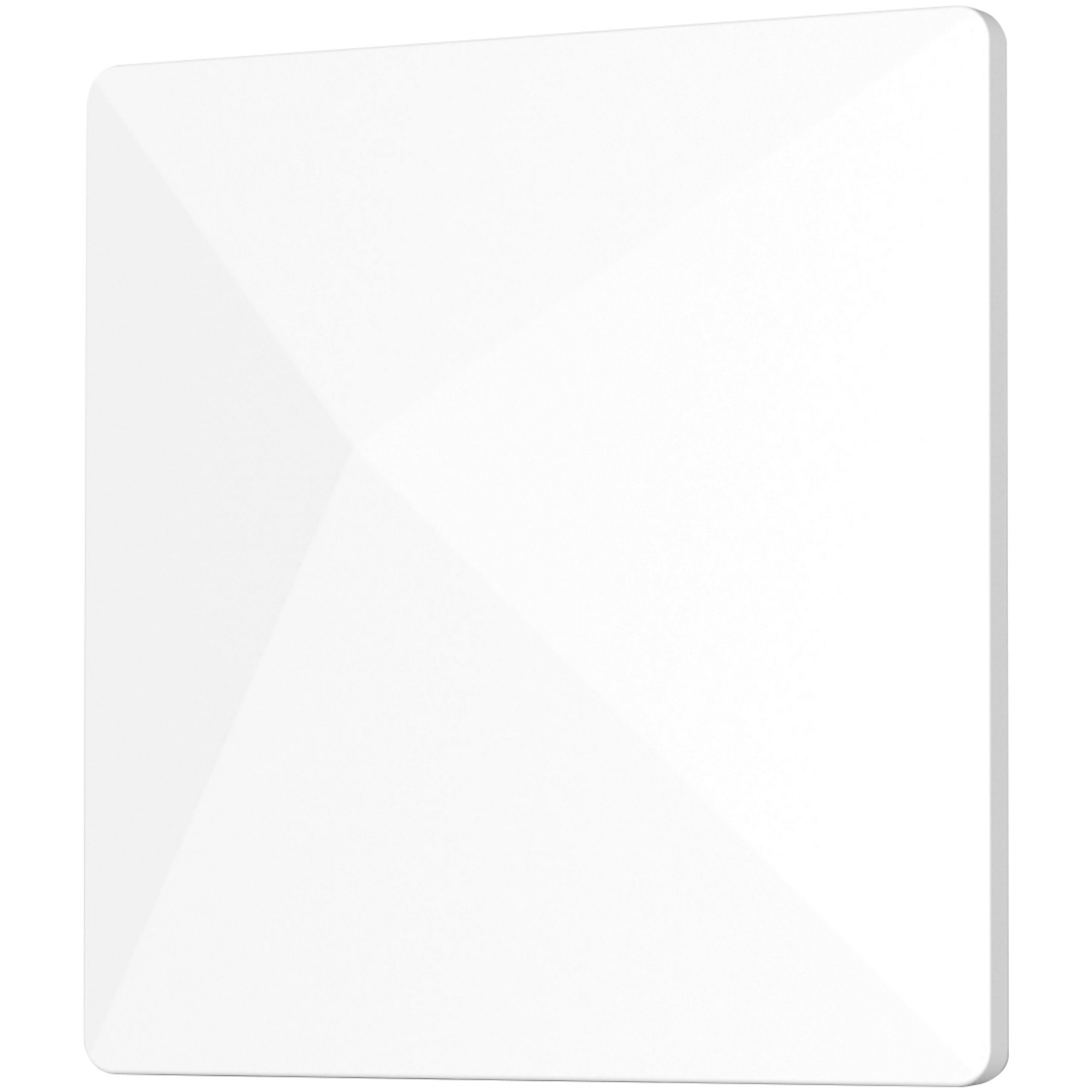

The Diversity Architectural Antenna by RF Venue is a high performance antenna system for wireless microphones. Featuring a slim profile enclosure, the Diversity Architectural Antenna can be installed in any position on a wall or ceiling and can be painted to match any interior. Using a unique patent-pending dual-feed antenna design, both A and B diversity connections are provided, so there's no need to install two separately spaced antennas resulting in a more professional look that room designers and architects appreciate.

Technical Specification

RF Venue Diversity Architectural Antenna for Wireless Microphones

  • Operating Frequencies: 470-616 MHz
  • Bandwidth: 146 MHz
  • Impedance: 50Ω
  • Average Return Loss: -6.4 dB
  • Pattern Type: Diversity Flood
  • Gain: 3 dBd
  • F/B Rati:o N/A
  • F/S Ratio: N/A
  • Polarization: Linear
