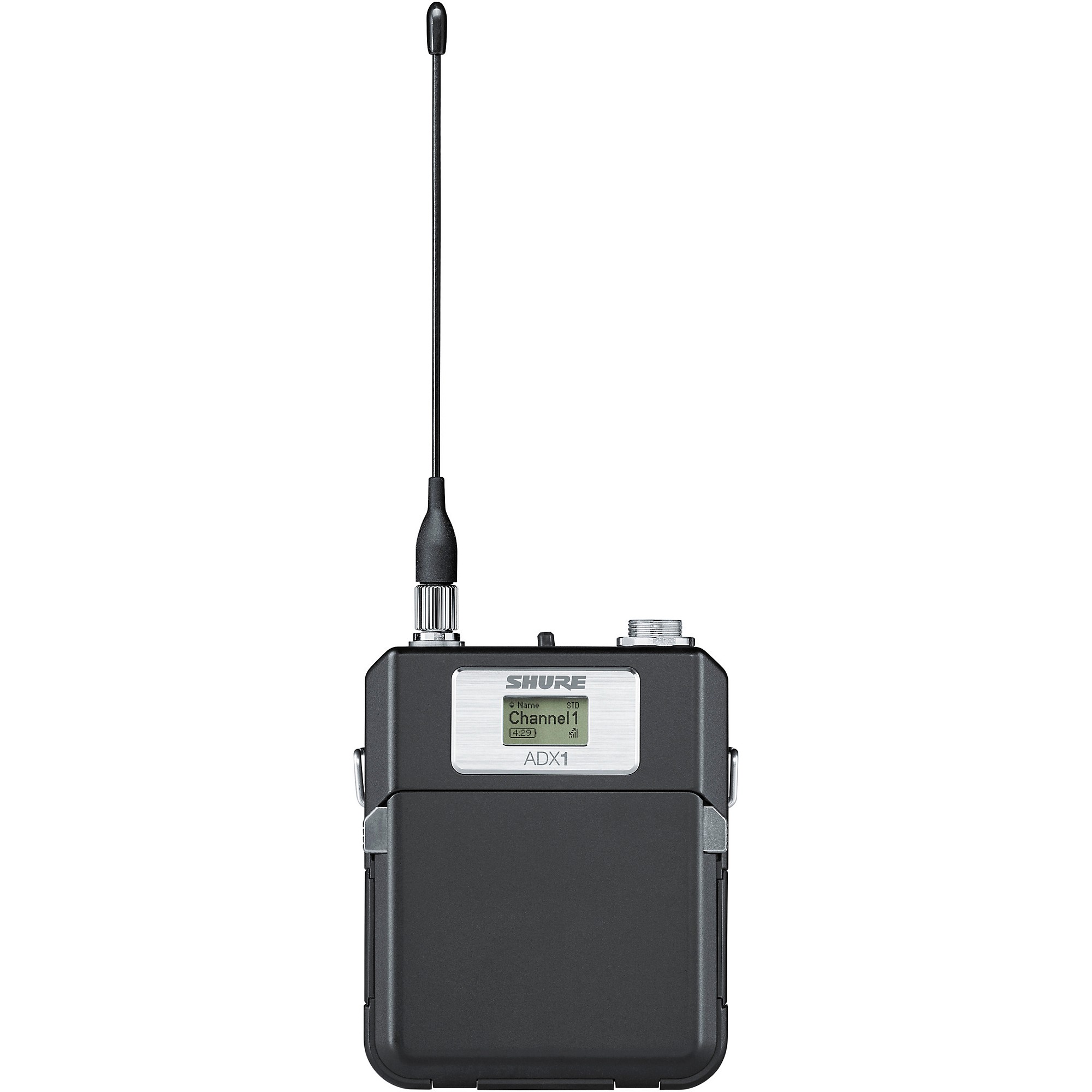

Shure Axient Digital ADX1 Bodypack Transmitter with TA4F connector

  • Item # 1535910
  • Model # ADX1=-G57

ADX1, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote… Learn More

$1,499.00

Availability: Order Now!

Ship to Store

2-7 business days

Communication is key with the ADX1.

ADX1, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth. Includes two SB910 rechargeable batteries. Set the stage with exception performance. Order today.

Features

  • Removable antenna and fully concealed buttons and switch
  • Two connector options: TA4 and LEMO3
  • Advanced control menu with powerful features
  • Durable, moisture-resistant, lightweight metal case
  • Up to 10 hours of runtime with SB910 rechargeable battery
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • External contacts for docked charging
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission

Technical Specification

Shure Axient Digital ADX1 Bodypack Transmitter with TA4F connector

RF Carrier Range

  • 470–960 MHz
  • Note: Varies by region (See Frequency Range and Ouput Power table)

Working Range

  • 100 m (330 ft)
  • Note: Actual range depends on RF signal absorption, reflection and interference.

RF Tuning Step Size 25 kHz, varies by region

Image Rejection

  • >70 dB, typical

RF Sensitivity

  • −98 dBm at 10-5 BER

Latency

  • Standard mode: 2.0 ms
  • High Density mode: 2.9 ms

Audio Frequency Response

  • AD1: 20 Hz – 20 kHz (±1 dB)
  • AD2: 20 Hz – 20 kHz (±1 dB)
  • ADX1: 20 Hz – 20 kHz (±1 dB)
  • ADX1M: 20 Hz – 20 kHz (±1 dB)
  • ADX2/ADX2FD: 20 Hz – 20 kHz (±1 dB)
  • Note: Dependent on microphone type

Audio Dynamic Range

  • A-weighted, typical, System Gain @ +10
  • XLR Analog Output: 120 dB (A-weighted); 117 (unweighted)
  • Dante Digital Output: 130 dB (A-weighted); 126 (unweighted)

Total Harmonic Distortion

  • −6 dBFS input, 1 kHz, System Gain @ +10
  • <0.01%

System Audio Polarity

  • Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.

Operating Temperature Range

  • −18 °C (0 °F) to 50 °C (122 °F)
  • Note: Battery characteristics may limit this range.

Storage Temperature Range

  • −29 °C (−20 °F) to 65 °C (149 °F)
  • Note: Battery characteristics may limit this range.
