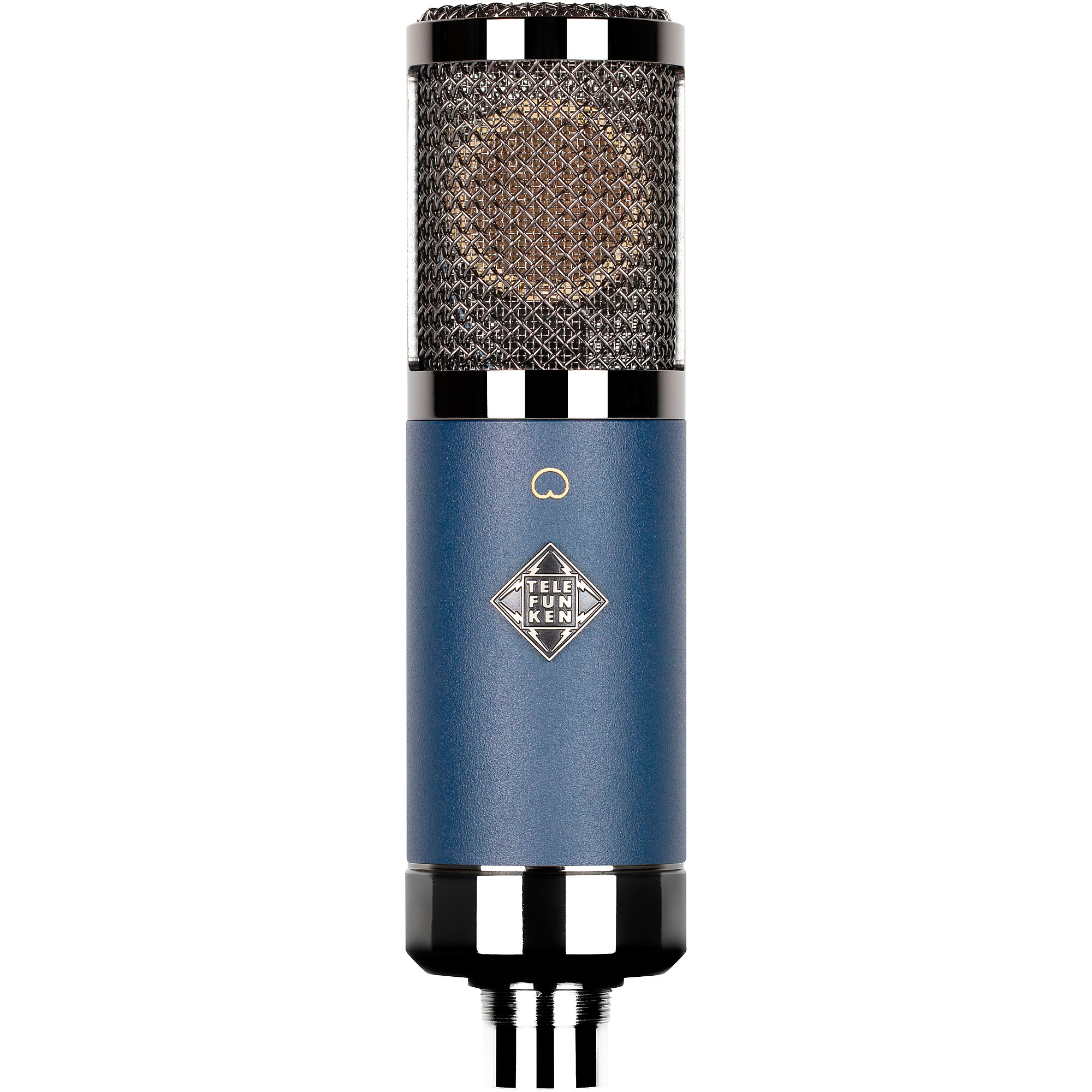

Telefunken TF11 Large Diaphragm Condenser Microphone

  • Item # 1541870
  • Model # SYTM-095

The Telefunken TF11 is a unique design with a new take on the large diaphragm phantom-powered condenser. Blending an Austrian-inspired voicing similar to the legendary C12 with modern FET high perform… Learn More

$895.00

Availability: In Stock & Ready to Ship

Ship to Store

2-7 business days

Versatile, portable and dependable.

The Telefunken TF11 is a unique design with a new take on the large diaphragm phantom-powered condenser. Blending an Austrian-inspired voicing similar to the legendary C12 with modern FET high performance, the TF11 features a beautifully open and detailed frequency response with exceptionally fast transient response, high SPL handling, and low self-noise. The compact, cardioid only TF11 is versatile, portable, and dependable for all recording environments from home to studio to stage. Countless sources including voice, drum overheads, and acoustic instruments excel with this microphone. For home, recording and the stage. Order today.

Features

  • Hand-assembled in the USA, the TF11 features a CK12-style edge terminated capsule, premium through-hole components, and a custom UK-made OEP/Carnhill output transformer

Technical Specification

Telefunken TF11 Large Diaphragm Condenser Microphone

  • Type: FET Condenser
  • Polar Pattern: Cardioid
  • Frequency Range: 20 Hz - 20 kHz, ±3 dB
  • Power Source: +48V Phantom Power
  • Capsule:TK51S - Edge Terminated Large Diaphragm, Single Membrane
  • Tube: n/a
  • Transformer: OEP/Carnhill T218
  • Sensitivity: 14 mV/Pa, ±1 dB
  • THD at 1kHz, 1 Pa (Amplifier) : < 0.01%
  • Output Impedance: 110 Ω
  • Maximum SPL (for 1% THD) : ˃ 135 dB
  • S/N Ratio: 90dba
  • Self Noise (Amplifier): 4dba
  • Dimensions: 175 mm L x 46 mm Dia
  • Weight:545g
  • Included Accessories: Shock Mount, Stand Mount, Mic Sleeve, Mic Case
  • Power Supply: n/a
  • Cable: n/a
  • Shockmount: M 703 , M 782
  • Case: MC11
  • Box/Bag: MS01
