Sennheiser EW 300 G4-BASE SK-RC Wireless Bodypack Base Set

  • Item # 1554524
  • Model # 509667

Best choice for your business, top of the class in education. The G4 300 Series uses the power of an increased switching bandwidth of up to 88 MHz. New frequency ranges allow to operate multi-channel… Learn More

$829.00

Availability: Order Now!

Ship to Store

2-7 business days

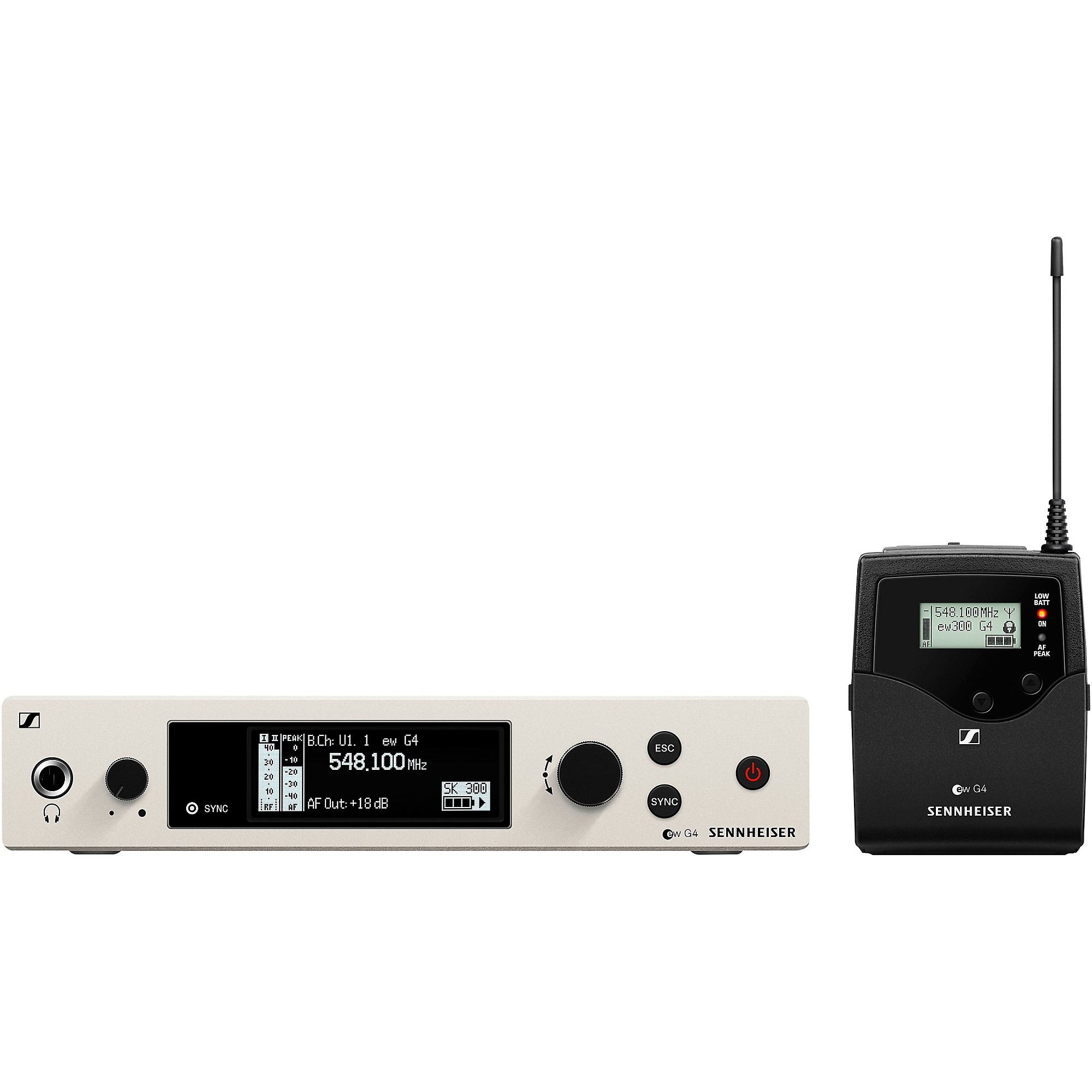

Wireless mic system with bodypack transmitter.

Best choice for your business, top of the class in education. The G4 300 Series uses the power of an increased switching bandwidth of up to 88 MHz. New frequency ranges allow to operate multi-channel setups with dozens of channels while securing reliable operation - despite digital dividend.The best choice if you need a bodypack transmitter and maximum flexibility. This base set consists of the stationary receiver as well as a bodypack transmitter. Just add your favorite clip-on or headset microphone. Order the Handheld Wireless System today.

Features

  • Easy to use, fast setup time
  • Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
  • Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
  • Up to 88 MHz bandwidth, up to 32 channels
  • Increased RF output power (10/30/50 mW)
  • Transmission Range: up to 100 meters / 330 feet
  • Compatible with wireless speaker system LSP 500 PRO
  • RC (remote control) switch available for the bodypack transmitter

What's in the Box

  • EM 300-500 G4 true diversity receiver
  • SK 300 G4
  • GA 3 rackmount set
  • power supply
  • 2 AA batteries
  • 2 rod antennas
  • quick guide
  • safety guide
  • manufacturer declaration sheet

Technical Specification

Sennheiser EW 300 G4-BASE SK-RC Wireless Bodypack Base Set

Modulation

  • Wideband FM

Frequency ranges

  • Aw+: 470 - 558 MHz
  • AS: 520 - 558 MHz
  • Gw1: 558 - 608 MHz
  • Gw: 558 - 626 MHz
  • GBw: 606 - 678 MHz
  • Bw: 526 - 698 MHz
  • Cw: 718 - 790 MHz
  • Dw: 790 - 865 MHz
  • JB: 806 - 810 MHz
  • K+: 925 - 937.5 MHz

Receiving frequencies

  • Max. 3520 receiving
  • frequencies, adjustable in
  • 25  kHz steps
  • 20 frequency banks, each
  • with up to 32 factory-preset
  • channels, no intermodulation
  • 6 frequency banks with
  • up to 32 programmable channels

Switching bandwidth

  • up to 88 MHz

Nominal/peak deviation

  • ±24 kHz / ±48 kHz

Receiver principle

  • True diversity
  • Sensitivity (with HDX, peak
  • deviation)
  • < 2.5 μV for 52 dBA eff S/N

Adjacent channel selection

  • Typically ≥ 75 dB

Intermodulation attenuation

  • Typically ≥ 70 dB

Blocking

  • ≥ 75 dB

Squelch

  • 5 to 25 dBμV in steps of 2 dB

Pilot tone

  • squelch Can be switched off

Antenna inputs

  • 2 BNC sockets

AF characteristics

Compander system

  • Sennheiser HDX
  • EQ presets (switchable,
  • act on line and monitor
  • outputs)
  • Preset 1: Flat
  • Preset 2:
  • Low Cut (-3 dB at 180 Hz)
  • Preset 3:
  • Low Cut/High Boost
  • (-3 dB at 180 Hz,
  • +6 dB at 10 kHz)
  • Preset 4:
  • High Boost
  • (+6 dB at 10 kHz)

Signal-to-noise ratio (1 mV, peak deviation)

  • ≥ 115 dBA

Total harmonic distortion

  • (THD)
  • ≤ 0.9 %
  • AF output voltage (at peak
  • deviation, 1 kHz AF)
  • 6.3 mm jack socket
  • (unbalanced): +12 dBu
  • XLR socket
  • (balanced): +18 dBu

Setting range “AF Out”

  • 48 dB (3 dB steps)

Overall device

Temperature range

  • -10 °C to +55 °C

Power supply

  • 12 V DC

Current consumption

  • 350 mA

Dimensions Approx.

  • 202 x 212 x 43 mm

Weight

  • Approx. 980 g
