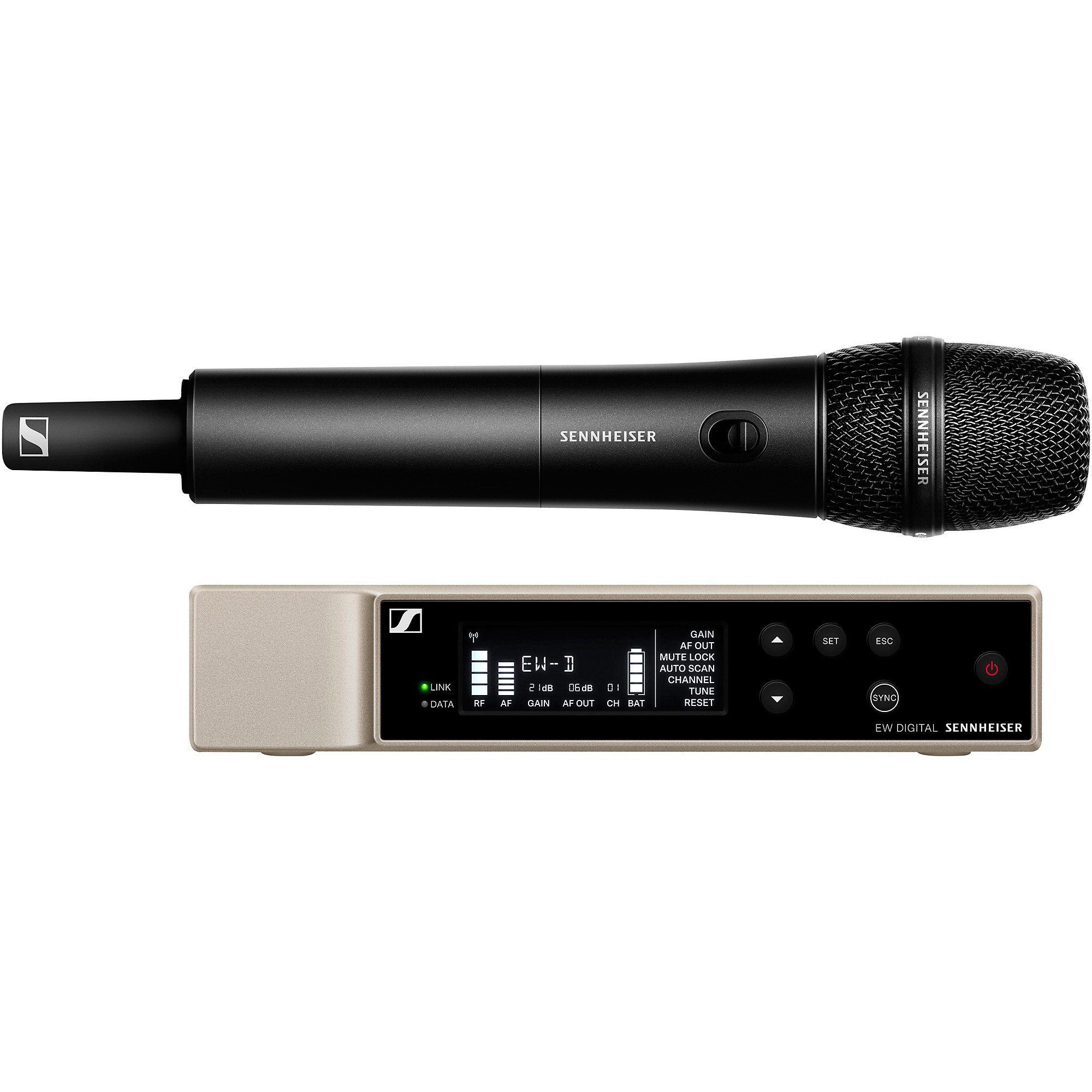

Sennheiser EW-D Evolution Wireless Digital System with 835-S Handheld Microphone

  • Item # 1552349
  • Model # 508752

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of… Learn More

$699.00

Ship to Store

2-7 business days

Mic and wireless transmitter set.

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch. For a stage mic without the hassle of cables and noise. Order today.

Features

  • Digital wireless eliminates noise, interference and static bursts
  • UHF transmission greatly enhances range, reliability and scalability
  • Mobile App streamlines setup and operation and eliminates complicated menu
  • Automated setup creates reliable connections with minimal time and effort
  • Up to 2,240 selectable frequencies
  • Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
  • 56 MHz Bandwidth will allow for up to 90 channels
  • Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range
  • EW-D EM rack receiver
  • EW-D SKM-S handheld transmitter
  • MMD 835 microphone module
  • MZQ 1 microphone clamp
  • 2 rod antennas
  • power supply with country adapters
  • rackmount set
  • 4 rubber feet
  • quick guide
  • safety guide
  • manufacturer declaration sheet

Technical Specification

Sennheiser EW-D Evolution Wireless Digital System with 835-S Handheld Microphone

System

Audio link

Frequency ranges

  • Q1-6 (470.2 - 526 MHz)
  • R1-6 (520 - 576 MHz)
  • R4-9 (552 - 607.8 MHz)
  • S1-7 (606.2 - 662 MHz)
  • S4-7 (630 - 662 MHz)
  • S7-10 (662 - 693.8 MHz)
  • U1/5 (823.2 - 831.8 MHz & 863.2 - 864.8 MHz)
  • V3-4 (925.2 - 937.3 MHz)
  • V3-4 (1785.2 - 1799.8 MHz)

Bluetooth Low Energy (BLE) frequency range

  • 2402 - 2480 MHz

Audio frequency response

  • 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
  • Audio THD
  • ≤ -60 dB for 1 kHz @ -3 dBfs input level

Operating temperature

  •  -10 °C - +55 °C (14 °F - 131 °F)

Relative humidity

  • 5 - 95 % (non-condensing)

EW-D SKM-S (Handheld Transmitter)

  • Input voltage
  •  2.0 - 4.35 V

Input current

  • < 300 mA

Power supply

  • 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack

Occupied bandwidth

  • 200 kHz

Transmit power (radiated)

  • Audio link 10 mW
  • ERP (Range Y1-3: 12 mW ERP)
  • BLE: max. 10 mW EIRP "

Dimensions (ø x l)

  • 50 x 268 mm (incl. MMD 835 microphone module)
  • 40 x 200 mm (without microphone module)"

Weight (without batteries)

  • approx. 304 g (incl. MMD 835 microphone module)
  • approx. 195 g (without microphone module)"

MMD 835 (Microphone Module)

Transducer principle

  • dynamic

Sensitivity

  • 2.1 mV/Pa

Sound pressure level

  • 154 dB

SPL Pick-up pattern

  • cardioid

Dimensions

  • 405 x 350 x 73 mm

Weight

  • 3.1 kg
