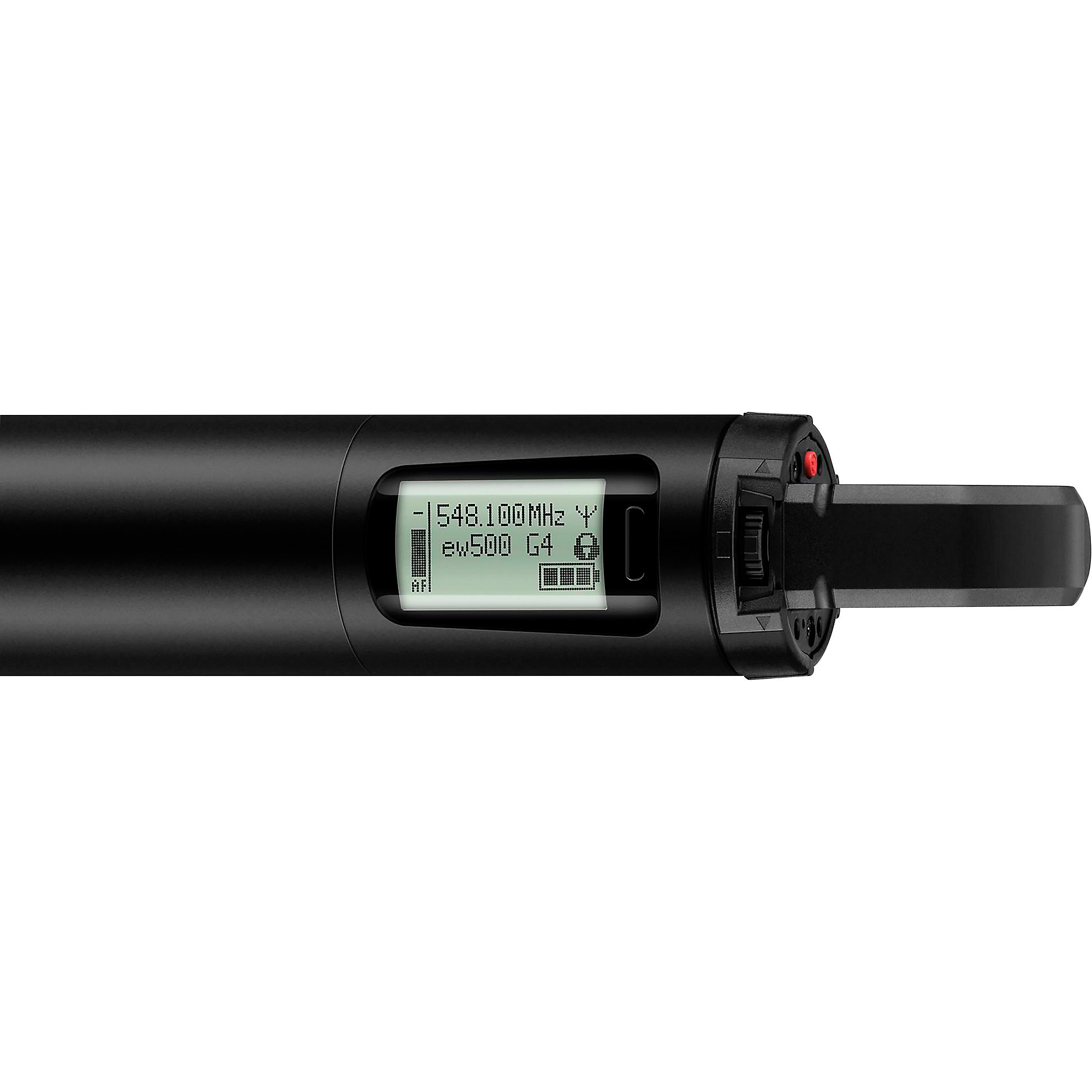

Sennheiser SKM 500 G4 Wireless Handheld Microphone Transmitter with Mute Switch, No Capsule

  • Item # 1554521
  • Model # 509784

Powerful handheld transmitter with a lightweight black aluminum housing, increased bandwidth and transmission power, ready to take the world’s biggest live stages. For evolution wireless G4 500 Series… Learn More

$399.95

Availability: Order Now!

Ship to Store

2-7 business days

Powerful handheld transmitter with a lightweight aluminum housing.

Powerful handheld transmitter with a lightweight black aluminum housing, increased bandwidth and transmission power, ready to take the world’s biggest live stages. For evolution wireless G4 500 Series systems. For increased bandwidth and transmission power. Order today.

Features

  • Your choice of Sennheiser‘s renowned state-of-the-art e 935, e 945, e 965 capsules
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 88 MHz bandwidth with 3520 selectable frequencies fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

Technical Specification

Sennheiser SKM 500 G4 Wireless Handheld Microphone Transmitter with Mute Switch, No Capsule

  • RF characteristics
  • Modulation
  • Wideband FM

Frequency Ranges

  • Aw+: 470 - 558 MHz
  • AS: 520 - 558 MHz
  • Gw1: 558 - 608 MHz
  • Gw: 558 - 626 MHz
  • GBw: 606 - 678 MHz
  • Bw: 526 - 698 MHz
  • Cw: 718 - 790 MHz
  • Dw: 790 - 865 MHz
  • JB: 806 - 810 MHz
  • K+: 925 - 937.5 MHz

Transmission frequencies

  • Max. 3520 frequencies, adjustable in 25 kHz steps
  • 20 frequency banks, each with up to 32 factory-pre- set channels, no intermodulation
  • 6 frequency banks with up to 32 programmable channels
  • Switching bandwidth
  • up to 88 MHz

Nominal/peak deviation

  • ±24 kHz / ±48 kHz

Frequency stability

  • ≤ ±15 ppm

RF output power at 50 Ω

  • switchable:
  • Low: typ. 10 mW
  • Standard: typ. 30 mW
  • High: typ. 50 mW
  • Pilot tone squelch
  • Can be switched off
  • AF characteristics
  • Compander system
  • Sennheiser HDX

AF frequency response

  • 80 – 18,000 Hz

Signal-to-noise ratio (1 mV, peak deviation)

  • ≥ 115 dBA

Total harmonic distortion (THD)

  • ≤ 0.9 %

Setting range for input sensitivity

  • 48 dB, adjustable in 6 dB steps

Overall device

Temperature range

  • -10 °C to +55 °C

Power supply

  • 2 AA batteries, 1.5 V or BA 2015 accupack

Nominal voltage

  • 3 V battery / 2.4 V rechargeable battery

Current consumption

  • at nominal voltage:
  • typ. 180 mA
  • with transmitter switched off: ≤ 25 μA
  • Operating time
  • Typically 8 h

Dimensions

  • Approx. Ø 50 x 265 mm

Weight (incl. batteries)

  • approx. 450 g
