Item #1572763 Model #QLXD2/K9HS=-V50

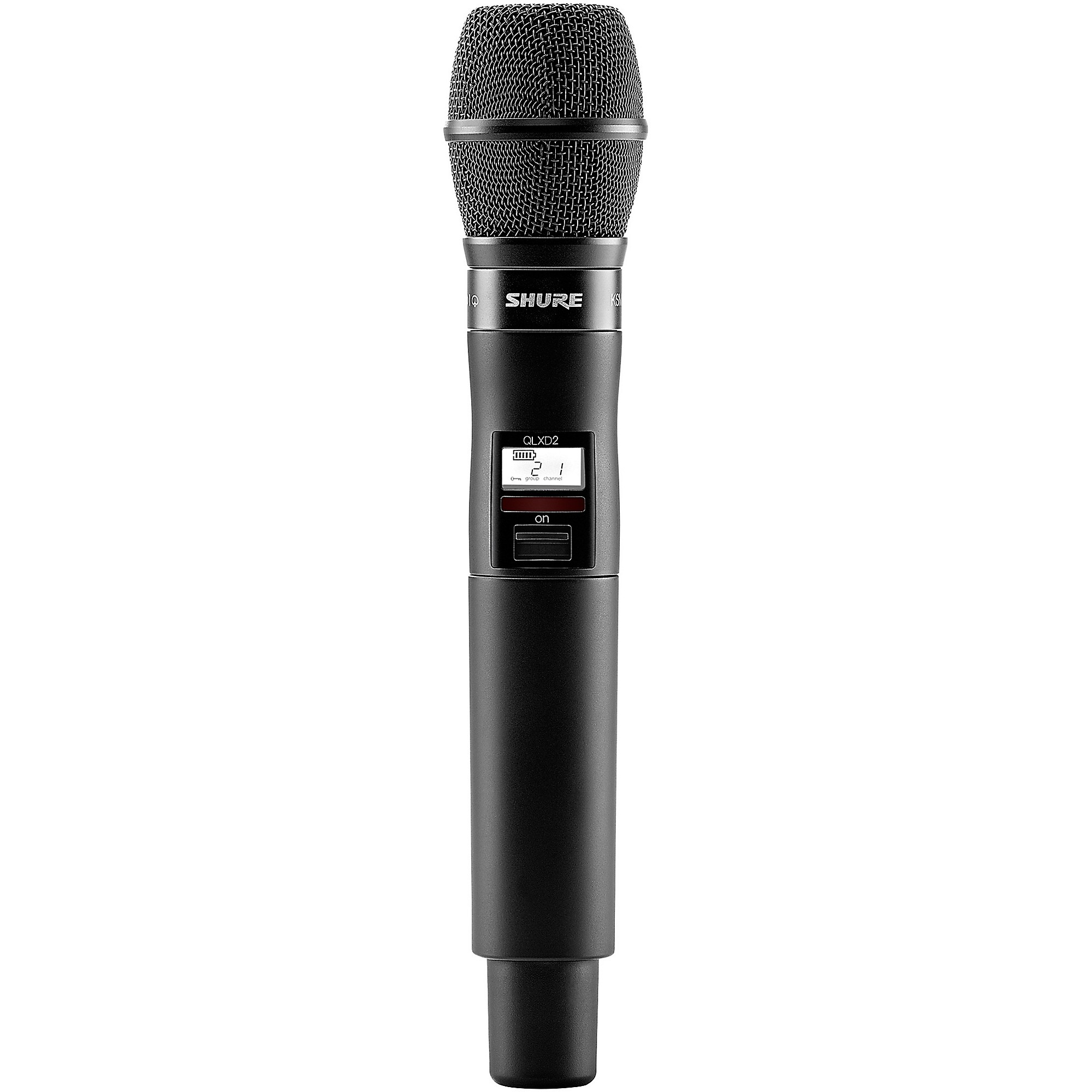

Shure QLXD2/K9HS=-V50 Handheld Transmitter With KSM9HS Microphone Band V50


In Stock
Pickup In-Store
Save to Wishlist

Ideal for wireless vocals in presentation spaces.

Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD2 handheld transmitter is ideal for wireless vocals in presentation spaces, music venues and houses of worship. Easy to use, the QLXD2 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330') range. All-metal construction ensures durability, and a wide selection of compatible microphone choices offer legendary Shure sound signatures.
  • Wireless Transmission: Digital UHF
  • RF Frequency Band: J50A: 572 to 608mHz—614 to 616mHz
  • RF Bandwidth: 44mHz
  • Frequency Step Size: 25kHz
  • RF Channel Scanning: Auto-Scan
  • Max. Operating Range: 330'/100.6 m
  • Sample Rate/Resolution: 48kHz/24-bit
  • Latency: <2.9 ms
  • Encryption: AES 256
  • Modulation: Proprietary
  • Form Factor: Handheld
  • RF Output Power: 1/10 mW
  • Audio I/O: None
  • Gain Range: 0 to 21dB (3dB steps)
  • Frequency Response: 30Hz to 20kHz
  • Sync Method: IR
  • Antenna: 1 x 1/4 Wave
  • Power Requirements: Battery
  • Battery Type: 2 x AA (Included) 1 x Shure SB900A (Not Included, Replaceable)
  • Approx. Battery Life: 9 Hours (Alkaline)
  • Display & Indicators 1 x Backlit LCD (Channel, Group, RF Output Power)
  • Housing: Aluminum
  • Dimensions: 2 x 10.1"/51 x 256 mm
  • Weight: 12.2 oz./347 g (without batteries)
  • Form Factor: Handheld Capsule
  • Sound Field: Mono
  • Capsule: Condenser
  • Polar Pattern: Hypercardioid, Subcardioid
  • Frequency Range: 50Hz to 20kHz
  • Maximum SPL: Hypercardioid: 150.8dB SPL
  • Sensitivity: Hypercardioid: -50.5 dBV/Pa


  • 20Hz to 20kHz frequency range with flat response (actual response is microphone dependent)
  • Interchangeable Shure microphone capsules, including the legendary SM58
  • AES 256-bit encryption for secure transmission
  • Over 120dB of dynamic range—no transmitter gain adjustment needed
  • 1, 10 mW selectable RF output power
  • Up to 9 hours continuous use with 2 x AA alkaline batteries
  • Optional Shure lithium-ion rechargeable battery provides up to 10 hours of continuous use and reports remaining runtime in hours and minutes
  • External charging contacts for docked charging
  • Backlit LCD with easy to navigate menu and controls
  • Selectable display mode showing group/channel, frequency or battery runtime
  • 100 meter (330') line-of-sight operating range
  • Rugged metal construction
  • Frequency and power lockout
